Maintenance
DeLaval voluntary milking system VMS
94897201.pdf2007-12-18
5

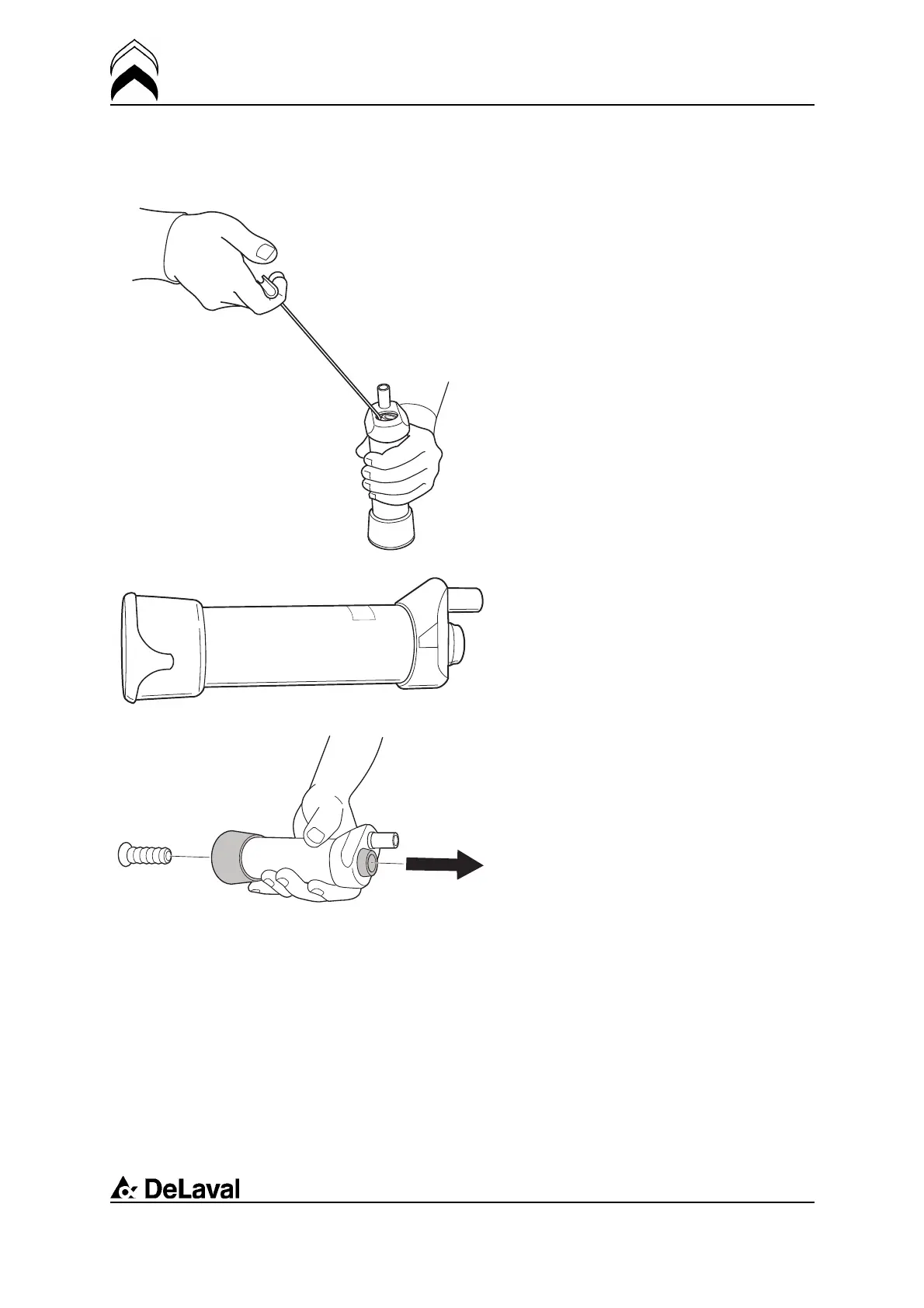

5. Remove the handle out of the liner and
through the hole of the teatcup. Make sure
that the metal rope lock is above the edge
of the teatcup. Pull the handle smoothly but
in one movement in an angle of 0 - 45
degrees until the liner is in the right position.
Note: Do not pull the handle straight up.
6
6. Check that the liner is installed as shown
in the picture.
7
7. Use the pipe tool to insert the connector
pipe.
127(198)
