4. The operation direction setting of 1st-15th step speed frequency: can use PLC program to
control. Please refer to Appendix D How to use PLC function for details.
5. The operation time setting of 1st-15th step speed frequency: can use PLC program to
control. Please refer to Appendix D How to use PLC function for details.
Operations:
Once the AC motor drive receives “RUN” command, it will operate by parameters settings and
PLC program till the 15th step speed frequency is completed.
 If it is repeat operation by PLC program, the AC motor drive will operate by the settings from
Pr.05.00ÎPr.05.01Î…. Î Pr.05.14ÎPr.05.00ÎPr.05.01..till the operation command is OFF.
 Related parameters: Pr.01.15(Jog Frequency), Pr.01.07(Output Frequency Upper Limit),
Pr.01.08(Output Frequency Lower Limit), Pr.04.05(Multi-function Input Terminal (MI3)),
Pr.04.06(Multi-function Input Terminal (MI4)), Pr.04.07(Multi-function Input Terminal (MI5)) and
Pr.04.08(Multi-function Input Terminal (MI6))
ON ON ON ON ON ON ON ON
ONONONON
ON
ON
ON
ON
ON
05.00
05.01
05.02
05.03
05.04
05.05
05.06
05.07
05.08
05.09
05.10
05.11
05.12
05.13
05.14
01.15
OFF
OFF
OFF
OFF
OFF
1234
5
6 7 8 9 10 11 12 13 14
15
Mul ti -function terminals
MI3~MI6
04.05~04.08
Frequency
Master Speed
JOG Freq.
2nd speed
( 2)MI3 to MI6
1st spee d
( to MI6 1)MI3
Jog Freq.

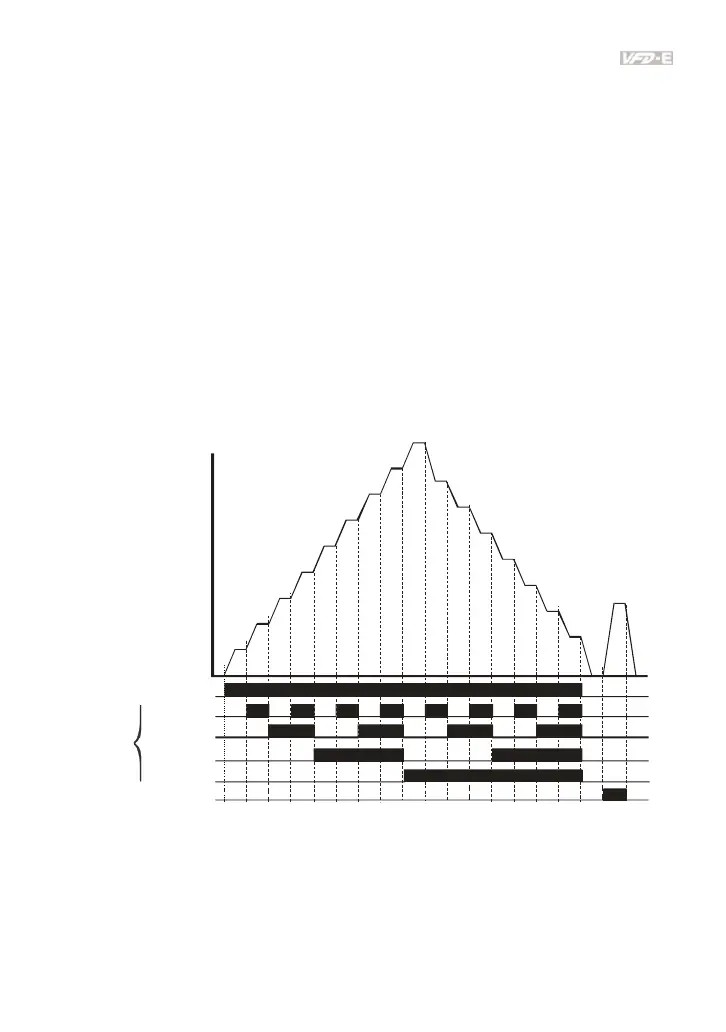

Multi-speed via External Terminals
