User's Guide
- 30 -

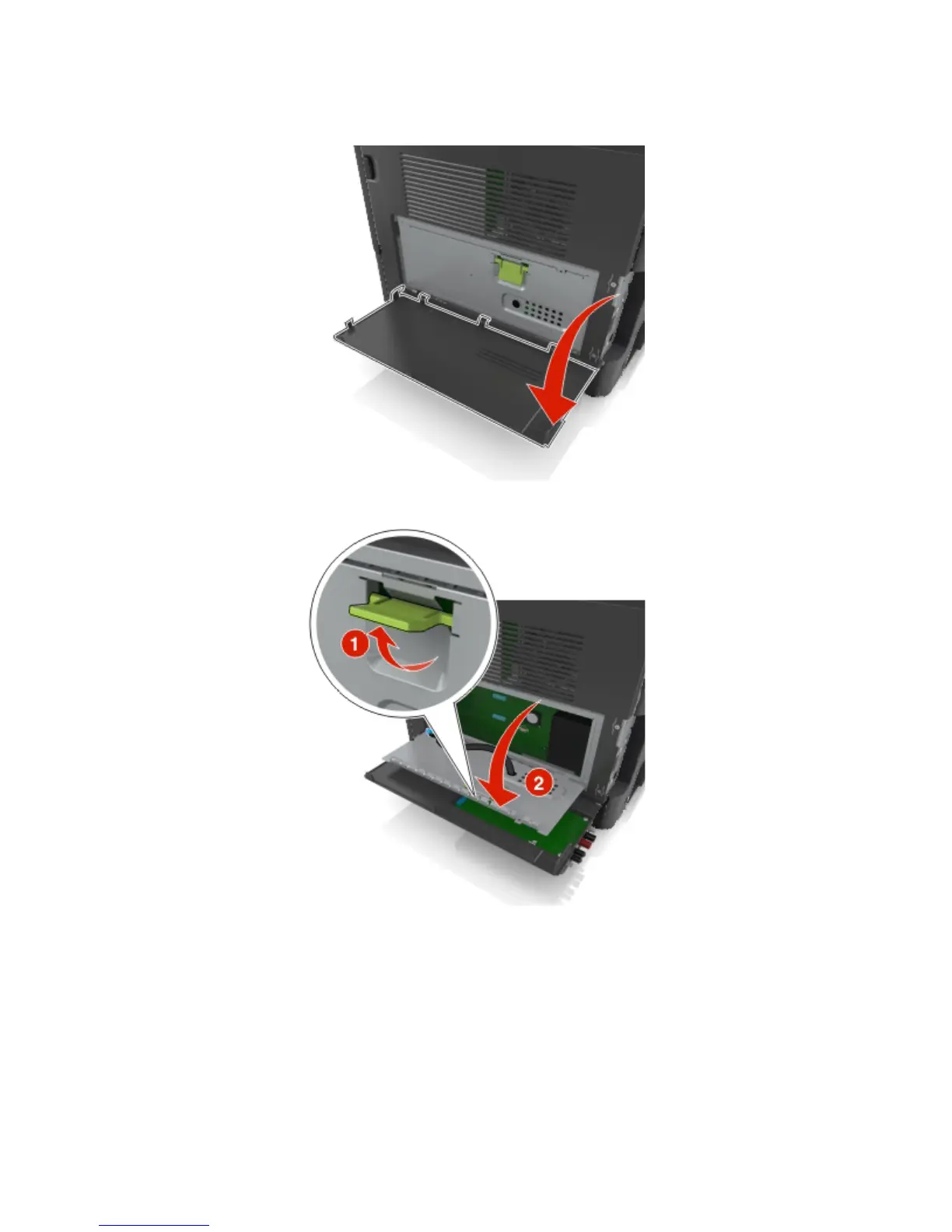

1. Open the controller board access door.
2. Open the controller board shield using the green handle.
3. Use the following illustration to locate the appropriate connector.
Warning—Potential Damage: Controller board electronic components are easily damaged by static
electricity. Touch something metal on the printer before touching any controller board electronic
components or connectors.
