2. Unpack the memory card.
Warning—Potential Damage: Do not touch the connection points along the edge of the card. Doing
so may cause damage.

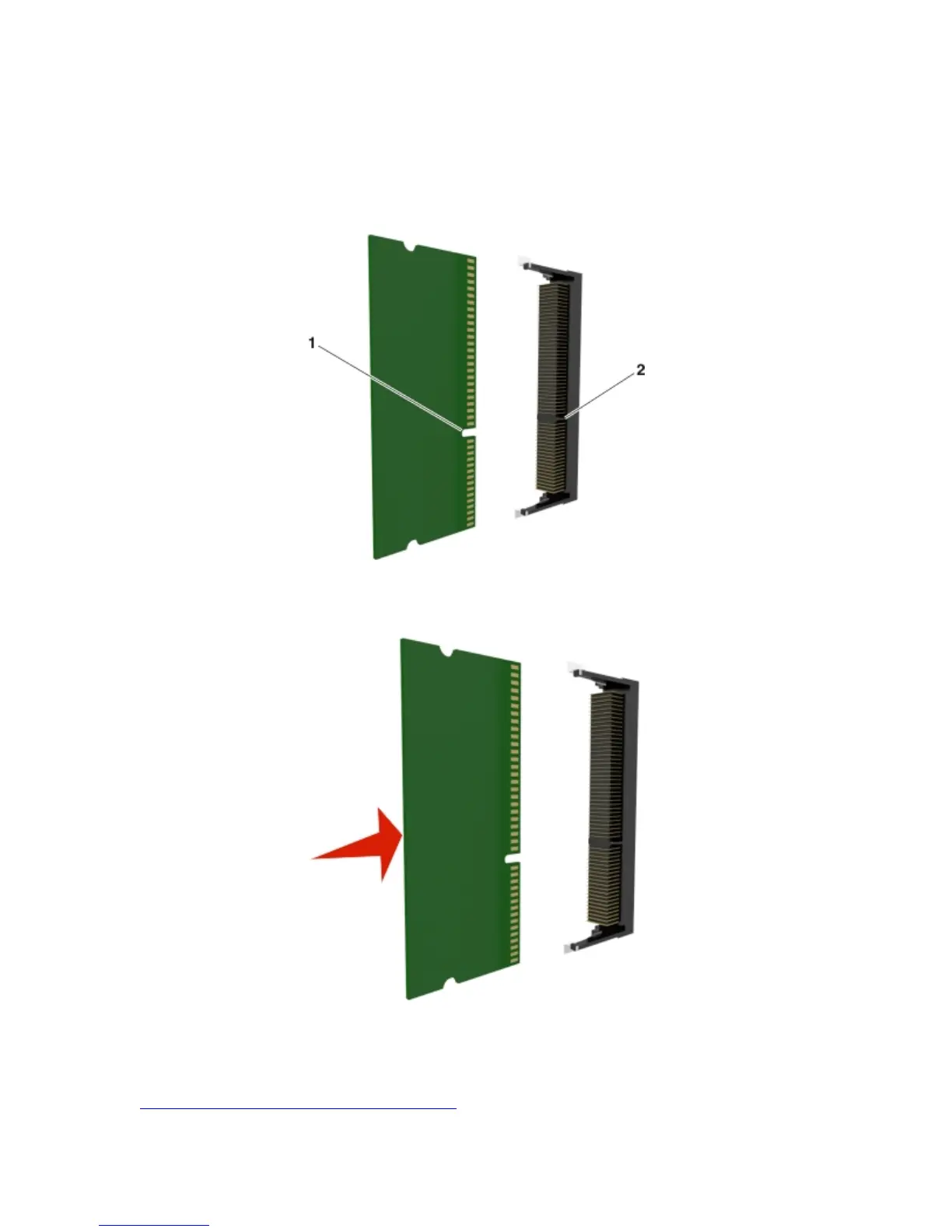

3. Align the notch (1) on the memory card with the ridge (2) on the connector.
4. Push the memory card straight into the connector, and then push the card toward the controller board
wall until it clicks into place.
5. Close the controller board shield, and then the controller board access door.
Note: When the printer software and any hardware options are installed, you may need to manually
add the options in the printer driver to make them available for print jobs. For more information, see
Updating available options in the printer driver.
