Develop ineo 4020

To Next Page

To Previous Page

User's Guide

- 42 -

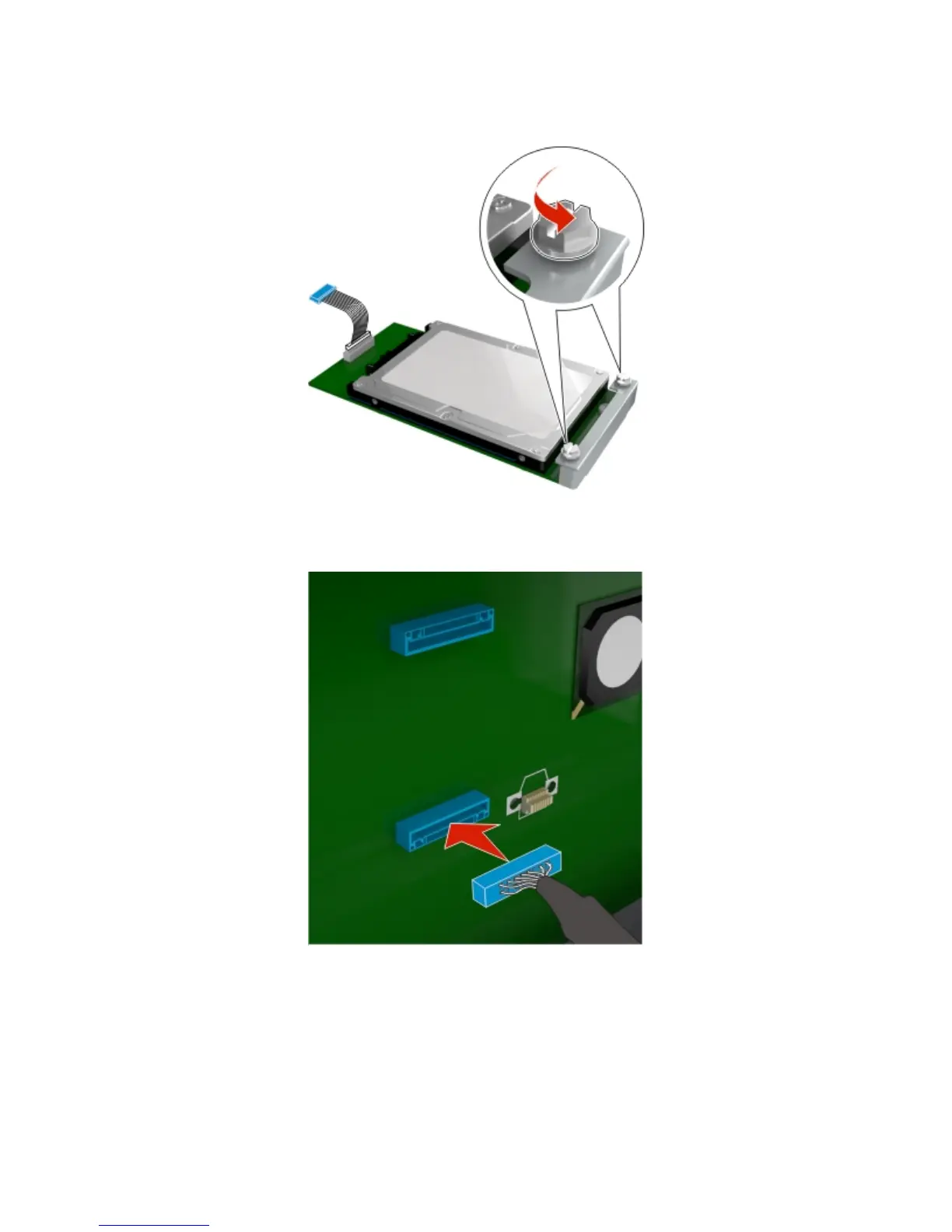

a. Using a flathead screwdriver, loosen the screws.

b. Insert the plug of the printer hard disk interface cable into the receptacle of the controller board.

Note: The plug and the receptacle are color-coded blue.

Main Page

Default Chapter2
- Table of Contents2
