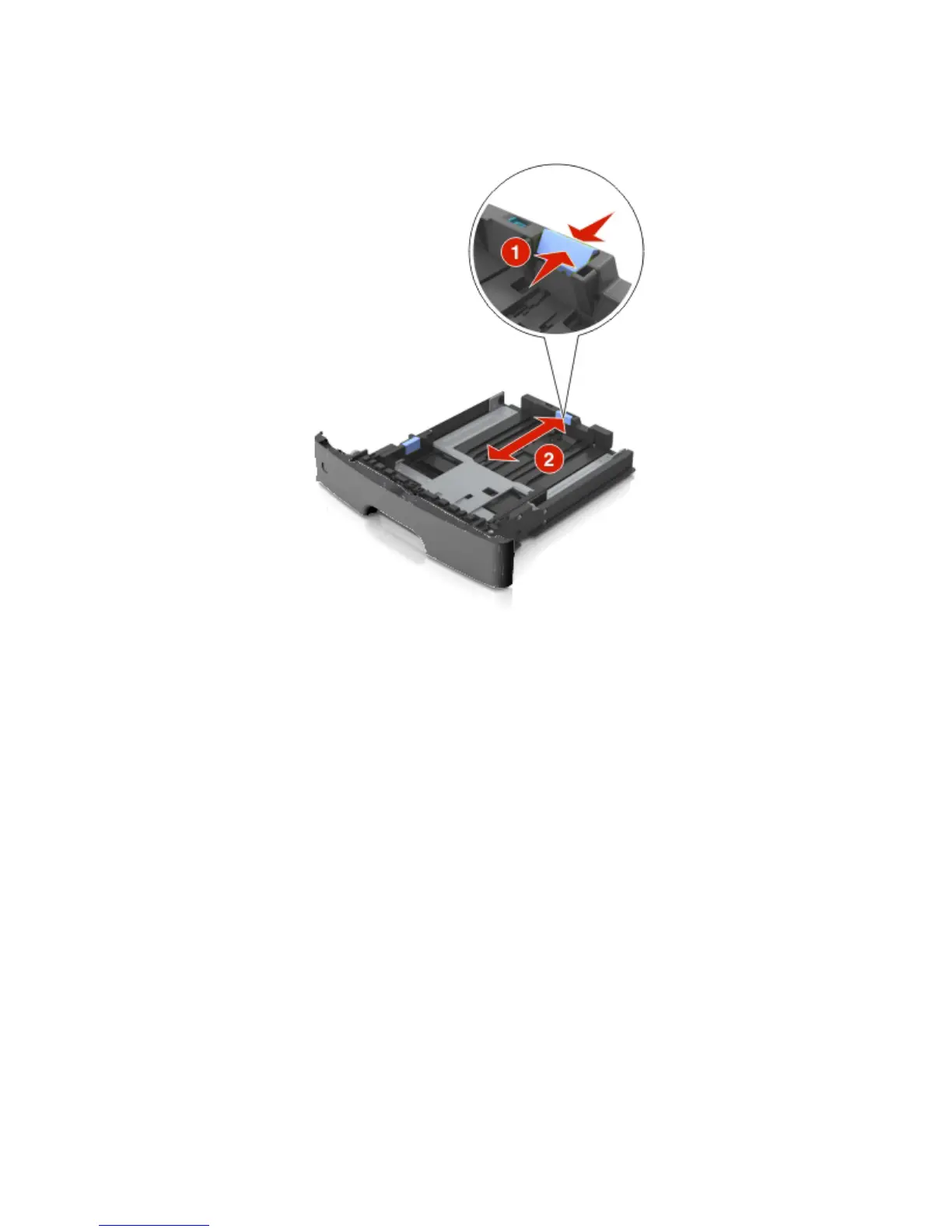

3. Unlock the length guide. Squeeze, and then slide the length guide tab to the correct position for the
size of the paper you are loading.
Notes:
- For some paper sizes like letter, legal, and A4, squeeze and slide the length guide tab backward
to accommodate their length.
- When loading legal-size paper, the length guide extends beyond the base leaving the paper
exposed to dust. To protect the paper from dust, you can purchase a dust cover separately. For
more information, contact technical support.
- If you are loading A6-size paper in the standard tray, then squeeze and then slide the length
guide tab toward the center of the tray to the A6-size position.
- Make sure the width and length guides are aligned with the paper size indicators on the bottom of
the tray.
