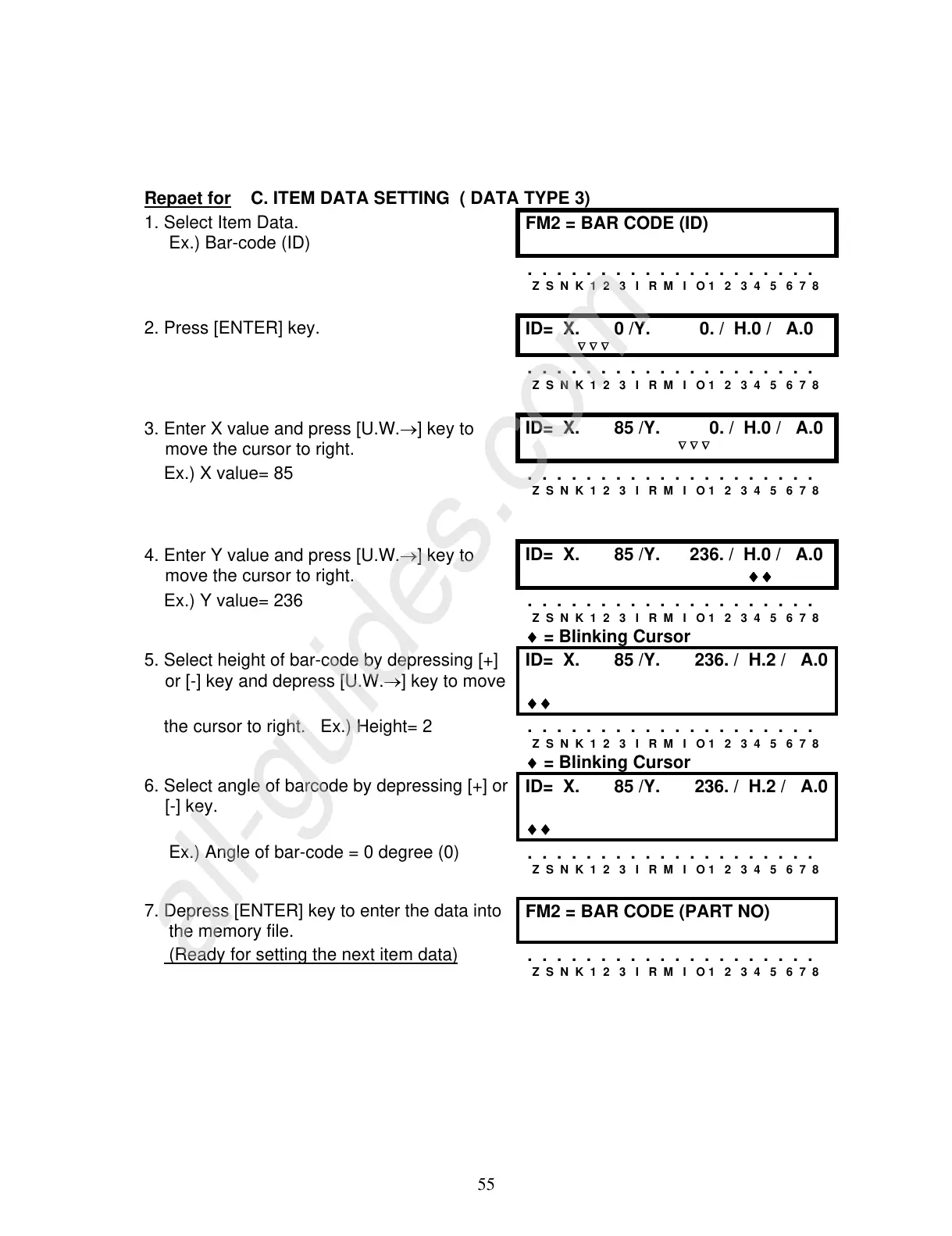

Repaet for C. ITEM DATA SETTING ( DATA TYPE 3)
1. Select Item Data.
Ex.) Bar-code (ID)
FM2 = BAR CODE (ID)
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
2. Press [ENTER] key.
ID= X. 0 /Y. 0. / H.0 / A.0
∇ ∇ ∇
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
3. Enter X value and press [U.W.→] key to
move the cursor to right.
ID= X. 85 /Y. 0. / H.0 / A.0
∇ ∇ ∇
Ex.) X value= 85
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
4. Enter Y value and press [U.W.→] key to
move the cursor to right.
ID= X. 85 /Y. 236. / H.0 / A.0
♦♦
Ex.) Y value= 236
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
♦ = Blinking Cursor
5. Select height of bar-code by depressing [+]
or [-] key and depress [U.W.→] key to move
ID= X. 85 /Y. 236. / H.2 / A.0
♦♦
the cursor to right. Ex.) Height= 2
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
♦ = Blinking Cursor
6. Select angle of barcode by depressing [+] or
[-] key.
ID= X. 85 /Y. 236. / H.2 / A.0
♦♦
Ex.) Angle of bar-code = 0 degree (0)
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
7. Depress [ENTER] key to enter the data into
the memory file.
FM2 = BAR CODE (PART NO)
(Ready for setting the next item data)
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
