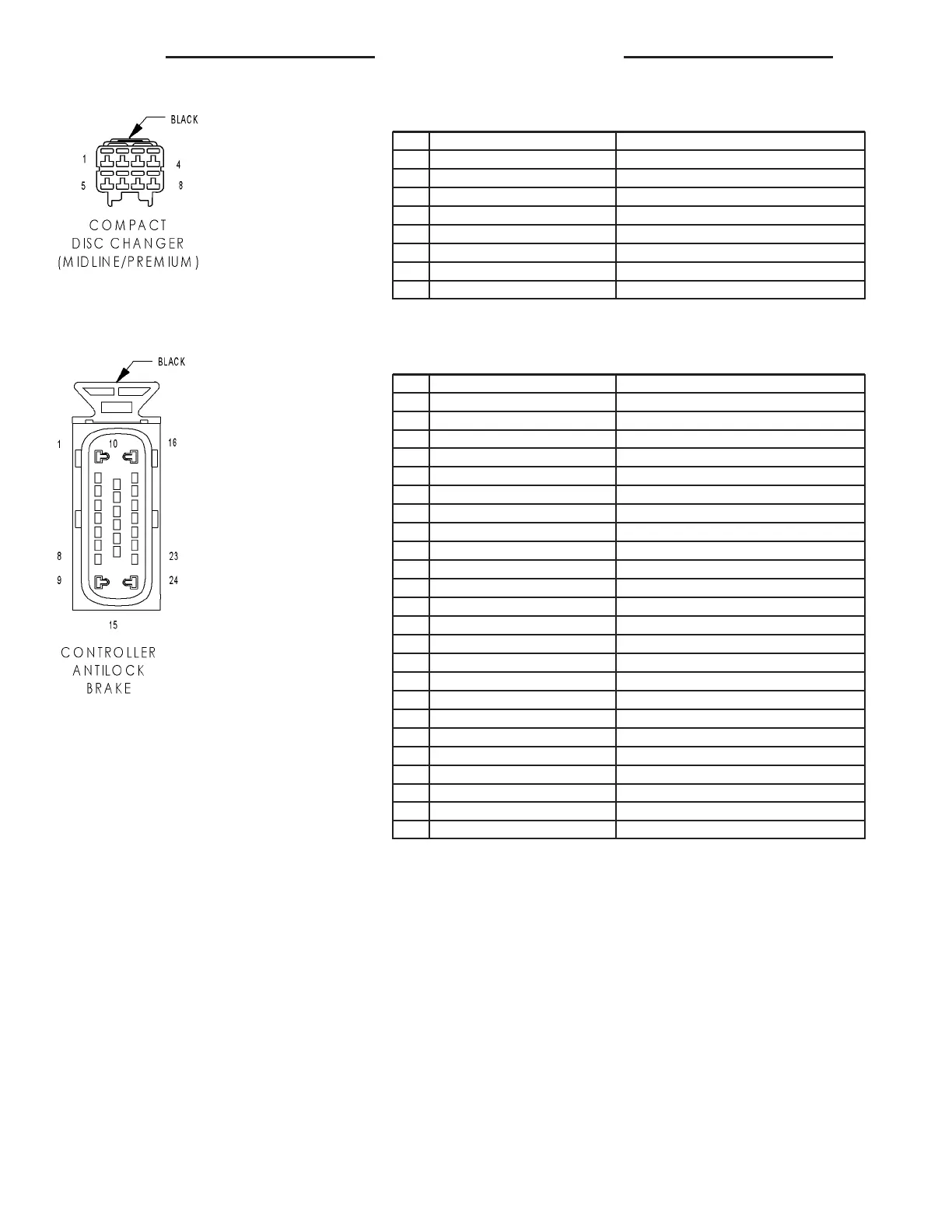

COMPACT DISC CHANGER (MIDLINE/PREMIUM) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 X40 24GY/WT AUDIO OUT RIGHT
2 E14 24OR/TN PANEL LAMPS DIMMER SIGNAL
3 D25 24VT/YL PCI BUS
4 X112 24RD FUSED IGNITION SWITCH OUTPUT
5 X41 24DG/WT AUDIO OUT LEFT
6 Z140 24BK/OR GROUND
7 Z141 22BK/TN GROUND
8 X160 22GY/YL B(+)
CONTROLLER ANTILOCK BRAKE - BLACK 25 WAY
CAV CIRCUIT FUNCTION
1 Z1 12BK GROUND
2 B1 18YL/DB RIGHT REAR WHEEL SPEED SENSOR (-)
3 B2 18YL RIGHT REAR WHEEL SPEED SENSOR (+)
4- -
5 D25 18VT/YL PCI BUS
6 B6 18WT/DB RIGHT FRONT WHEEL SPEED SENSOR (-)
7 B7 18WT RIGHT FRONT WHEEL SPEED SENSOR (+)
8- -
9 A20 12RD/DB FUSED B(+)
10 F20 18WT/VT FUSED IGNITION SWITCH OUTPUT (RUN)
11 - -
12 - -
13 - -
14 - -
15 - -
16 Z1 12BK GROUND
17 - -
18 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
19 B3 18LG/DB LEFT REAR WHEEL SPEED SENSOR (-)
20 B4 18LG LEFT REAR WHEEL SPEED SENSOR (+)
21 - -
22 B8 18RD/DB LEFT FRONT WHEEL SPEED SENSOR (-)
23 B9 18RD LEFT FRONT WHEEL SPEED SENSOR (+)
24 A10 12RD/DG FUSED B(+)
8W - 80 - 42 8W-80 CONNECTOR PIN-OUTS LH
