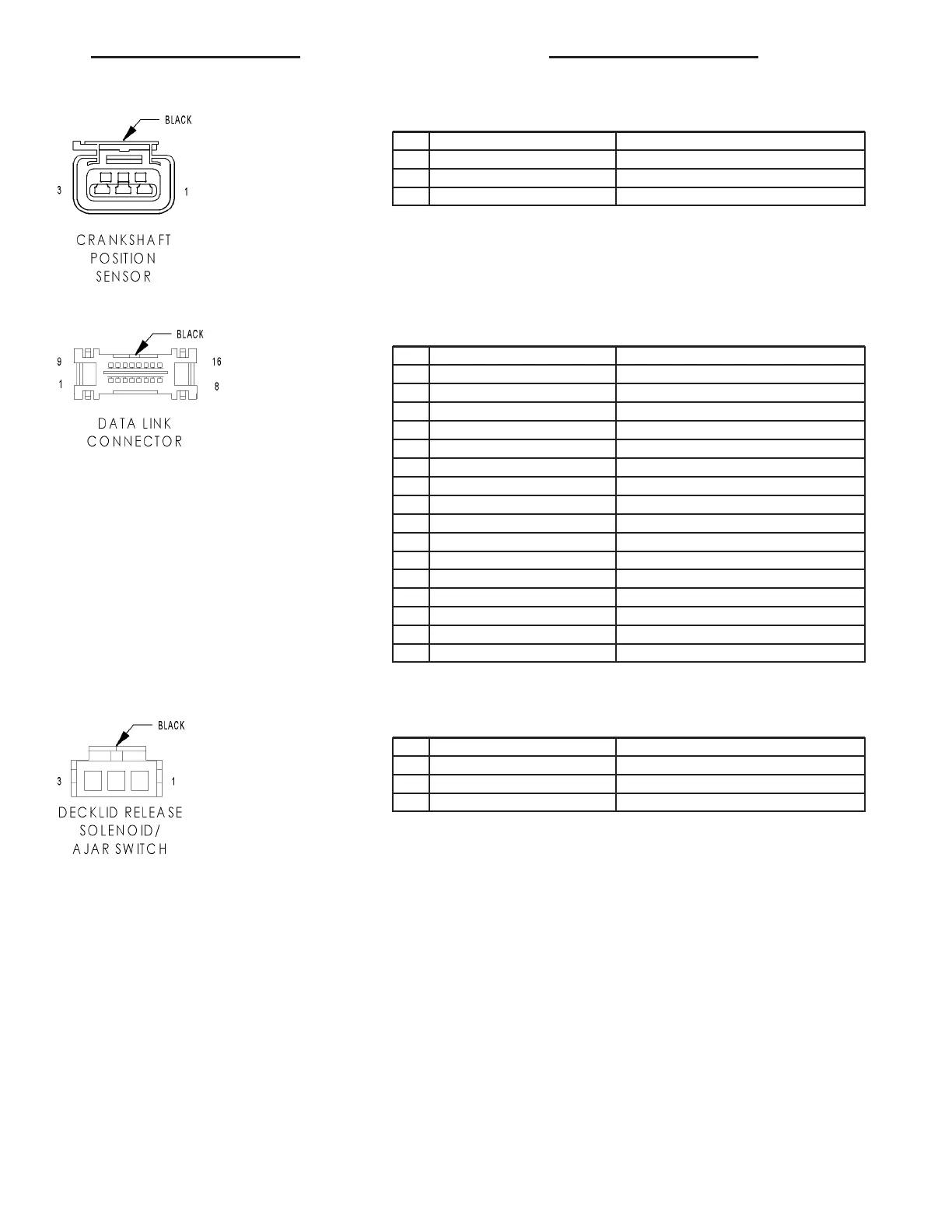

CRANKSHAFT POSITION SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K6 20VT/WT 5V SUPPLY
2 K4 20BK/LB SENSOR GROUND
3 K24 20GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
DATA LINK CONNECTOR - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20VT/YL PCI BUS
3- -
4 Z1 20BK GROUND
5 Z2 20BK/LG GROUND
6- -
7 D21 20PK/TN SCI TRANSMIT (PCM)
8 F11 20RD/WT FUSED IGNITION SWITCH OUTPUT (OFF-RUN-START)
9 D19 20VT/OR SCI RECEIVE (TCM/BCM)
10 - -
11 - -
12 D20 20LG SCI RECEIVE (PCM)
13 - -
14 - -
15 D15 20WT/DG SCI TRANSMIT (TCM)
16 F62 16RD FUSED B (+)
DECKLID RELEASE SOLENOID/AJAR SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z1 20BK GROUND
2 G78 20TN/BK DECKLID AJAR SWITCH SENSE
3 P2 20BK/WT DECKLID RELEASE CONTROL
LH 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 43
