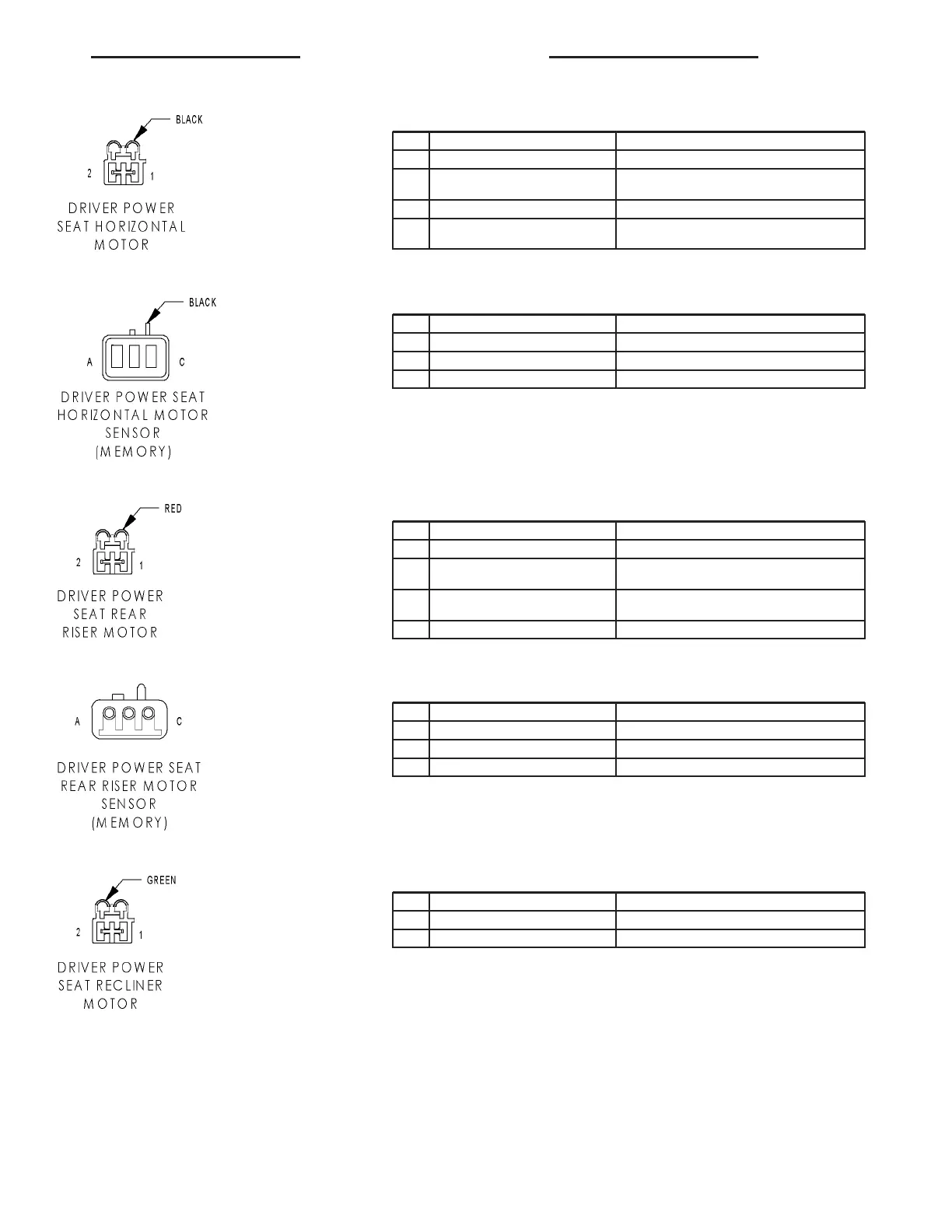

DRIVER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P115 16YL/DB (MEMORY SEATS) DRIVER SEAT HORIZONTAL FORWARD DRIVER
1 P15 16YL/LB (EXCEPT MEMORY
SEATS)
DRIVER SEAT HORIZONTAL REARWARD DRIVER
2 P117 16RD/LB (MEMORY SEATS) DRIVER SEAT HORIZONTAL REARWARD DRIVER
2 P17 16RD/LB (EXCEPT MEMORY
SEATS)
DRIVER SEAT HORIZONTAL FORWARD DRIVER
DRIVER POWER SEAT HORIZONTAL MOTOR SENSOR (MEMORY) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P28 20BR/RD SEAT POSITION SENSOR GROUND
B P25 20VT/RD SEAT HORIZONTAL POSITION SIGNAL
C P29 20BR/WT SEAT HEATER 5V SUPPLY
DRIVER POWER SEAT REAR RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P111 16YL/WT (MEMORY SEATS) SEAT REAR UP DRIVER
1 P11 16YL/WT (EXCEPT MEMORY
SEATS)
SEAT REAR UP SWITCH SENSE
2 P13 16RD/WT (EXCEPT MEMORY
SEATS)
SEAT REAR DOWN SWITCH SENSE
2 P113 16RD/WT (MEMORY SEATS) SEAT REAR DOWN DRIVER
DRIVER POWER SEAT REAR RISER MOTOR SENSOR (MEMORY)-3WAY
CAV CIRCUIT FUNCTION
A P28 20BR/RD SEAT POSITION SENSOR GROUND
B P27 20LB/RD REAR RISER POSITION SIGNAL
C P29 20BR/WT SEAT SENSOR 5V SUPPLY
DRIVER POWER SEAT RECLINER MOTOR - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 P41 16GY/WT DRIVER SEAT RECLINER DOWN DRIVER
2 P43 16GY/LB DRIVER SEAT RECLINER UP DRIVER
LH 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 47
