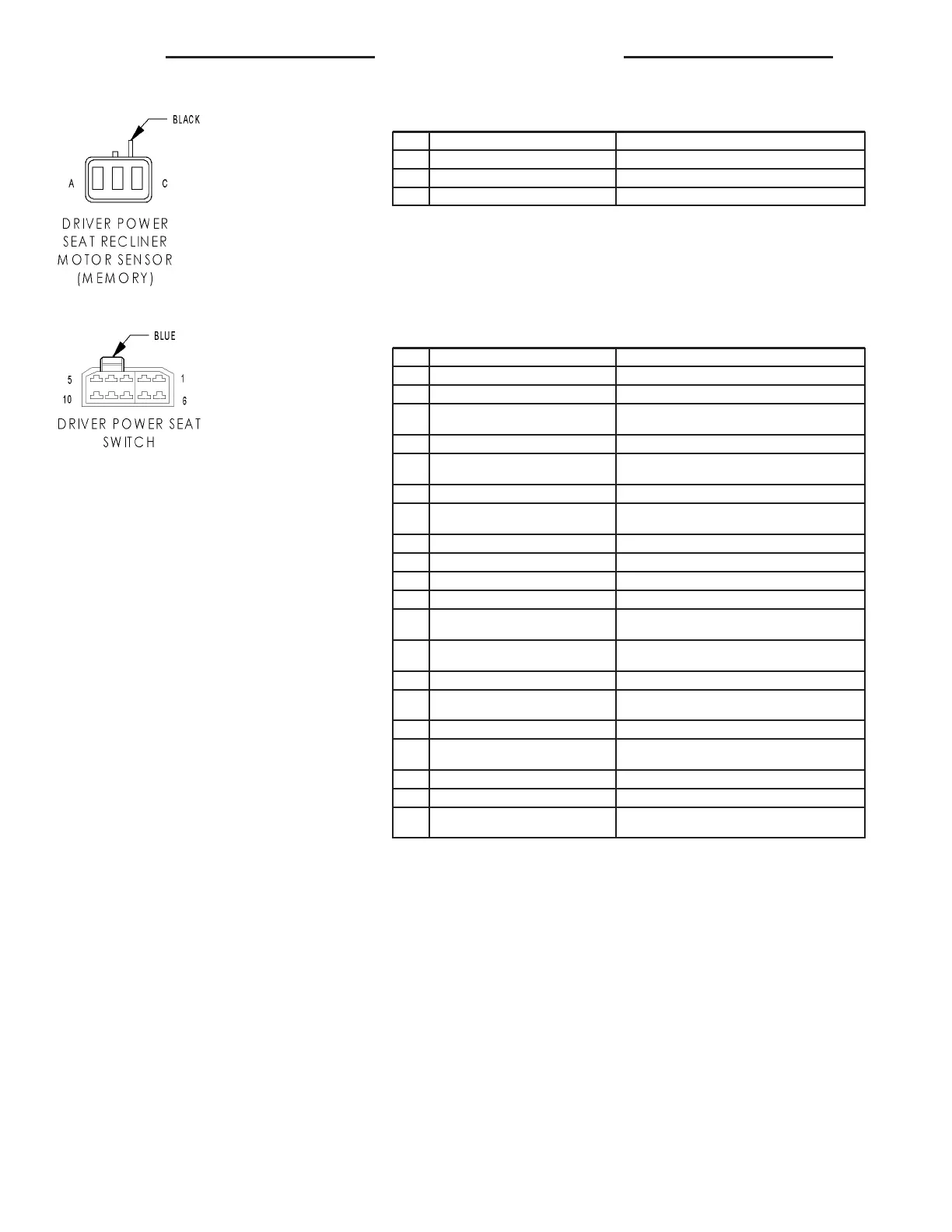

DRIVER POWER SEAT RECLINER MOTOR SENSOR (MEMORY) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A P29 20BR/WT SEAT SENSOR 5V SUPPLY
B P47 20LB RECLINER POSITION SIGNAL
C P28 20BR/RD SEAT POSITION SENSOR GROUND
DRIVER POWER SEAT SWITCH - BLUE 10 WAY
CAV CIRCUIT FUNCTION
1 P9 20RD (MEMORY SEATS) SEAT SWITCH B(+) SUPPLY
1 F35 16RD (EXCEPT MEMORY SEATS) FUSED B(+)
2 P41 16GY/WT (EXCEPT MEMORY
SEATS)
DRIVER SEAT RECLINER SWITCH UP
2 P48 20GY/WT (MEMORY SEATS) RECLINER DOWN SWITCH SENSE
3 P17 16RD/LB (EXCEPT MEMORY
SEATS)
DRIVER SEAT HORIZONTAL REARWARD
3 P17 18RD/LB (MEMORY SEATS) SEAT HORIZONTAL REARWARD SWITCH SENSE
4 P43 16GY/LB (EXCEPT MEMORY
SEATS)
DRIVER SEAT RECLINER SWITCH DOWN
4 P40 20GY/LB (MEMORY SEATS) DRIVER SEAT RECLINER UP
5 Z1 18BK (MEMORY SEATS) GROUND
5 Z1 16BK (EXCEPT MEMORY SEATS) GROUND
6 P21 18RD/LG (MEMORY SEATS) SEAT FRONT DOWN SWITCH SENSE
6 P21 16RD/LG (EXCEPT MEMORY
SEATS)
DRIVER SEAT FRONT DOWN
7 P13 16RD/WT (EXCEPT MEMORY
SEATS)
DRIVER SEAT REAR DOWN
7 P13 18RD/WT (MEMORY SEATS) SEAT REAR DOWN SWITCH SENSE
8 P11 16YL/WT (EXCEPT MEMORY
SEATS)
DRIVER SEAT REAR UP
8 P11 18YL/WT (MEMORY SEATS) SEAT REAR UP SWITCH SENSE
9 P19 16YL/LG (EXCEPT MEMORY
SEATS)
DRIVER SEAT FRONT UP
9 P19 18YL/LG (MEMORY SEATS) SEAT FRONT UP SWITCH SENSE
10 P15 18YL/LB (MEMORY SEATS) SEAT HORIZONTAL FORWARD SWITCH SENSE
10 P15 16YL/LB (EXCEPT MEMORY
SEATS)
DRIVER SEAT HORIZONTAL FORWARD
8W - 80 - 48 8W-80 CONNECTOR PIN-OUTS LH
