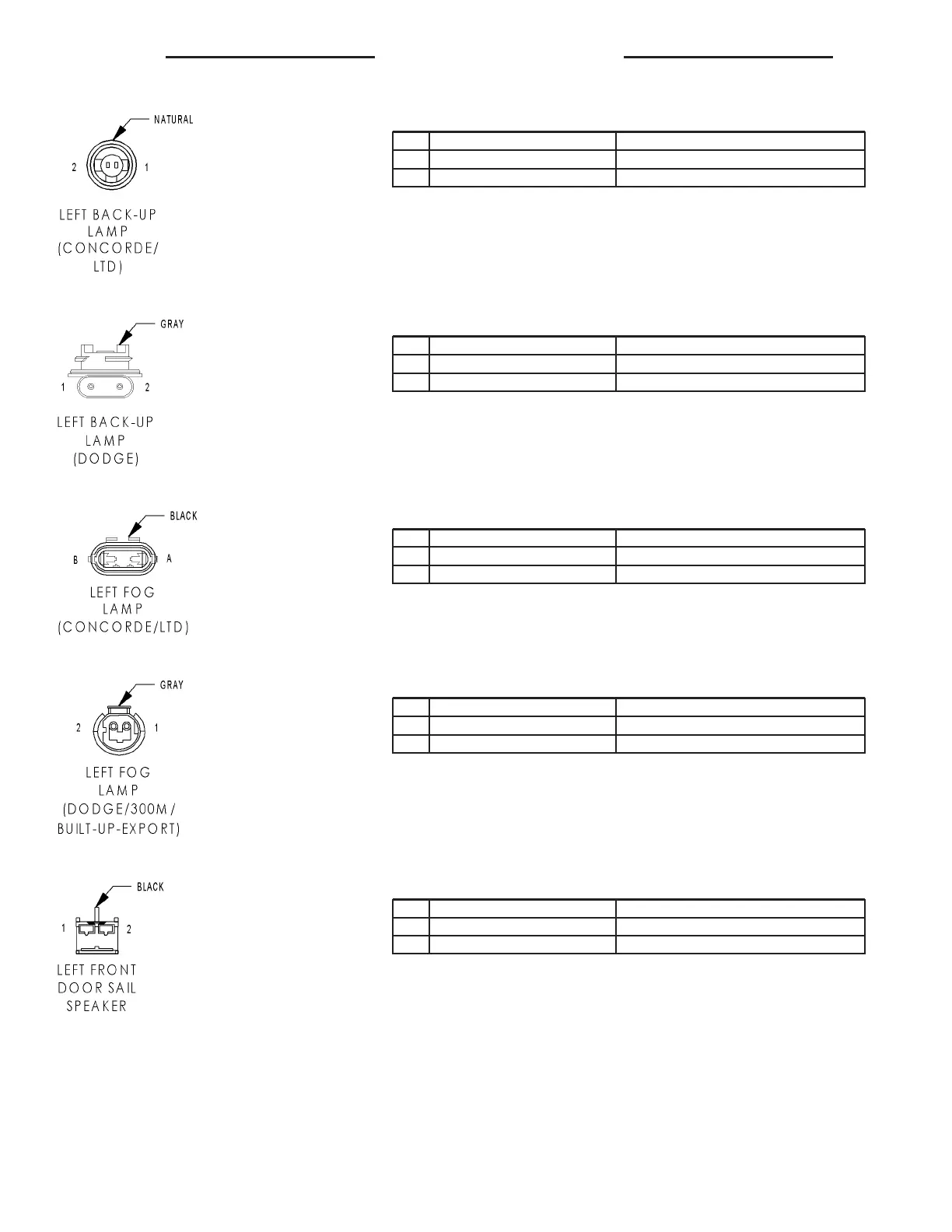

LEFT BACK-UP LAMP (CONCORDE/LTD) - NATURAL 2 WAY
CAV CIRCUIT FUNCTION
1 L1 18VT/BK BACK-UP LAMP FEED
2 Z1 18BK GROUND
LEFT BACK-UP LAMP (DODGE) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18VT/BK GROUND
2 L1 18VT/BK BACK-UP LAMP FEED
LEFT FOG LAMP (CONCORDE/LTD) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A L39 20LB FOG LAMP RELAY OUTPUT
B Z1 20BK GROUND
LEFT FOG LAMP (DODGE/300M/BUILT-UP-EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 L39 20LB FOG LAMP RELAY OUTPUT
2 Z1 20BK GROUND
LEFT FRONT DOOR SAIL SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X83 18YL/RD AMPLIFIED LEFT DOOR SAIL SPEAKER (+)
2 X81 18YL/BK AMPLIFIED LEFT DOOR SAIL SPEAKER (-)
8W - 80 - 60 8W-80 CONNECTOR PIN-OUTS LH
