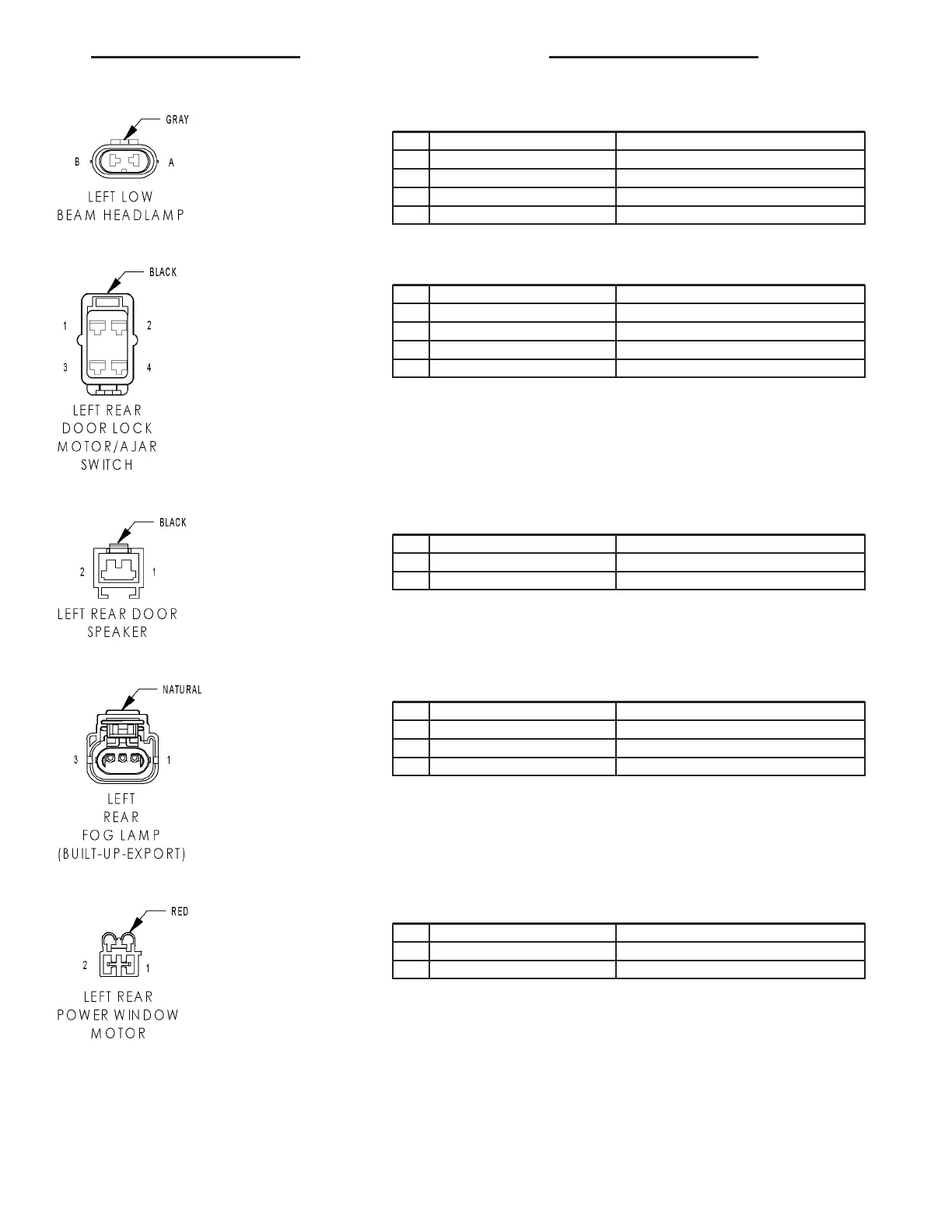

LEFT LOW BEAM HEADLAMP - GRAY 2 WAY
CAV CIRCUIT FUNCTION
A L43 20VT (BUILT-UP-EXPORT) FUSED LEFT LOW BEAM OUTPUT
A L43 16VT (EXCEPT BUILT-UP-EXPORT) FUSED LEFT LOW BEAM OUTPUT
B Z1 16BK (EXCEPT BUILT-UP-EXPORT) GROUND
B Z1 20BK (BUILT-UP-EXPORT) GROUND
LEFT REAR DOOR LOCK MOTOR/AJAR SWITCH - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 G74 20TN/RD DOOR AJAR SWITCH SENSE
2 Z1 20BK GROUND
3 P34 16PK/BK UNLOCK RELAY OUTPUT
4 P33 16OR LOCK RELAY OUTPUT
LEFT REAR DOOR SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X97 18TN/DG AMPLIFIED LOW LEFT REAR SPEAKER (-)
2 X95 18TN/VT AMPLIFIED LOW LEFT REAR SPEAKER (+)
LEFT REAR FOG LAMP (BUILT-UP-EXPORT) - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 L95 18DG/YL REAR FOG LAMP RELAY OUTPUT
2- -
3 Z1 18BK GROUND
LEFT REAR POWER WINDOW MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 Q23 16DG LEFT REAR POWER WINDOW DRIVER DOWN
2 Q13 16GY WINDOW LEFT REAR B(+) UP
