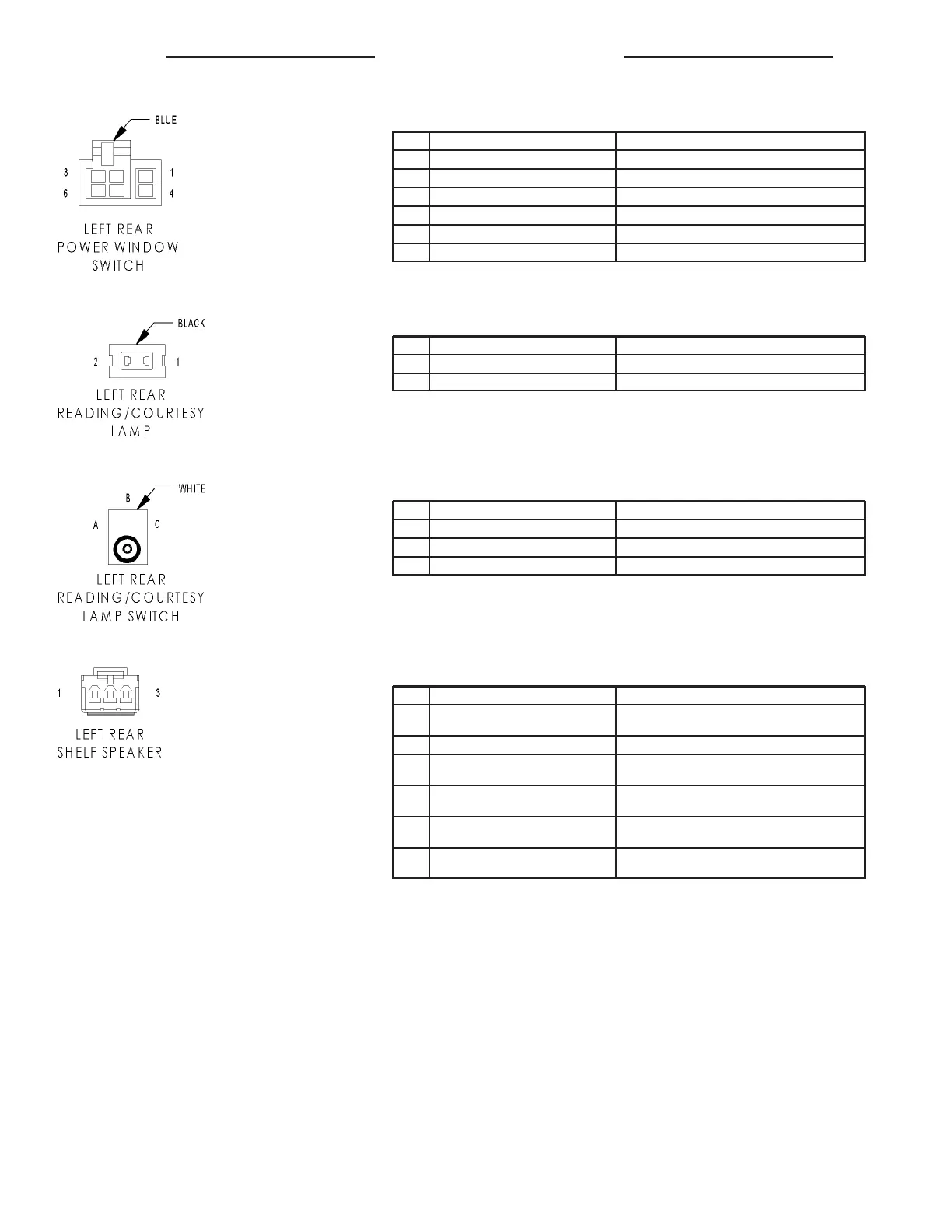

LEFT REAR POWER WINDOW SWITCH - BLUE 6 WAY
CAV CIRCUIT FUNCTION
1 Q23 16DG LEFT REAR WINDOW DRIVER DOWN
2 Q17 14GY/BK LEFT REAR WINDOW DRIVER (UP)
3- -
4 Q27 14DG/WT LEFT REAR WINDOW DRIVER (DOWN)
5 Q13 16GY WINDOW LEFT REAR B(+) UP
6 Q1 14YL WINDOW SWITCH FEED
LEFT REAR READING/COURTESY LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 M1 20PK FUSED B(+)
2 M52 20LG (EXCEPT BASE) COURTESY LAMPS DRIVER
LEFT REAR READING/COURTESY LAMP SWITCH - WHITE 3 WAY
CAV CIRCUIT FUNCTION
A Z1 20BK GROUND
B M52 20LG LEFT REAR READING LAMP SWITCH CONTROL
C M2 20YL COURTESY LAMPS DRIVER
LEFT REAR SHELF SPEAKER-3WAY
CAV CIRCUIT FUNCTION
1 X91 18WT/BK (MIDLINE AND
PREMIUM AUDIO)
AMPLIFIED HIGH LEFT REAR SPEAKER (-)
1 X57 18BR/LB (BASE AUDIO) LEFT REAR SPEAKER (-)
2 X93 18WT/RD (EARLY BUILD MIDLINE
AND PREMIUM AUDIO)
AMPLIFIED HIGH LEFT REAR SPEAKER (+)
2 X51 18BR/YL (EARLY BUILD BASE
AUDIO)
LEFT REAR SPEAKER (+)
3 X93 18WT/RD (NORMAL BUILD
MIDLINE AND PREMIUM AUDIO)
AMPLIFIED HIGH LEFT REAR SPEAKER (+)
3 X51 18BR/YL (NORMAL BUILD BASE
AUDIO)
LEFT REAR SPEAKER (+)
8W - 80 - 64 8W-80 CONNECTOR PIN-OUTS LH
