Dodge Intrepid - Page 163

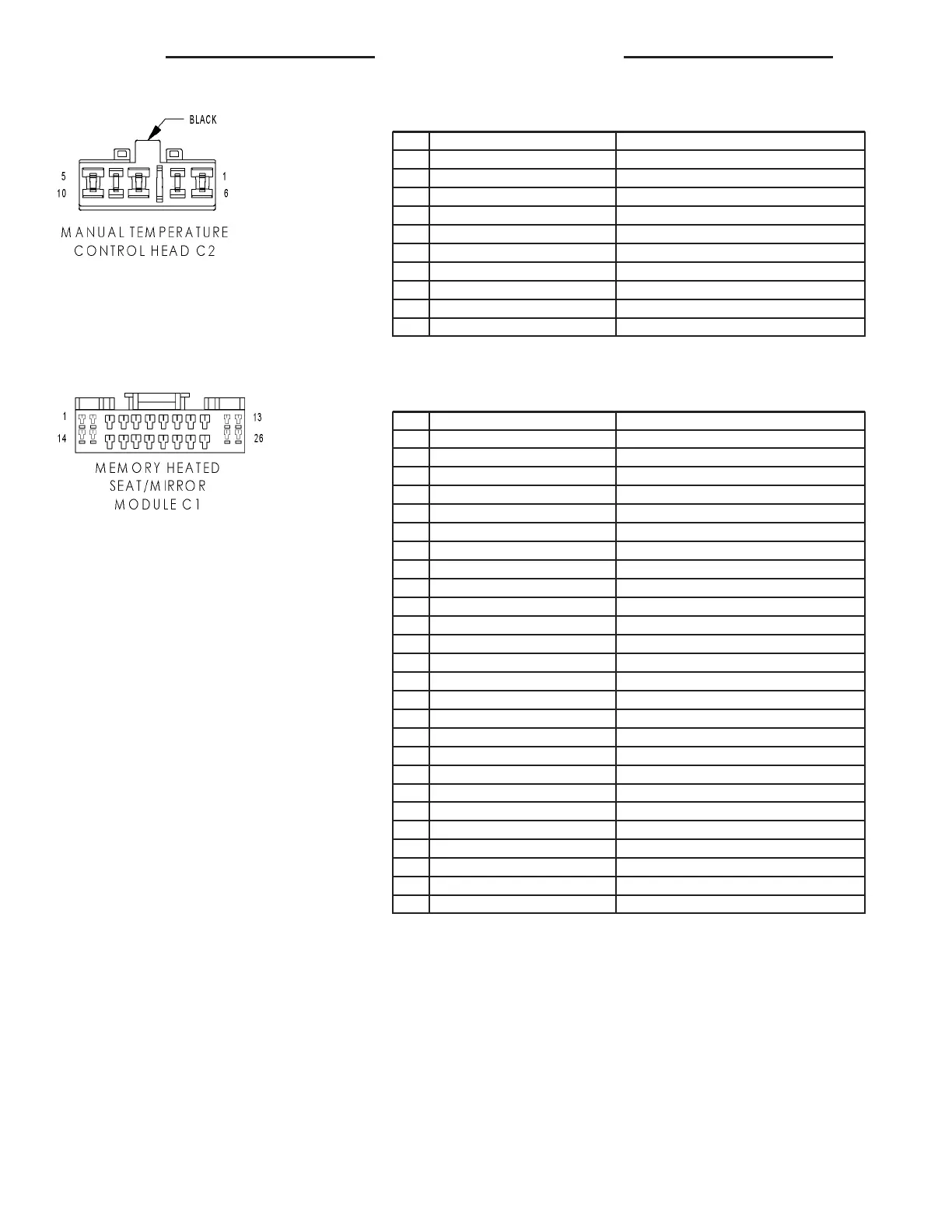

MANUAL TEMPERATURE CONTROL HEAD C2 - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1- -
2 C4 18TN LOW BLOWER MOTOR DRIVER
3 C6 16LB M2 BLOWER MOTOR DRIVER
4- -
5 Z1 12BK GROUND
6- -
7 C5 16LG M1 BLOWER MOTOR DRIVER
8- -
9- -
10 C7 12BK/TN HIGH BLOWER MOTOR DRIVER
MEMORY HEATED SEAT/MIRROR MODULE C1 - 26 WAY
CAV CIRCUIT FUNCTION
1 P69 20WT/RD DRIVER MIRROR SENSOR GROUND
2 P25 20VT/RD SEAT HORIZONTAL POSITION SIGNAL
3 P27 20LB/RD REAR RISER POSITION SIGNAL
4 P141 20TN/LB DRIVER SEAT TEMPERATURE SENSOR INPUT
5 P134 20TN/LG PASSENGER SEAT HEATER MUX SWITCH
6 P67 20YL/RD PASSENGER MIRROR VERTICAL POSITION SIGNAL
7 P64 20YL/OR DRIVER MIRROR VERTICAL POSITION SIGNAL
8 P21 18RD/LG SEAT FRONT DOWN SWITCH SENSE
9 P13 18RDWT SEAT REAR DOWN SWITCH SENSE
10 P15 18YL/LB SEAT HORIZONTAL FORWARD SWITCH SENSE
11 P40 20GY/LB DRIVER SEAT RECLINER UP
12 P23 18PK/RD MEMORY POSITION 1 SWITCH SENSE
13 P22 18PK/BK MEMORY SET SWITCH SENSE
14 P66 20WT/BK PASSENGER MIRROR SENSOR GROUND
15 P26 20BR FRONT RISER POSITION SIGNAL
16 P47 20LB RECLINER POSITION SIGNAL
17 P142 20TN/DB PASSENGER SEAT TEMPERATURE SENSOR INPUT
18 P133 20TN/DG DRIVER SEAT HEATER SWITCH MUX
19 P68 20DG/RD PASSENGER MIRROR HORIZONTAL POSITION SIGNAL
20 P65 20DB/YL DRIVER MIRROR HORIZONTAL POSITION SIGNAL
21 P19 18YL/LG SEAT FRONT UP SWITCH SENSE
22 P11 18YL/WT SEAT REAR UP SWITCH SENSE
23 P17 18RD/LB SEAT HORIZONTAL REARWARD SWITCH SENSE
24 P48 20GY/WT DRIVER SEAT RECLINER DOWN
25 P24 18PK/WT MEMORY POSITION 2 SWITCH SENSE
26 D25 20VT/YL PCI BUS
8W - 80 - 70 8W-80 CONNECTOR PIN-OUTS LH
