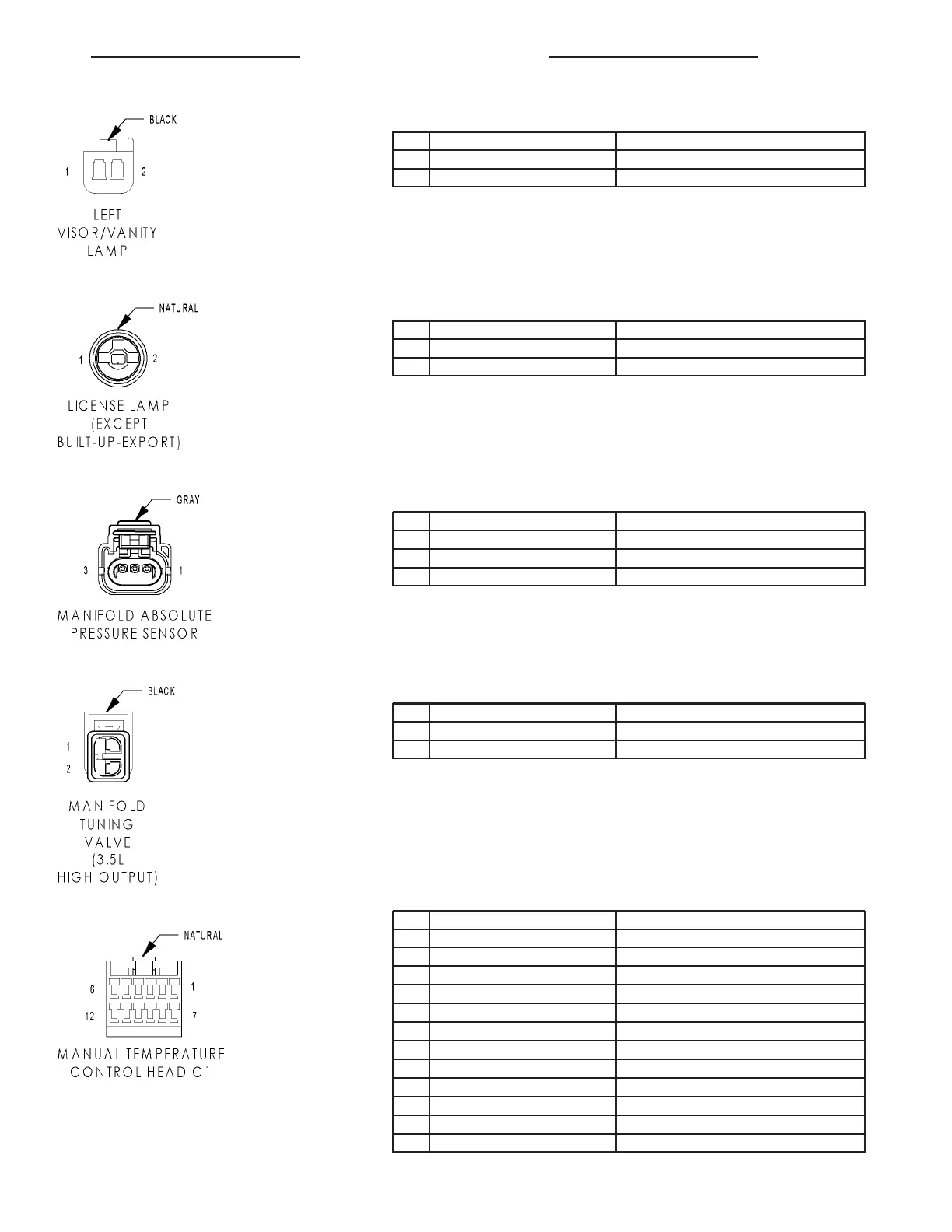

LEFT VISOR/VANITY LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 M1 20PK FUSED B(+)
2 Z1 20BK GROUND
LICENSE LAMP (EXCEPT BUILT-UP-EXPORT) - NATURAL 2 WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL PARK LAMP RELAY OUTPUT
2 Z1 18BK GROUND
MANIFOLD ABSOLUTE PRESSURE SENSOR - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 K1 20DG/RD MAP SENSOR SIGNAL
2 K4 18BK/LB SENSOR GROUND
3 K6 20VT/WT 5V SUPPLY
MANIFOLD TUNING VALVE (3.5L HIGH OUTPUT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z12 18BK/TN GROUND
2 K36 18VT/RD MANIFOLD SOLENOID CONTROL
MANUAL TEMPERATURE CONTROL HEAD C1 - NATURAL 12 WAY
CAV CIRCUIT FUNCTION
1 C48 20VT/PK A/C LED INDICATOR SIGNAL
2 C80 20DB/WT REAR WINDOW DEFOGGER RELAY CONTROL
3 Z1 20BK GROUND
4 C57 20DB/GY SENSOR GROUND
5 F20 20WT FUSED IGNITION SWITCH OUTPUT (RUN)
6 E17 20YL/BK PARK LAMP RELAY OUTPUT
7- -
8- -
9 C82 20YL/OR TEMPERATURE SELECT
10 C58 22RD/TN A/C MODE SWITCH MUX
11 - -
12 E2 20OR PANEL LAMPS DRIVER
LH 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 69
