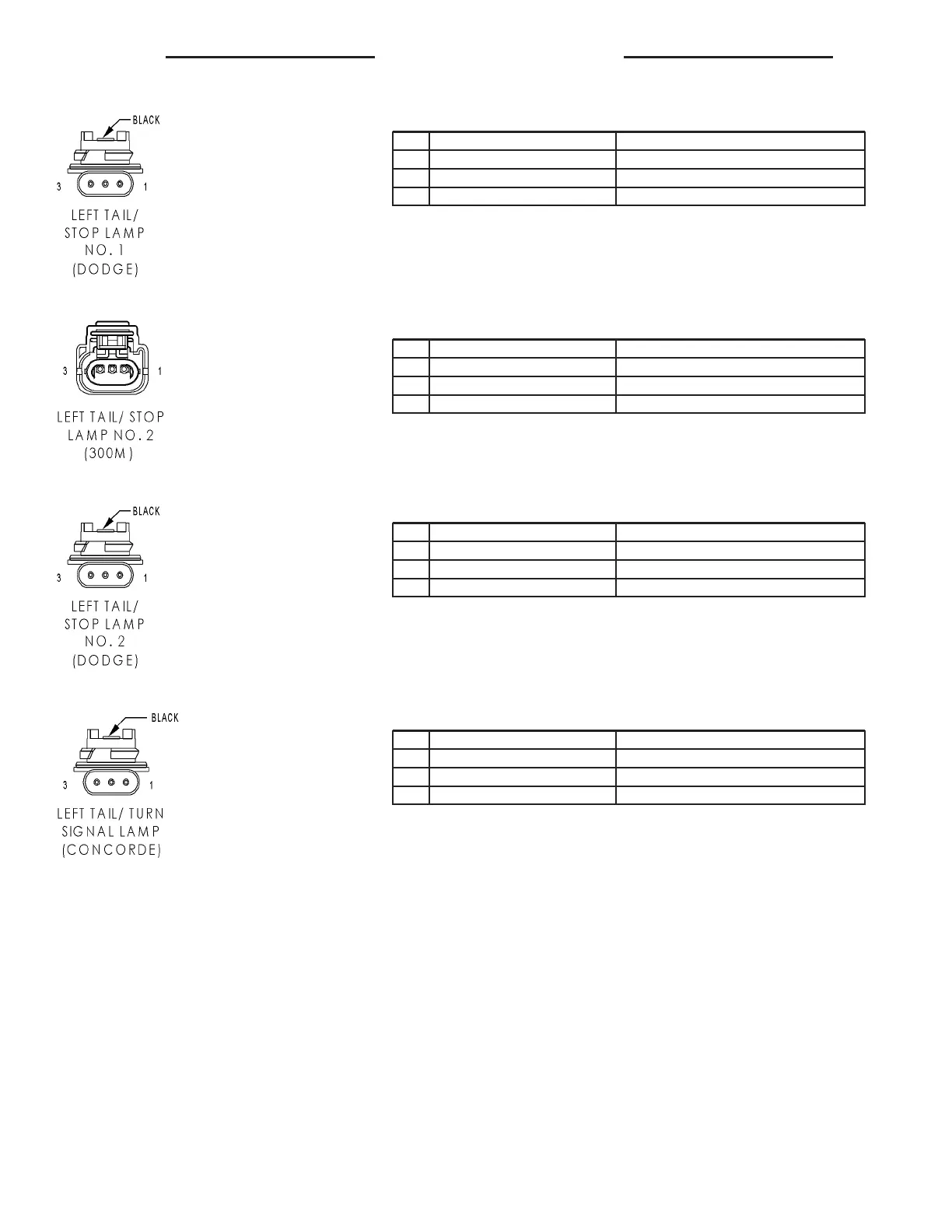

LEFT TAIL/STOP LAMP NO. 1 (DODGE) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 Z1 18BK GROUND
LEFT TAIL/STOP LAMP NO. 2 (300M)-3WAY
CAV CIRCUIT FUNCTION
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 Z1 18BK GROUND
LEFT TAIL/STOP LAMP NO. 2 (DODGE) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 Z1 18BK GROUND
LEFT TAIL/TURN SIGNAL LAMP (CONCORDE) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L61 18LG/TN LEFT TURN SIGNAL
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 Z1 18BK GROUND
8W - 80 - 68 8W-80 CONNECTOR PIN-OUTS LH
