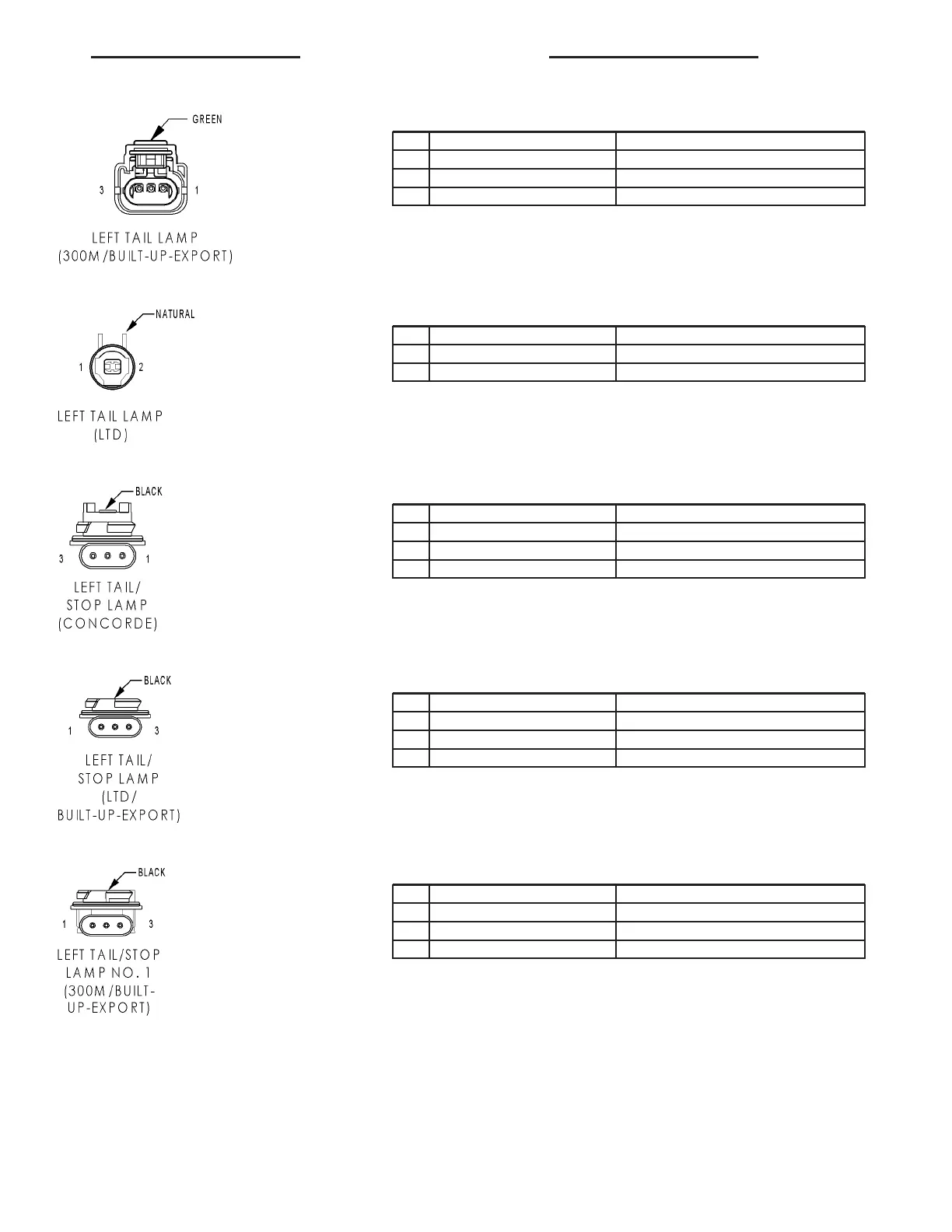

LEFT TAIL LAMP (300M/BUILT-UP-EXPORT) - GREEN 3 WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL PARK LAMP RELAY OUTPUT
2 Z1 18BK GROUND
3- -
LEFT TAIL LAMP (LTD) - NATURAL 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
LEFT TAIL/STOP LAMP (CONCORDE) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 Z1 18 BK DRIVER
LEFT TAIL/STOP LAMP (LTD/BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 Z1 18BK GROUND
LEFT TAIL/STOP LAMP NO. 1 (300M/BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 Z1 18BK GROUND
LH 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 67
