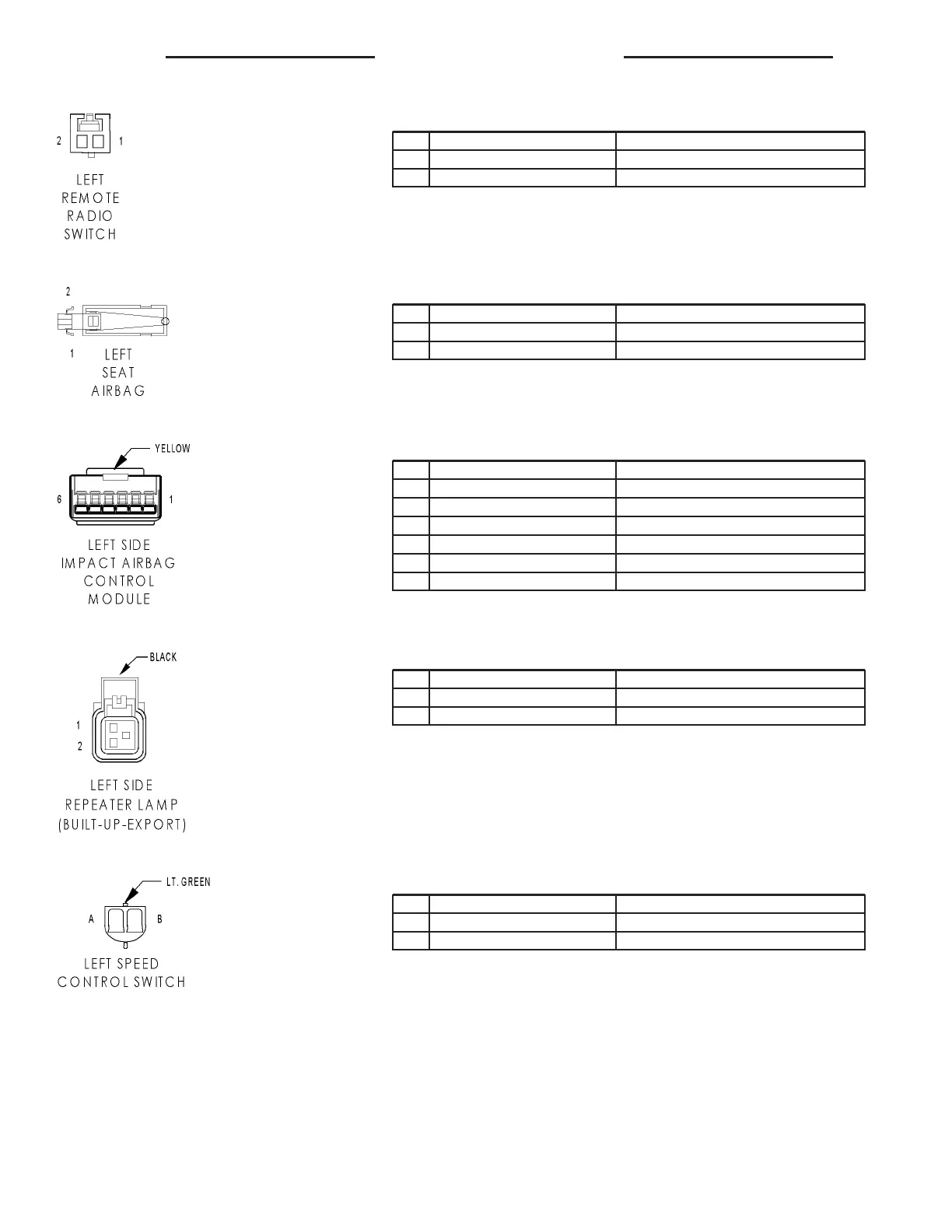

LEFT REMOTE RADIO SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 X20 22GY/WT RADIO CONTROL MUX
2 X920 22GY/OR RADIO CONTROL MUX RETURN
LEFT SEAT AIRBAG-2WAY
CAV CIRCUIT FUNCTION
1 R31 20LG/OR LEFT SEAT SQUIB LINE 1
2 R33 20LG/WT LEFT SEAT SQUIB LINE 2
LEFT SIDE IMPACT AIRBAG CONTROL MODULE - YELLOW 6 WAY
CAV CIRCUIT FUNCTION
1 F14 20LG/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
2 D25 20VT/YL PCI BUS
3 R31 20LG/OR LEFT SEAT SQUIB LINE 1
4 R33 20LG/WT LEFT SEAT SQUIB LINE 2
5 Z2 20BK/LG GROUND
6 Z2 20BK/LG GROUND
LEFT SIDE REPEATER LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 L61 20LG LEFT TURN SIGNAL
2 Z1 20BK GROUND
LEFT SPEED CONTROL SWITCH - LT. GREEN 2 WAY
CAV CIRCUIT FUNCTION
A V37 22RD/LG SPEED CONTROL SWITCH SIGNAL
B K4 22BK/LB SENSOR GROUND
8W - 80 - 66 8W-80 CONNECTOR PIN-OUTS LH
