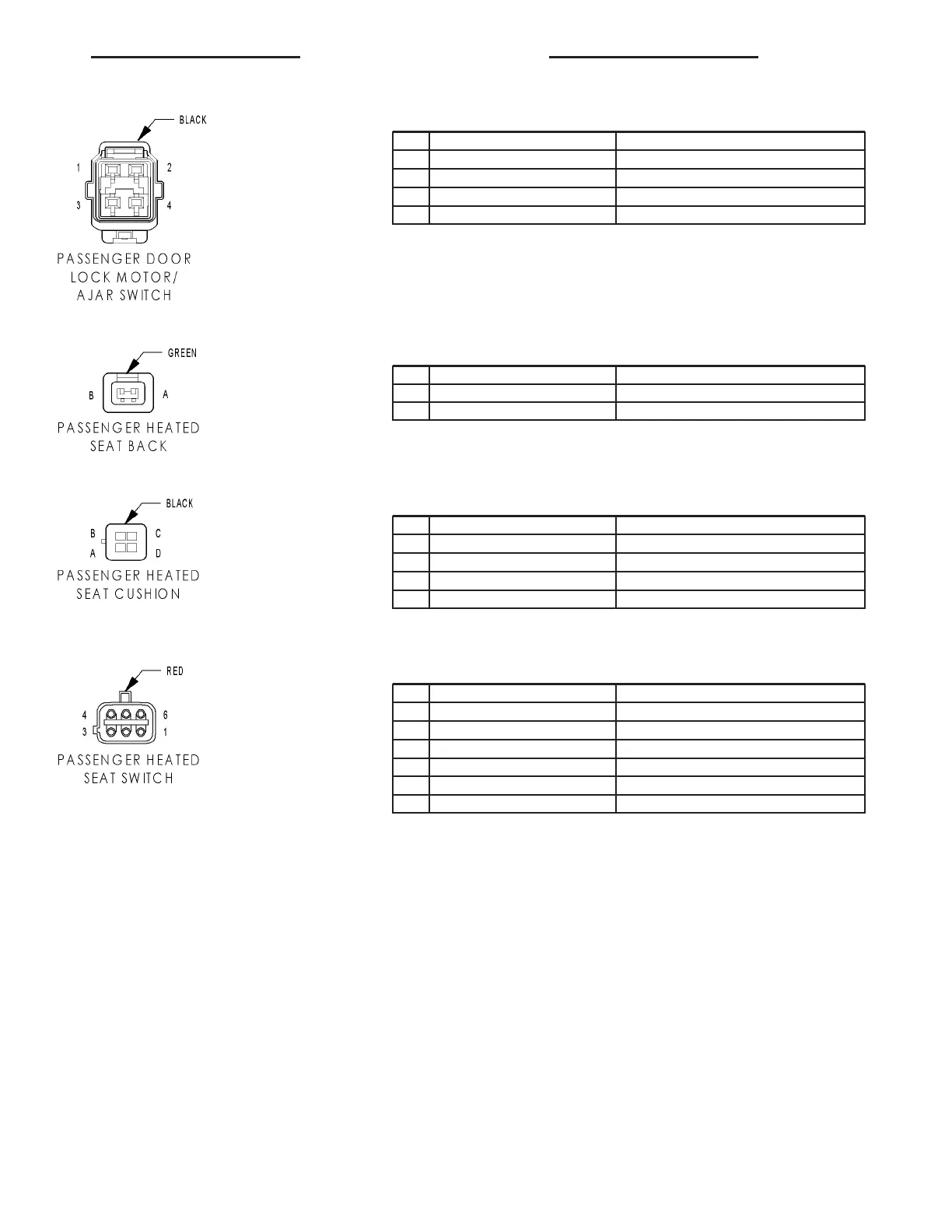

PASSENGER DOOR LOCK MOTOR/AJAR SWITCH - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 G74 20TN/RD DOOR AJAR SWITCH SENSE
2 Z1 20BK GROUND
3 P34 16PK/BK UNLOCK RELAY OUTPUT
4 P33 16OR LOCK RELAY OUTPUT
PASSENGER HEATED SEAT BACK - GREEN 2 WAY
CAV CIRCUIT FUNCTION
A P88 16BR/BK HEATED SEAT DRIVER
B Z1 20BK GROUND
PASSENGER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
A P130 16RD/TN PASSENGER SEAT HEATER B(+) DRIVER
B P88 16BR/BK HEATED SEAT DRIVER
C P142 20TN/DB PASSENGER SEAT TEMPERATURE SENSOR INPUT
D P144 20BK/LG PASSENGER SEAT TEMPERATURE 5V SUPPLY
PASSENGER HEATED SEAT SWITCH - RED 6 WAY
CAV CIRCUIT FUNCTION
1 P138 20VT/LG PASSENGER SEAT LOW HEAT LED DRIVER
2- -
3 Z1 20BK GROUND
4 G5 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
5 P140 20VT/BK PASSENGER SEAT HIGH HEAT LED DRIVER
6 P134 20TN/LG PASSENGER SEAT HEATER MUX SWITCH
LH 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 75
