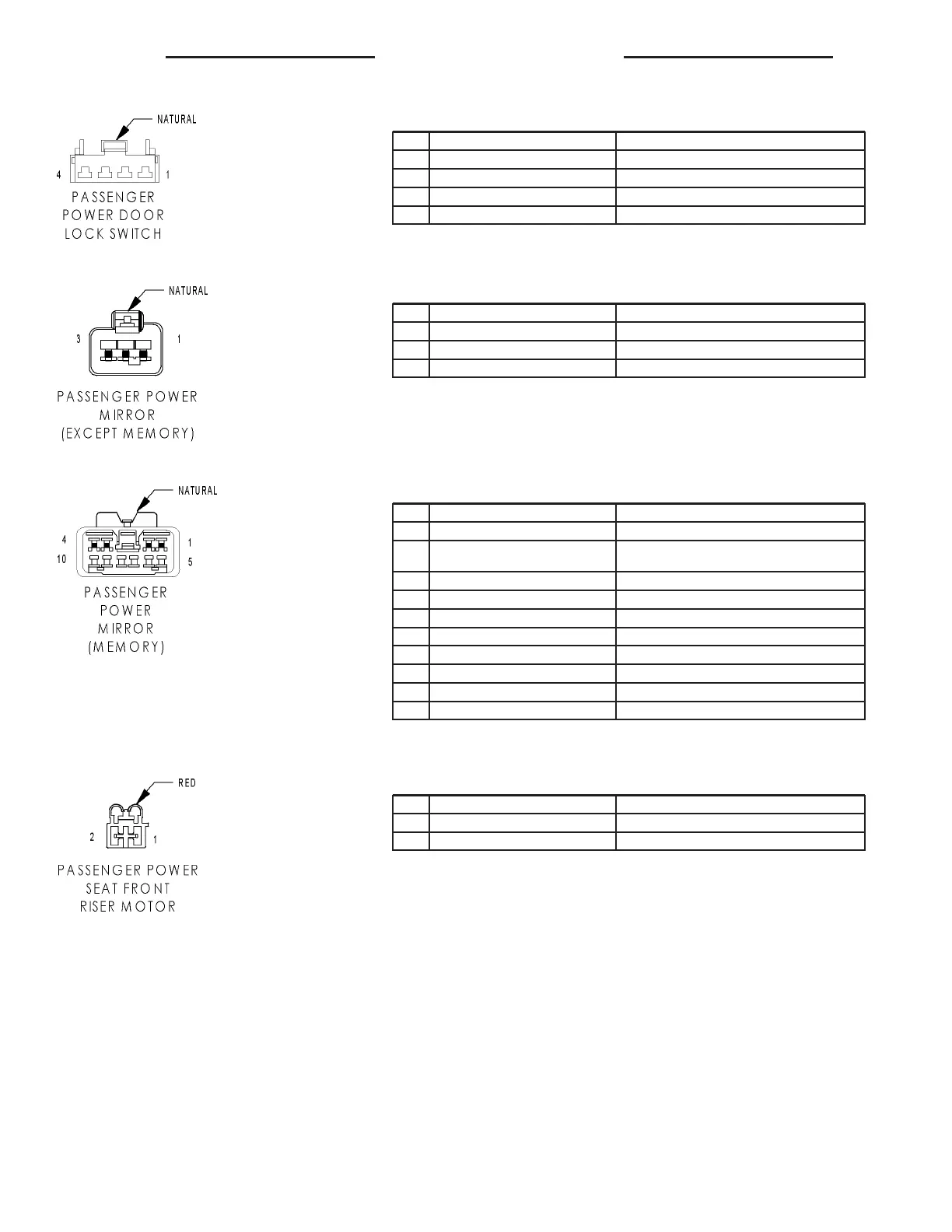

PASSENGER POWER DOOR LOCK SWITCH - NATURAL 4 WAY
CAV CIRCUIT FUNCTION
1 M1 20PK FUSED B(+)
2 G5 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 Z1 20BK GROUND
4 P96 20WT/LG PASSENGER DOOR MUX SWITCH
PASSENGER POWER MIRROR (EXCEPT MEMORY) - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 P70 20WT PASSENGER MIRROR RIGHT/DOWN
2 P72 20YL/BK PASSENGER MIRROR UP
3 P74 20DB PASSENGER MIRROR LEFT
PASSENGER POWER MIRROR (MEMORY) - NATURAL 10 WAY
CAV CIRCUIT FUNCTION
1 Z1 20BK GROUND
2 P70 20WT PASSENGER MIRROR COMMON DRIVER (RIGHT/
DOWN)
3 C16 20LB/YL FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4 P72 20YL/BK PASSENGER MIRROR UP DRIVER
5 P74 20DB PASSENGER MIRROR LEFT DRIVER
6 P162 20GY/WT PASSENGER MIRROR SENSOR 5V SUPPLY
7 P67 20YL/RD PASSENGER MIRROR VERTICAL POSITION SIGNAL
8 L60 18TN RIGHT TURN SIGNAL (300M SPECIAL)
9 P68 20DG/RD PASSENGER MIRROR HORIZONTAL POSITION SIGNAL
10 P66 20WT/BK PASSENGER MIRROR SENSOR GROUND
PASSENGER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P18 16YL/LG PASSENGER SEAT FRONT UP
2 P20 16RD/LG PASSENGER SEAT FRONT DOWN
8W - 80 - 76 8W-80 CONNECTOR PIN-OUTS LH
