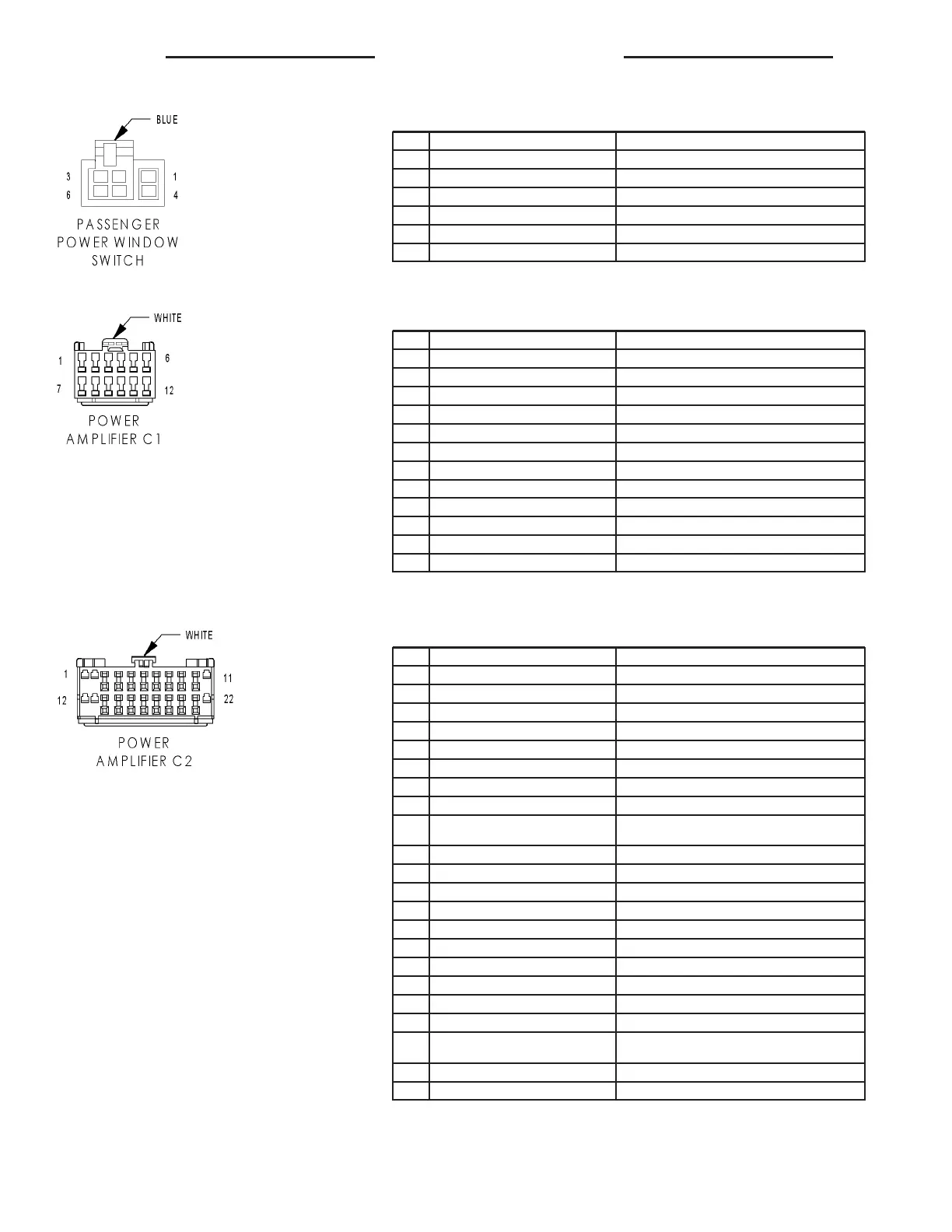

PASSENGER POWER WINDOW SWITCH - BLUE 6 WAY
CAV CIRCUIT FUNCTION
1 Q22 16VT PASSENGER WINDOW DRIVER (DOWN)
2 Q16 14BR/WT MASTER WINDOW SWITCH (RIGHT FRONT UP)
3- -
4 Q26 14VT/WT MASTER WINDOW SWITCH (RIGHT FRONT DOWN)
5 Q12 16BR PASSENGER WINDOW DRIVER (UP)
6 Q1 14YL POWER WINDOW SWITCH FEED
POWER AMPLIFIER C1 - WHITE 12 WAY
CAV CIRCUIT FUNCTION
1 X87 18LG/VT AMPLIFIED LEFT DOOR SPEAKER (+)
2 X82 18LB/RD AMPLIFIED RIGHT DOOR SPEAKER (+)
3 X83 18YL/RD AMPLIFIED LEFT DOOR SAIL SPEAKER (+)
4 X86 18OR/RD AMPLIFIED RIGHT DOOR SAIL SPEAKER (+)
5 X95 18WT/VT (PREMIUM II AUDIO) AMPLIFIED LOW LEFT REAR SPEAKER (+)
6 X98 18TN/VT (PREMIUM II AUDIO) AMPLIFIED LOW RIGHT REAR SPEAKER (+)
7 X85 18LG/BK AMPLIFIED LEFT DOOR SPEAKER (-)
8 X80 18LB/BK AMPLIFIED RIGHT DOOR SPEAKER (-)
9 X81 18YL/BK AMPLIFIED LEFT DOOR SAIL SPEAKER (-)
10 X84 18OR/BK AMPLIFIED RIGHT DOOR SAIL SPEAKER (-)
11 X97 18WT/DG (PREMIUM II AUDIO) AMPLIFIED LOW LEFT REAR SPEAKER (-)
12 X96 18TN/DG (PREMIUM II AUDIO) AMPLIFIED LOW RIGHT REAR SPEAKER (-)
POWER AMPLIFIER C2 - WHITE 22 WAY
CAV CIRCUIT FUNCTION
1 F62 16RD/WT FUSED B(+)
2 Z2 16BK/LG GROUND
3 X60 20DG/RD RADIO 12V OUTPUT
4 X54 18VT RIGHT FRONT SPEAKER (+)
5 X53 18DG LEFT FRONT SPEAKER (+)
6 X52 18DB/WT RIGHT REAR SPEAKER (+)
7 X51 18BR/YL LEFT REAR SPEAKER (+)
8- -
9 X88 18PK/RD AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER
(+)
10 X93 18WT/RD AMPLIFIED HIGH LEFT REAR SPEAKER (+)
11 X94 18TN/RD AMPLIFIED HIGH RIGHT REAR SPEAKER (+)
12 F62 16RD FUSED B(+)
13 Z2 16BK/LG GROUND
14 - -
15 X56 18DB/RD RIGHT FRONT SPEAKER (-)
16 X55 18BR/RD LEFT FRONT SPEAKER (-)
17 X58 18DB/OR RIGHT REAR SPEAKER (-)
18 X57 18BR/LB LEFT REAR SPEAKER (-)
19 - -
20 X89 18PK/BK AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER
(-)
21 X91 18WT/BK AMPLIFIED HIGH LEFT REAR SPEAKER (-)
22 X92 18TN/BK AMPLIFIED HIGH RIGHT REAR SPEAKER (-)
