(28) Remove 2/4 clutch pack (Fig. 43).
(29) Remove tapered snap ring (Fig. 44).
(30) Remove low/reverse reaction plate (Fig. 45).
(31) Remove one (1) low/reverse clutch disc to facil-
itate snap ring removal (Fig. 46).

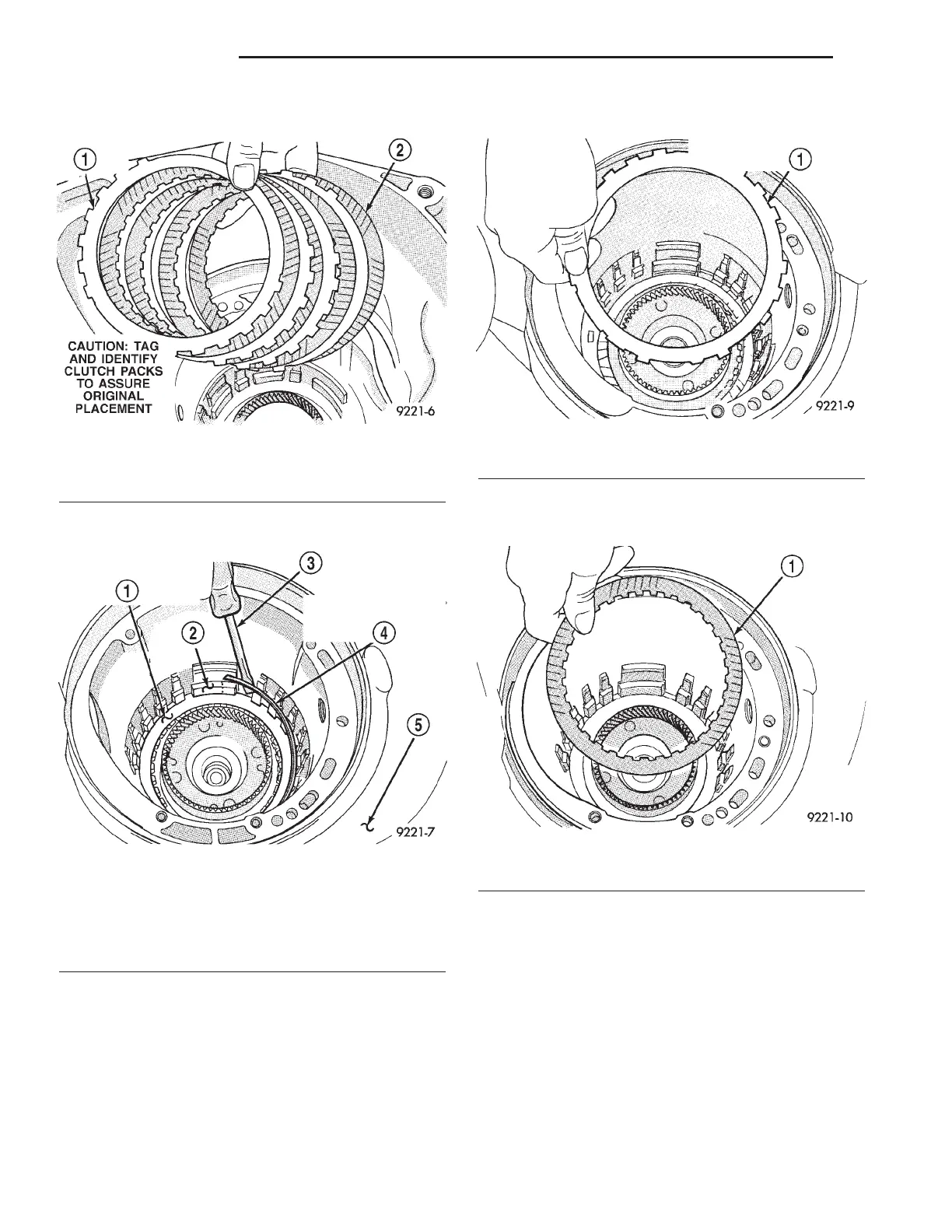

Fig. 43 Remove 2/4 Clutch Pack
1 - CLUTCH PLATE (4)
2 - CLUTCH DISC (4)
Fig. 44 Remove Tapered Snap Ring
1 - LOW/REVERSE CLUTCH REACTION PLATE
2 - LONG TAB
3 - SCREWDRIVER
4 - LOW/REVERSE TAPERED SNAP RING (TAPERED SIDE UP)
5 - OIL PAN FACE
Fig. 45 Remove Low/Reverse Reaction Plate
1 - LOW/REVERSE REACTION PLATE (FLAT SIDE UP)
Fig. 46 Remove One Disc
1 - ONE DISC FROM LOW/REVERSE CLUTCH
21 - 20 TRANSAXLE LH
42LE AUTOMATIC TRANSAXLE (Continued)
