(37) Remove chain snubber (Fig. 51).
(38) Remove transfer and output shaft sprocket
snap rings and wave washers (Fig. 52) (Fig. 53).
CAUTION: The chain sprockets have a slip fit onto
the shafts. Apply only a slight amount of pressure
to the chain spreader to release the chain pressure.
If chain sprockets are not spread slightly, removal
or installation will be difficult. Overspreading of the
chain sprockets will also make sprocket removal
difficult.
(39) Install Tool 6550 and apply a light amount of
pressure to facilitate removal (Fig. 54).

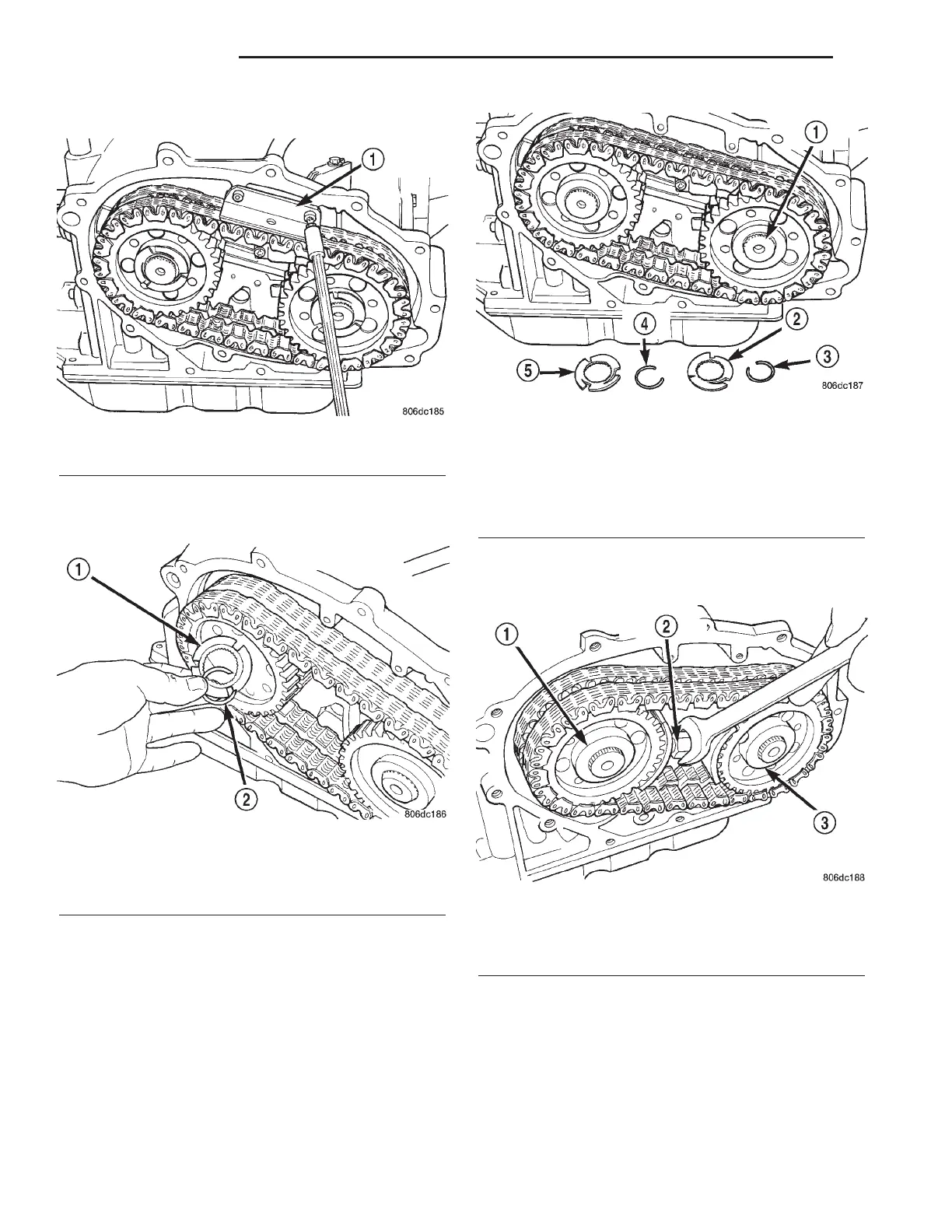

Fig. 51 Remove Chain Snubber
1 - CHAIN SNUBBER
Fig. 52 Remove Output Shaft Sprocket Snap Ring
and Wave Washer
1 - WAVE WASHER
2 - SNAP RING
Fig. 53 Remove Transfer Shaft Sprocket Snap Ring
and Wave Washer
1 - TRANSFER SHAFT
2 - WAVE WASHER
3 - SNAP RING
4 - SNAP RING
5 - WAVE WASHER
Fig. 54 Install Chain Spreader
1 - OUTPUT SPROCKET
2 - SPECIAL TOOL 6550
3 - TRANSFER SPROCKET
21 - 22 TRANSAXLE LH
42LE AUTOMATIC TRANSAXLE (Continued)
