Dodge Intrepid - Page 571

(44) Using a small chisel, carefully open stakes on
nut (Fig. 60).
(45) Use special tool 6497 and 6498 to remove the
transfer shaft nut or the output shaft nut (Fig. 61).
(46) Remove output shaft from case using a shop
press (Fig. 62).
Use special tool 6596 with a shop press to remove
front output shaft bearing cup (Fig. 63).

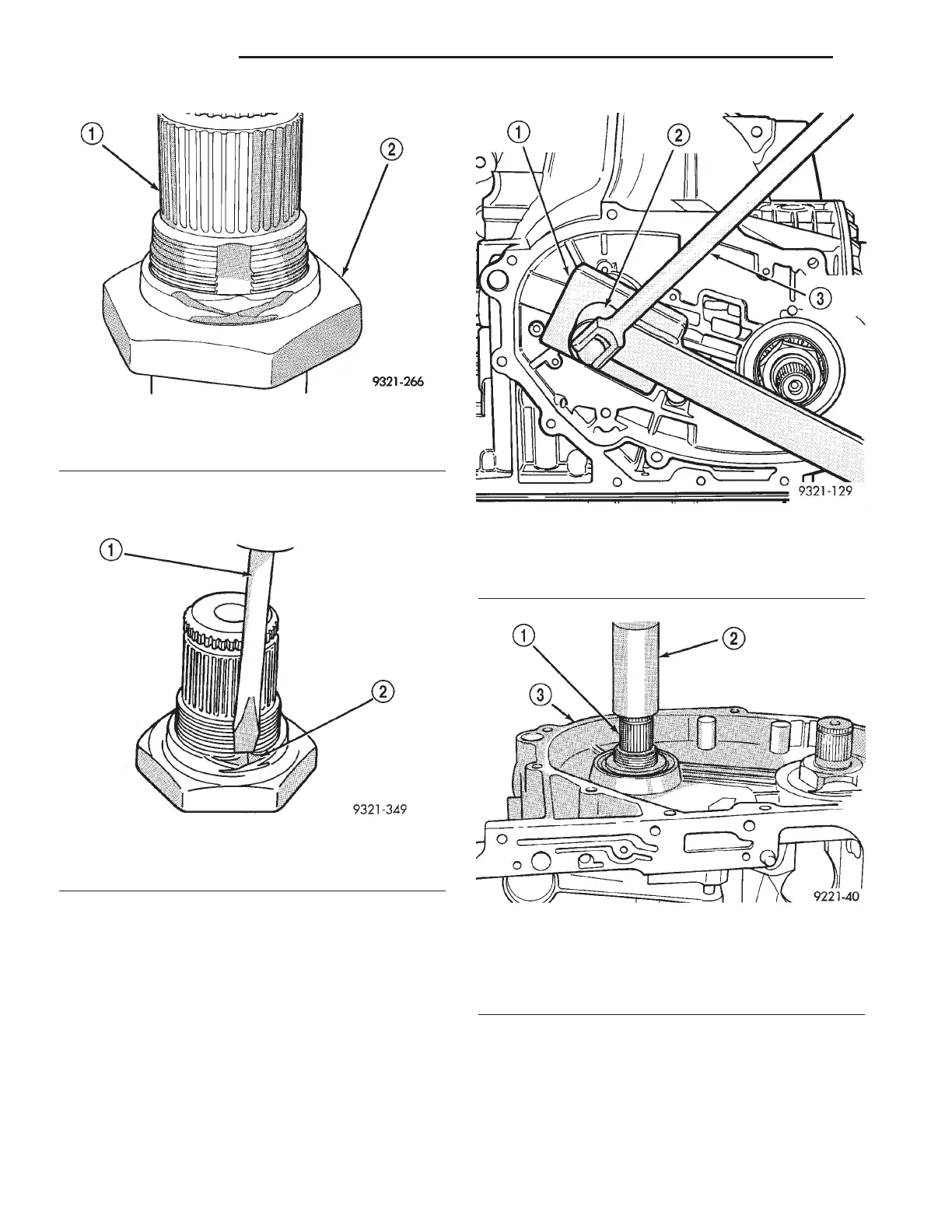

Fig. 59 Stake Grinding Pattern
1 - TRANSFER SHAFT
2 - TRANSFER SHAFT NUT
Fig. 60 Opening Nut Stakes
1 - CHISEL
2 - NUT STAKE
Fig. 61 Remove Output Shaft Nut
1 - SPECIAL TOOL 6497
2 - SPECIAL TOOL 6498
3 - BREAKER BAR
Fig. 62 Use Arbor Press to Remove Output Shaft
from Case
1 - OUTPUT SHAFT
2 - ARBOR PRESS
3 - TRANSAXLE CASE
21 - 24 TRANSAXLE LH
42LE AUTOMATIC TRANSAXLE (Continued)
