(9) Install low/reverse piston belleville spring into
position (Fig. 87).
(10) Install and load low/reverse spring compressor
tool as shown in (Fig. 88) (Fig. 89) to facilitate snap
ring installation.
(11) Install snap ring and remove compressor tool
(Fig. 90).

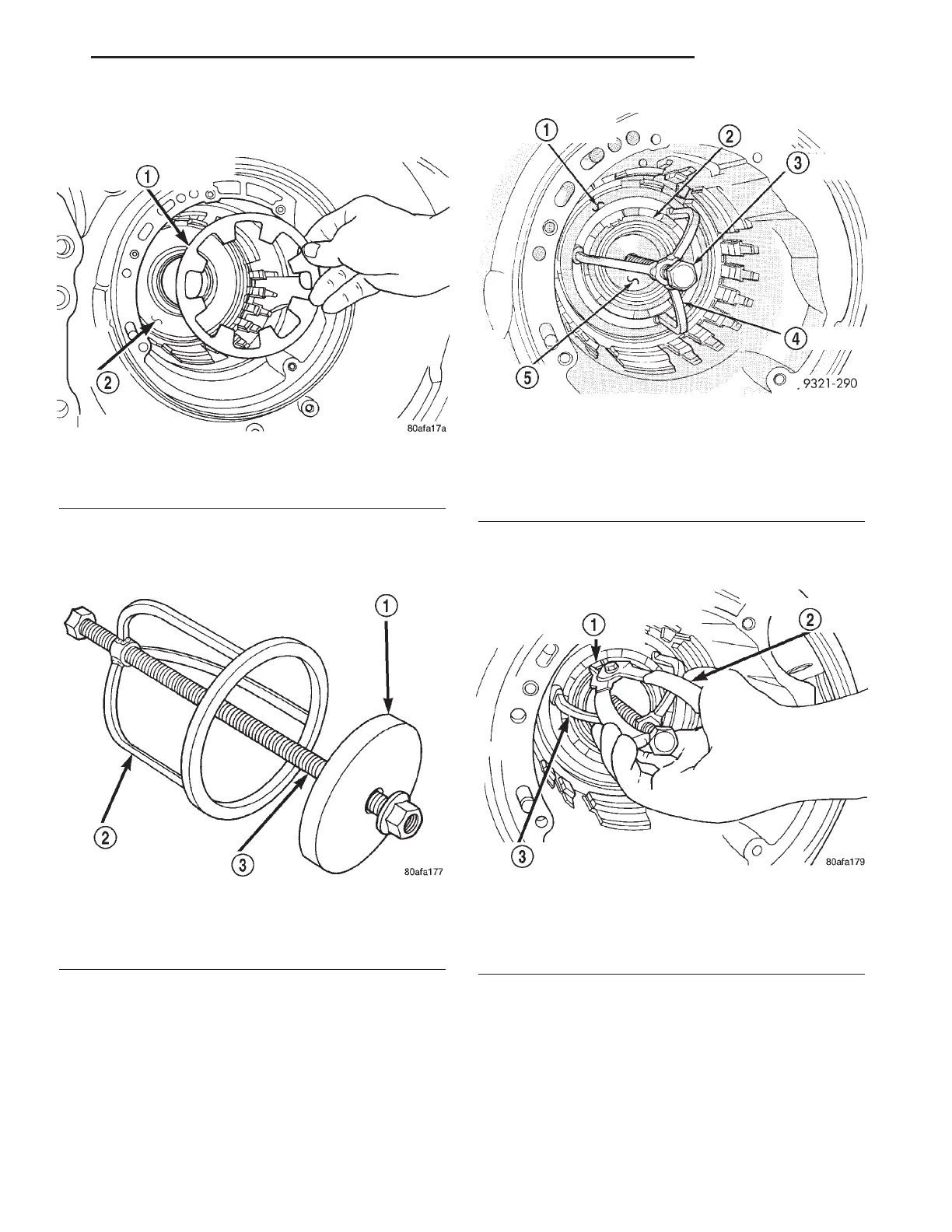

Fig. 87 Install Low/Reverse Piston Return Spring
1 - LOW/REVERSE PISTON RETURN SPRING
2 - PISTON
Fig. 88 Low/Reverse Spring Compressor Tool
1 - TOOL 6057
2 - TOOL 5059
3 - TOOL 5058–3
Fig. 89 Compressor Tool Installed
1 - LOW/REVERSE CLUTCH RETURN SPRING
2 - SNAP RING (INSTALL AS SHOWN)
3 - TOOL 5058A-3
4 - TOOL 5059A
5 - SPECIAL TOOL 6057
Fig. 90 Install Snap Ring
1 - SNAP RING OPENING MUST BE BETWEEN SPRING
LEVERS (AS SHOWN)
2 - SNAP RING PLIERS
3 - TOOL 6057
LH TRANSAXLE 21 - 31
42LE AUTOMATIC TRANSAXLE (Continued)
