NOTE: When installing the 2-4 clutch plates and
discs, the orientation should be alternated so the
pilot pads of adjacent plates do not align, refer to
(Fig. 117).
(31) Install 2/4 clutch belleville spring (Fig. 118)
(Fig. 119).
(32) Install 2/4 clutch retainer (Fig. 120).

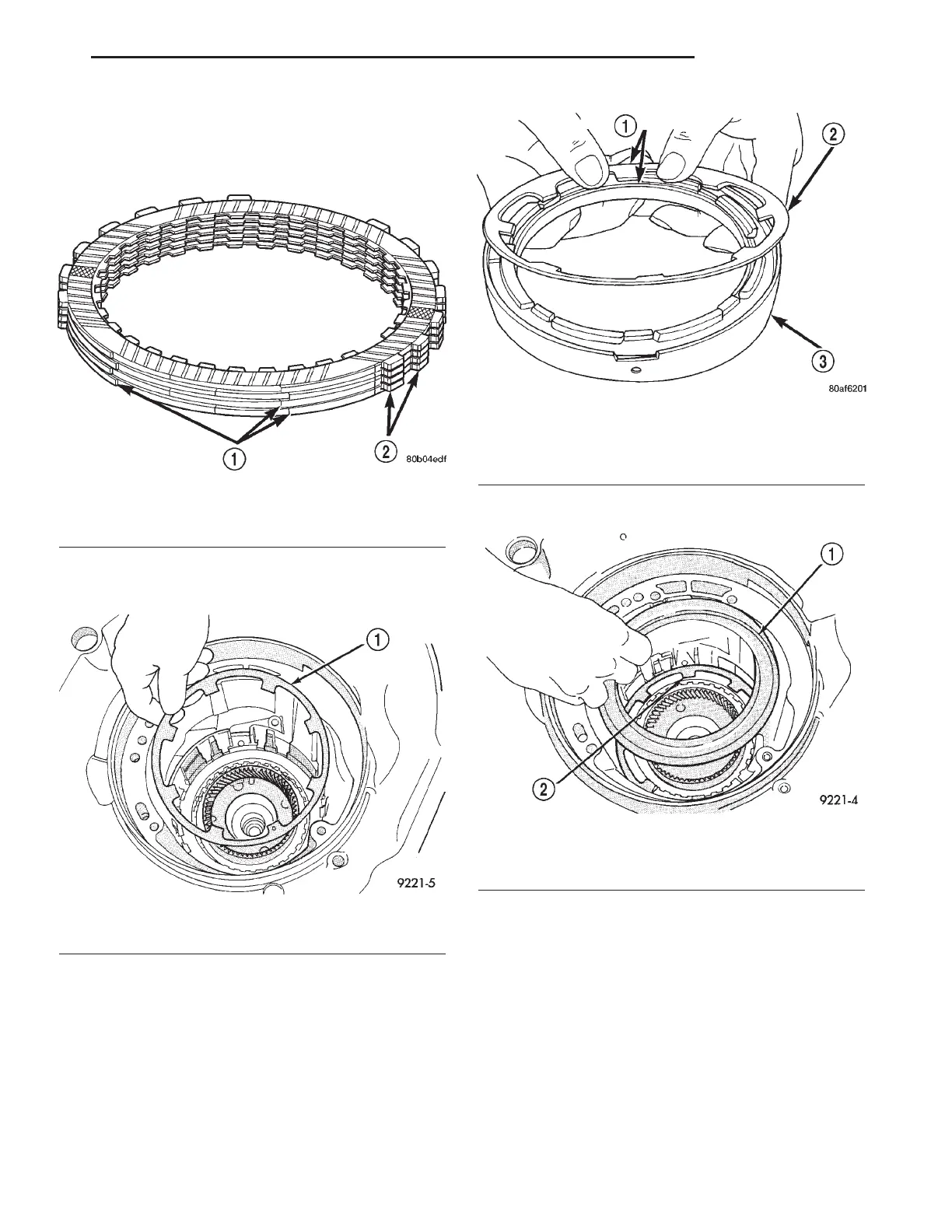

Fig. 117 Stagger 2/4 Clutch Plate Pads
1 - PILOT PADS
2 - LUGS
Fig. 118 Install 2/4 Clutch Return Spring
1 - 24 CLUTCH RETURN SPRING
Fig. 119 Proper Orientation of 2/4 Clutch
1 - NOTE POSITION
2 - RETURN SPRING
3 - 2/4 CLUTCH RETAINER
Fig. 120 Install 2/4 Clutch Retainer
1 - 24 CLUTCH RETAINER
2 - 24 CLUTCH RETURN SPRING
