(27) Install tapered snap ring (tapered side out) as
shown in (Fig. 113) (Fig. 114).
(28) Measure low/reverse clutch pack. Set up dial
indicator as shown in (Fig. 115). Press down clutch
pack with finger and zero dial indicator. Record mea-
surement in four (4) places and take average reading.
Low/Reverse clutch pack clearance is 0.86 to
1.52 (0.034 to 0.060 inch).
(29) Select the proper low/reverse reaction plate to
achieve specifications:
LOW/REVERSE REACTION PLATE CHART
PART NUMBER THICKNESS
4799846AA 5.88 mm (.232 in.)
4799847AA 6.14 mm (.242 in.)
4799848AA 6.40 mm (.252 in.)
4799849AA 6.66 mm (.262 in.)
4799855AA 6.92 mm (.273 in.)
(30) Install 2/4 clutch pack (Fig. 116). Stagger 2/4
clutch disc pads as shown in (Fig. 117).

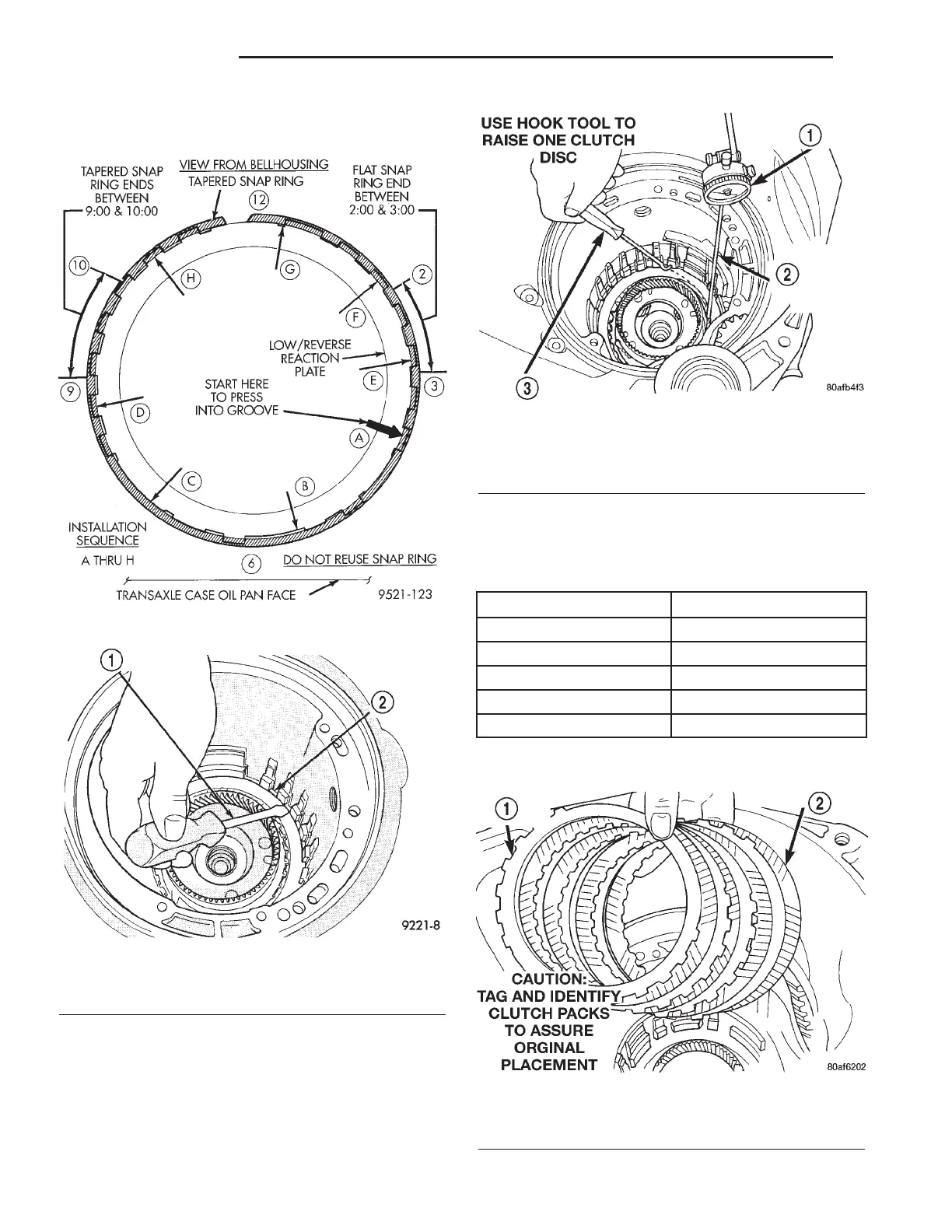

Fig. 113 Tapered Snap Ring Instructions
Fig. 114 Snap Ring Installed
1 - SCREWDRIVER
2 - TAPERED SNAP RING (INSTALL AS SHOWN)
Fig. 115 Check Low/Reverse Clutch Clearance
1 - DIAL INDICATOR
2 - DIAL INDICATOR TIP TOOL 6268
3 - HOOK TOOL
Fig. 116 Install 2/4 Clutch Pack
1 - CLUTCH PLATE (4)
2 - CLUTCH DISC (4)
21 - 38 TRANSAXLE LH
42LE AUTOMATIC TRANSAXLE (Continued)
