If differential was not disassembled, refer to Step
25.
DIFFERENTIAL ASSEMBLY
(1) Install differential carrier bearings using an
arbor press, driver handle C-4171, and Tool C-4340
(Fig. 203).
(2) Install differential pinion and side gears, and
pinion shaft (Fig. 204).
CAUTION: Use a new roll pin upon reassembly.
(3) Install pinion shaft roll pin (Fig. 205).
(4) Install side gear, stub shaft, and c-clip to differ-
ential support plate (Fig. 206).
CAUTION: Ring gear bolts are not reusable. When
reassembling, use new bolts.
CAUTION: When assembling differential halves, line
up notches on side of carrier.

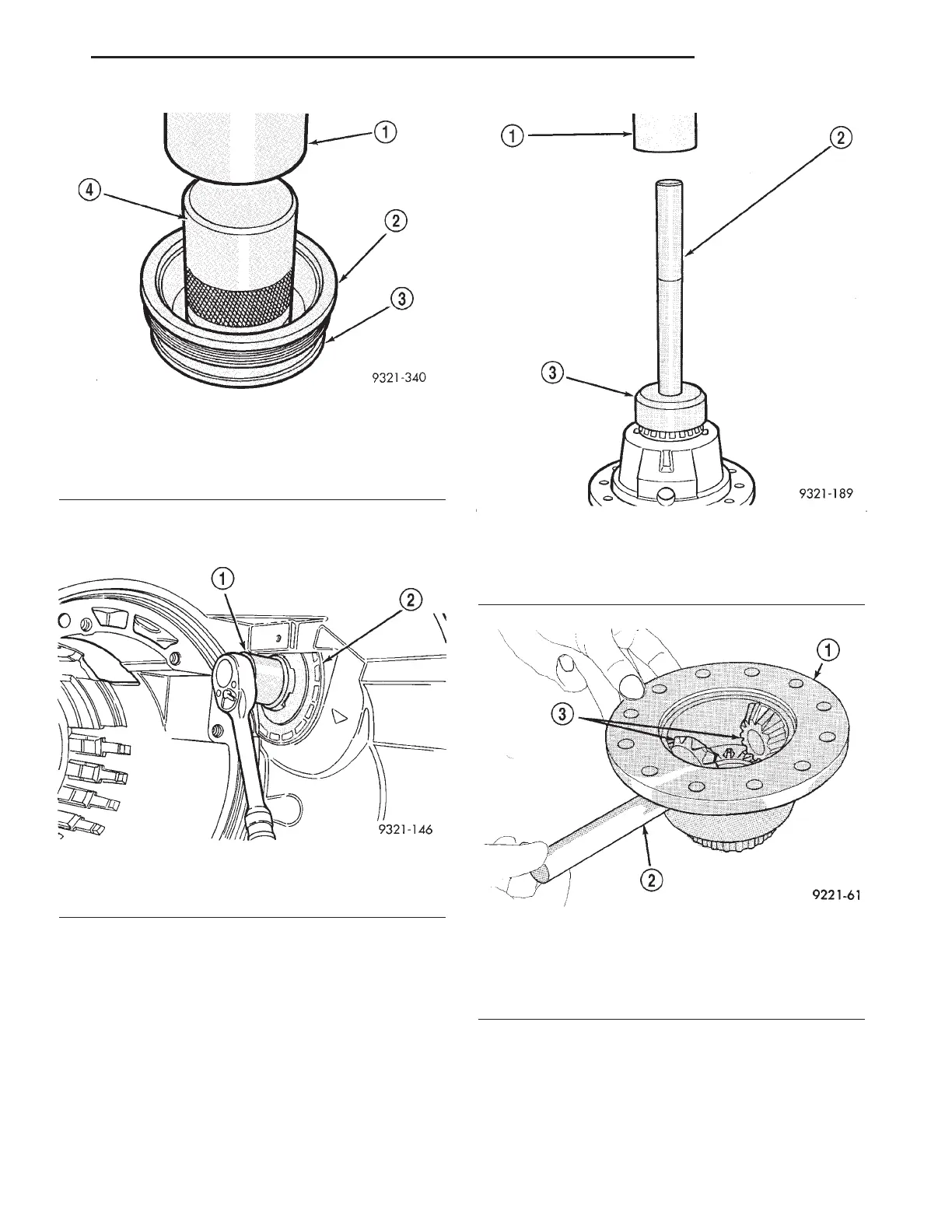

Fig. 201 Axle Shaft Seal Installation
1 - ARBOR PRESS
2 - OUTER DIFFERENTIAL ADJUSTER
3 - O-RING
4 - SPECIAL TOOL 6558
Fig. 202 Inner Adjuster Installation
1 - SPECIAL TOOL 6502–B
2 - INNER DIFFERENTIAL ADJUSTER
Fig. 203 Carrier Bearing Installation
1 - ARBOR PRESS
2 - HANDLE C-4171
3 - SPECIAL TOOL C-4340
Fig. 204 Install Differential Pinion Shaft and Remove
Pinion Gears and Side Gears
1 - DIFFERENTIAL CARRIER
2 - PINION SHAFT
3 - SIDE GEARS
LH TRANSAXLE 21 - 87
FINAL DRIVE (Continued)
