(5) Assemble support plate to differential. Install
ring gear and NEW bolts. Torque bolts to 95 N·m (70
ft. lbs.) (Fig. 207).
(25) Install differential assembly into the transaxle
case (Fig. 208).
(26) Install differential cover (Fig. 209). Do not
apply silicone sealant at this time. All bolts should be
installed and tightened.
(27) Install seal protector (special tool 6591) as
shown in (Fig. 210). Apply a thin film of gear oil on
the protector.
CAUTION: Lube threads and O-ring on adjuster
before installing. Failure to due so will result in
thread damage to the adjuster and transaxle case.

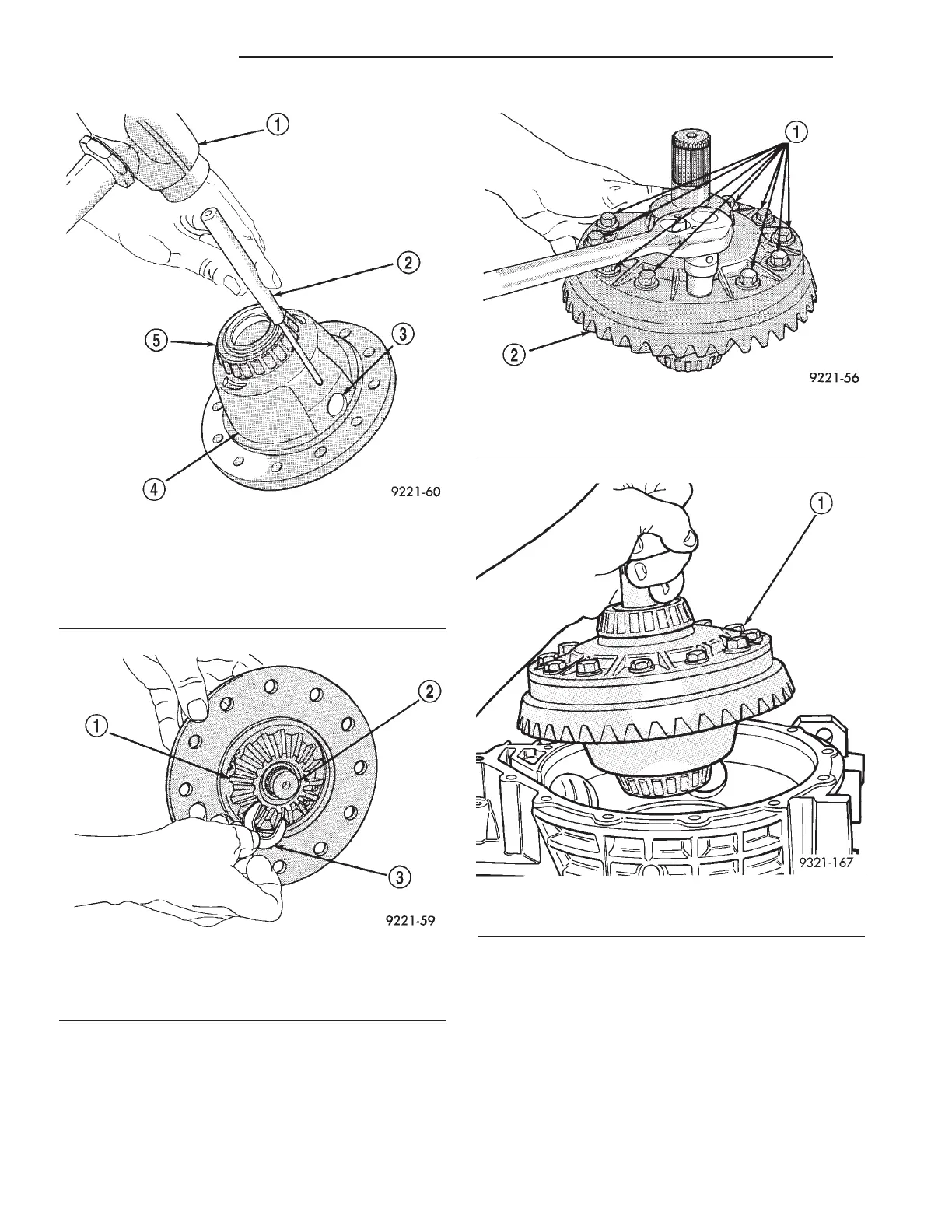

Fig. 205 Install Pinion Shaft Roll Pin
1 - HAMMER
2 - PIN PUNCH
3 - PINION SHAFT
4 - DIFFERENTIAL CARRIER
5 - DIFFERENTIAL BEARING
Fig. 206 Install Side Gear, Stub Shaft, and C-Clip
1 - SIDE GEAR
2 - STUB SHAFT
3 - “C” CLIP
Fig. 207 Install Ring Gear Bolts
1 - RING GEAR BOLTS
2 - RING GEAR
Fig. 208 Differential Assembly Installation
1 - DIFFERENTIAL ASSEMBLY
21 - 88 TRANSAXLE LH
FINAL DRIVE (Continued)
