(4) Pry up and remove reverse clutch reaction

plate (Fig. 262) (Fig. 263).

(5) Remove the reverse clutch pack (two fibers/one

steel) (Fig. 264).

NOTE: Tag reverse clutch pack for reassembly iden-

tification.

(6) Remove the OD/Reverse reaction plate snap

ring (Fig. 265).

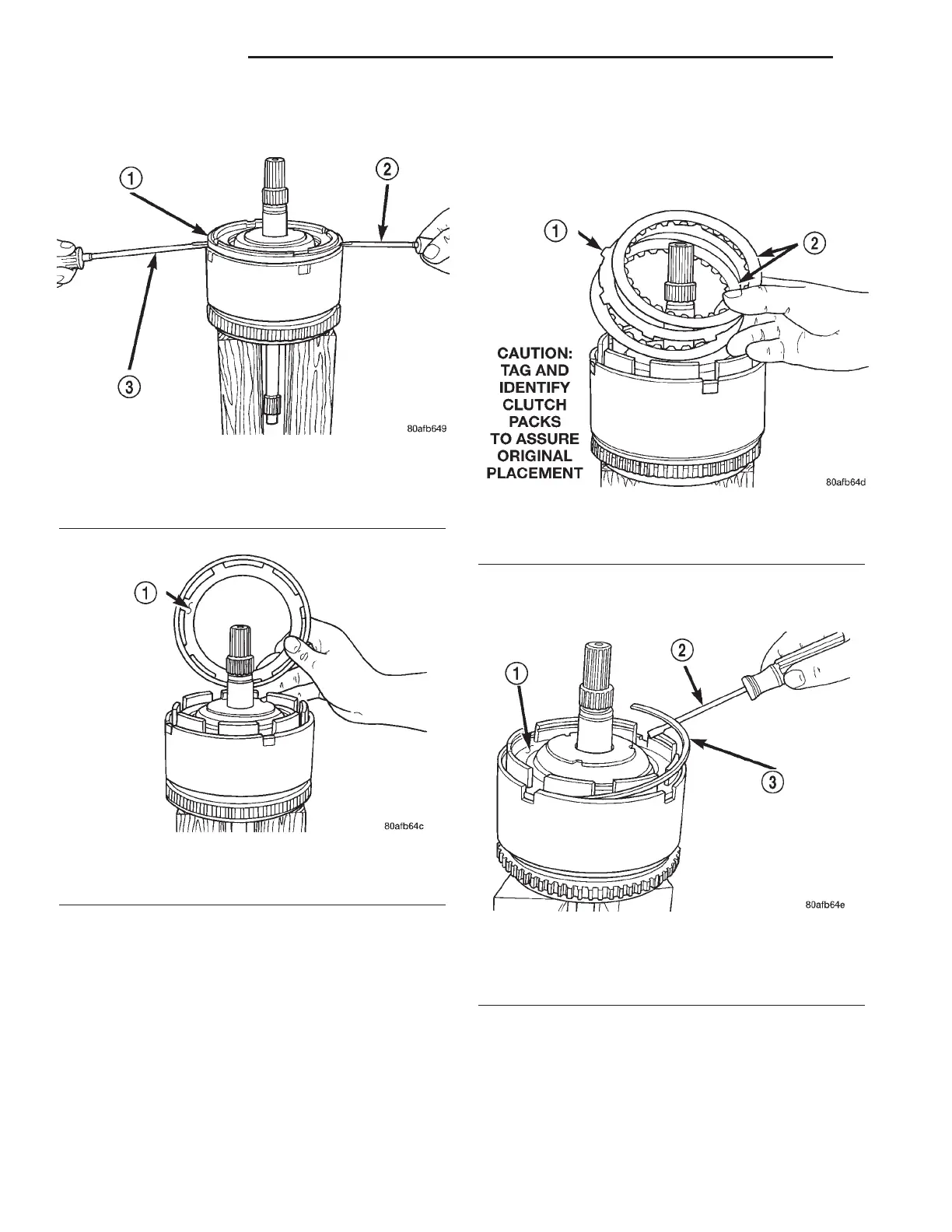

Fig. 262 Pry Reverse Clutch Reaction Plate

1 - REVERSE CLUTCH REACTION PLATE

2 - SCREWDRIVER

3 - SCREWDRIVER

Fig. 263 Reverse Clutch Reaction Plate

1 - REVERSE CLUTCH REACTION PLATE (INSTALL FLAT SIDE

DOWN)

Fig. 264 Reverse Clutch Pack

1 - REVERSE CLUTCH PLATE

2 - REVERSE CLUTCH DISC

Fig. 265 OD/Reverse Pressure Plate Snap Ring

1 - OD/REVERSE PRESSURE PLATE

2 - SCREWDRIVER

3 - OD/REVERSE PRESSURE PLATE SNAP RING

21 - 108 TRANSAXLE LH

INPUT CLUTCH ASSEMBLY (Continued)
