(5) Remove valve body stiffener plate (Fig. 419).
(6) Invert valve body assembly and remove trans-
fer plate-to-valve body screws (Fig. 420).
(7) Remove transfer/separator plate from valve
body (Fig. 421)
(8) Remove separator plate-to-transfer plate
screws (Fig. 422).

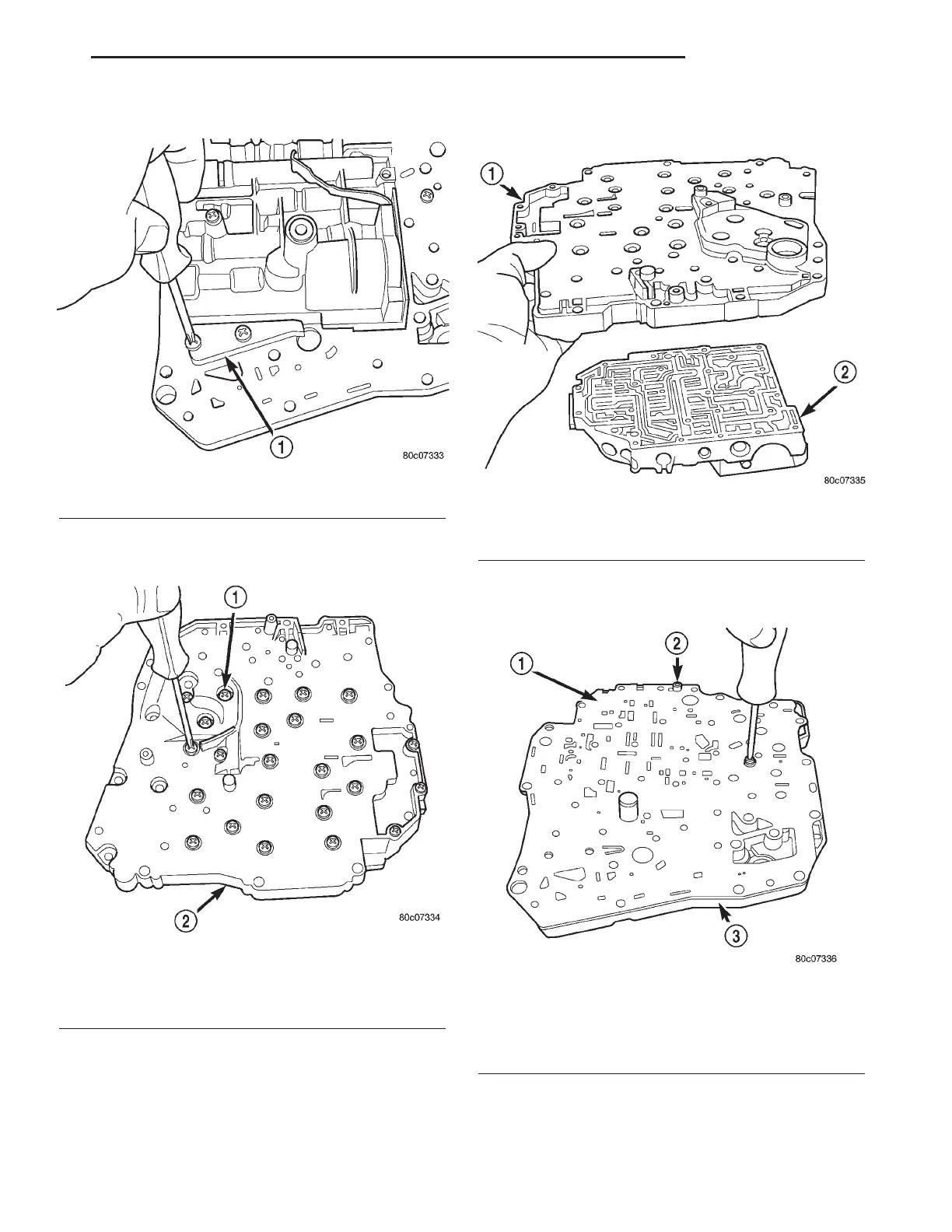

Fig. 419 Remove Stiffener Plate
1 - STIFFENER PLATE
Fig. 420 Remove Transfer Plate-to-Valve Body
Screws
1 - SCREW (24)
2 - TRANSFER PLATE
Fig. 421 Remove Transfer Plate to Valve Body
1 - TRANSFER PLATE
2 - VALVE BODY
Fig. 422 Remove Separator Plate-to-Transfer Plate
Screws
1 - SEPARATOR PLATE
2 - SCREW (2)
3 - TRANSFER PLATE
LH TRANSAXLE 21 - 159
VALVE BODY (Continued)
