(13) Install the stiffener plate (Fig. 444).

(14) Install the solenoid/pressure switch assembly

and to the transfer plate (Fig. 445) and torque to 6

N·m (35 in. lbs.).

(15) Install the manual shaft/rooster comb and

transmission range sensor to the valve body (Fig.

446).

(16) Install the TRS/manual shaft retaining screw

(Fig. 447) and torque to 5 N·m (45 in. lbs.).

(17) Install manual shaft seal.

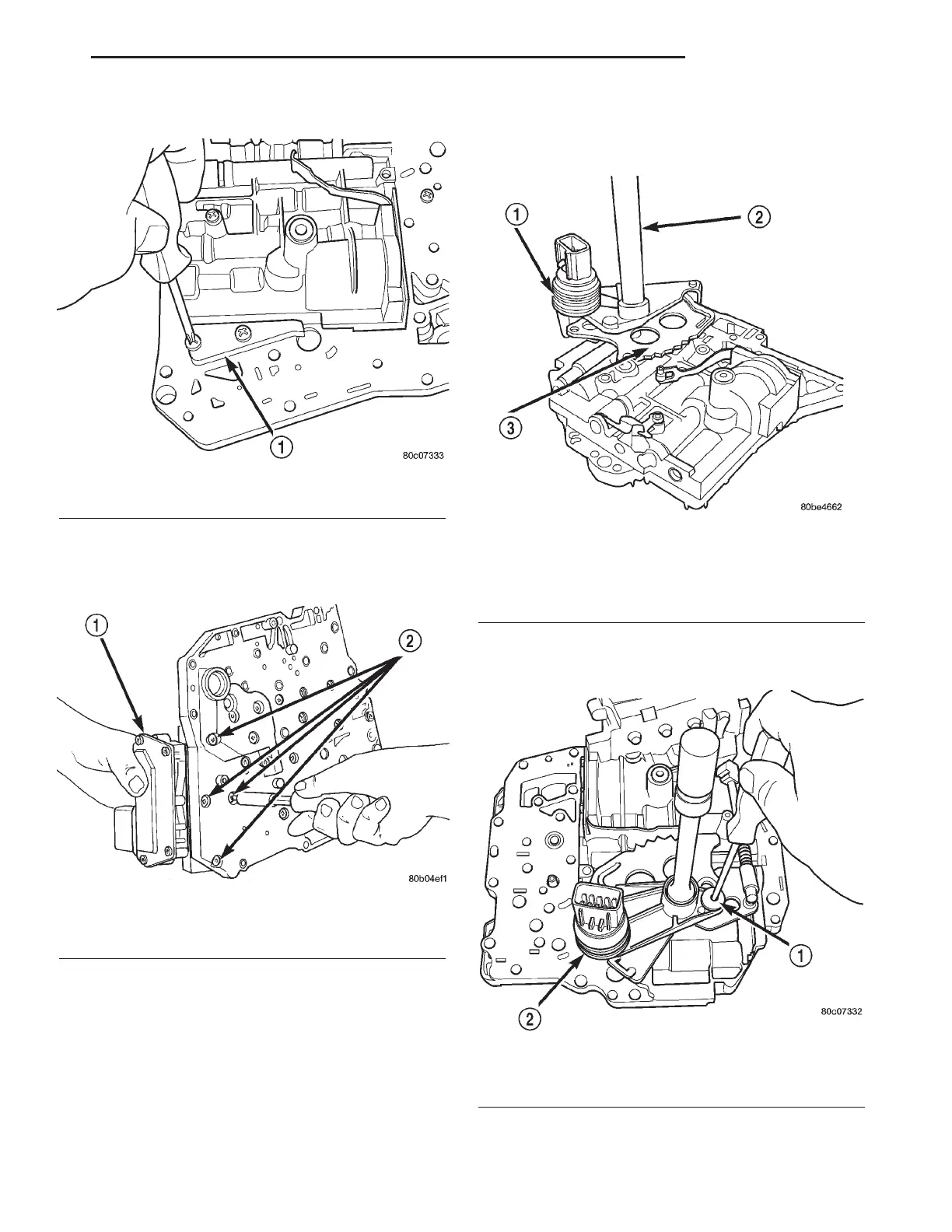

Fig. 444 Install Stiffener Plate

1 - STIFFENER PLATE

Fig. 445 Solenoid Retaining Screws

1 - SOLENOID/PRESSURE SWITCH ASSEMBLY

2 - RETAINING SCREWS

Fig. 446 Manual Shaft/Rooster Comb and

Transmission Range Sensor

1 - TRANSMISSION RANGE SENSOR

2 - MANUAL SHAFT

3 - ROOSTER COMB

Fig. 447 Manual Shaft Retaining Screw

1 - SCREW

2 - TRS

LH TRANSAXLE 21 - 167

VALVE BODY (Continued)
