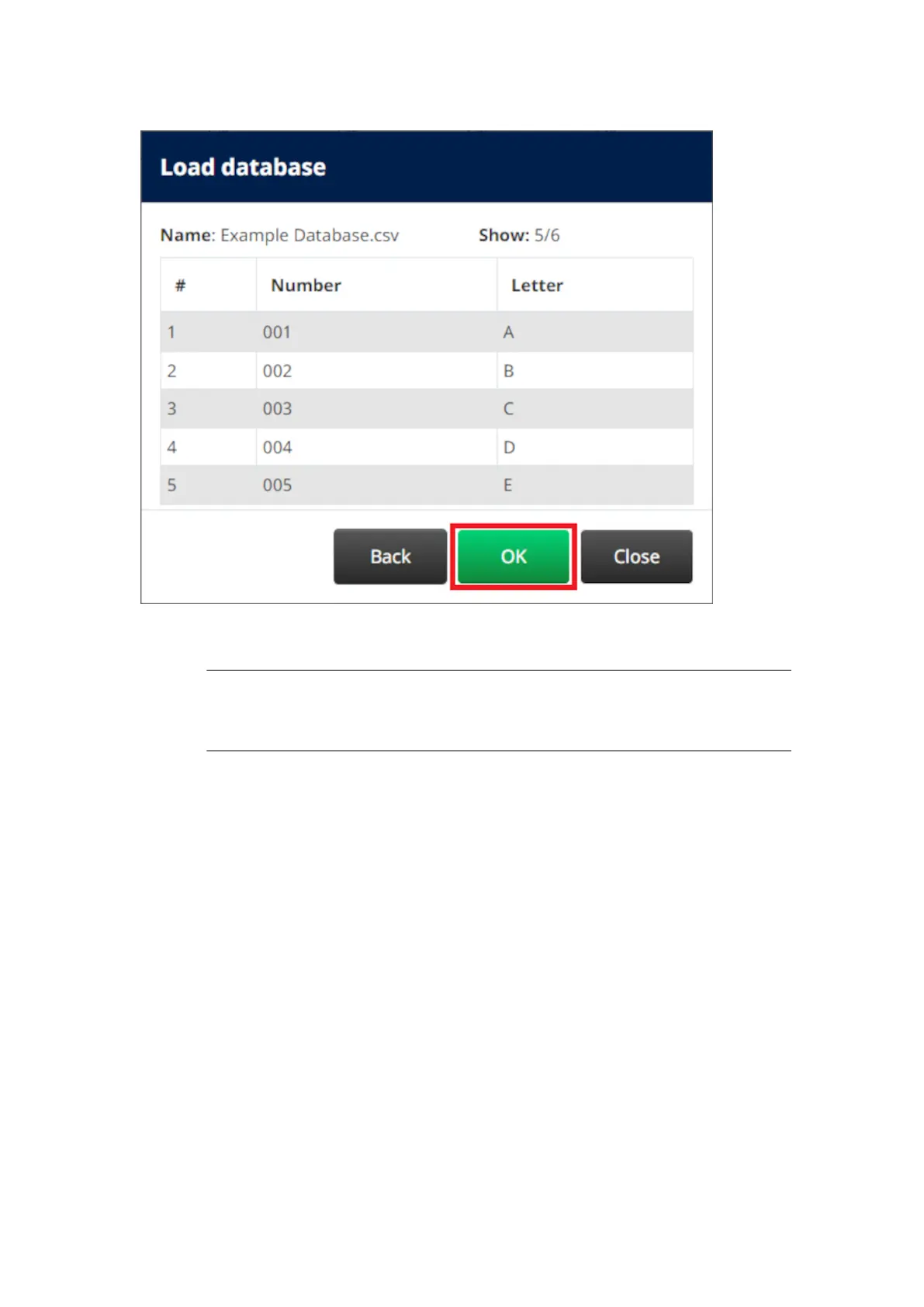

11. A list of items in the database will now be displayed, select OK to continue.11.

12.

Use the arrow icons, to move the database ﬁelds that will be printed from the Source list to12.

the Destination list.

1.Notes Items in the Source list will not be printed.1.

2. In the example below, the database items "Number" and "Letter" will be2.

printed.

OPERATION

114 EPT077343 EN - Issue 1 - 11 November 2022

Domino2
Amendment Record2
Preface Product Manual3
FCC Notice4
European EMC Statement4
Intended Use4
Software Credits5
Table of Contents6
Part 1 Health and Safety10
Introduction10
Warnings, Cautions and Notes11
Symbols11
Inks and Fluids Information13
Storage13
Fire Risk14
Spillages and Disposal14
Electro-Static Discharge15
Product/Battery End of Life16
USA State of California Battery Statement16
Part 2 System Description17
Introduction17
General17
Description17
Overview18
G50I Controller Overview18
GP Print Head Overview20
User Interface21
Specification22
Controller Specification22
GP Print Head Specification23
Printing Speed Table24
Pre-Installed Fonts25
Controller IO Socket Description26
Maximum Label Width28
User Interface Overview29
Main Interface Tool Bar29
Home Screen Print Information32
Label Template Designer35
Part 3 Installation38
Unpacking38
Location38
Vertical Installation39
Horizontal Installation43
Anti Shock (Optional) Installation47
Print Head Orientation48
Side View48
Front View49
Print Head Connection50
Ink Cartridge Installation51
Controller Electrical Supply53
Print Head Product Detect Sensor Calibration55
External Device Connection56
External Product Detect Sensor56
External Shaft Encoder58
Alarm Beacon59
IO Connection60
Print Head Settings61
Print Quality61
Alignment62
System Settings63
Encoder Input - Internal63
Encoder Input - External64
Print Trigger - Continuous65
Print Trigger - Sensor66
Bi-Direction67
Auto Switch Channel68
High Speed68
Print Static Image69
Skew Angle69
Auto Jet (Nozzle Purge)70
Realtime71
Advanced Settings72
Display72
User Mode (Security)73
Remote78
High Quality79
IO Signal80
Backup and Restore81
Common82
Configuring Print Controls83
VDC Settings84
VDC (Variable Data Connection)84
Rule87
Monitor90
Network Settings91
IP Address91
DNS Server Address92
Control the Printer Via Web Browser93
Power Save Settings94
Monitor94
Language Settings95
Import Language95
Export Language96
Delete Language96
Font Settings97
Import Font97
Delete Font97
Part 4 Operation98
Start up98
Load a Label to Print101
Start Printing102
Stop Printing102
Shut down103
Design a Label Template106
Add Objects to Label Template107
Add a Text Object107
Add a Counter Object109
Add a Database Object112
Add a Barcode Object123
Add a Static Graphics Object126
Add a Dynamic Graphics Object128
Add a Clocks Object137
Add a Shift Code Object142
Add a Line Object144
Setting Name144
Add a Boxlot Object145
Text Align147
Remove Blank Line147
If the Object Has more than 1 Line, Set the Alignment147
Left Center Right147
Remove Blank Lines from the Object147
Remove Leading Spaces from the Object147
Save Label Template148
Save Label Template with Different Name148
Edit Object Properties149
Delete Label Template149
Import Label Template150
Export Label Template151
Log152
Export Log153
Statistic Counters154
Part 5 Maintenance & Troubleshooting155
Error Description155
Description155
Print Quality Faults156
Update Software/Firmware157
Replace Ink Cartridge158
Purge Blocked Cartridge Nozzles161
Clean the Cartridge Nozzles162
Clean the Print Head165
Clean the Controller168
