112 of 152 PSS5000/TEMA/803046/05
PSS 5000 – Technical Manual
9 W&M (Menu W)
9.7 Checking Devices (Menu W.7)
Overview of Checking
Devices menu
From the sub-menus under the Checking Devices menu, you can see which de-
vices are online and get status and error information for the forecourt devices.
The
Checking Devices menu is divided into the following sub-menus:
• ‘9.7.1 Display Error (Menu W.7.1)’ on page 113
• ‘9.7.2 Send Error Security Telegram (Menu W.7.2)’ on page 113
• ‘9.7.3 LAM Code Error (Menu W.7.3)’ on page 114
• ‘9.7.4 RTC Error (Menu W.7.4)’ on page 115
• ‘9.7.5 Trans Memory (Menu W.7.5)’ on page 116
Description of the
Checking Devices menu
The Checking Devices menu is a way to check/test the functionality of the PSS
5000. By activating the built-in checking device(s), which simulate/introduce
various errors or malfunction states, and observing the reaction(s), it is possi-
ble to see if the tested functions in the PSS 5000 are behaving correctly.
To activate checking
devices with web service
pages
This procedure describes how to use the checking device functions in the Ser-
vice Menu. By simulating an error on an operational critical function you are
able to make sure that the checking facility in the PSS 5000 registers the error
and responds in the correct manner.
1. Select W W&M → W.7 Checking Devices → W.7.x <sub-menu>.
Where the <sub-menu> selection is one of those present in the list.
The steps below provide an example for using the Checking Devices menu,
where the sub-menu
W.7.1 Display Error is selected.
2. Select W W&M → W.7 Checking Devices → W.7.1 Display Error.

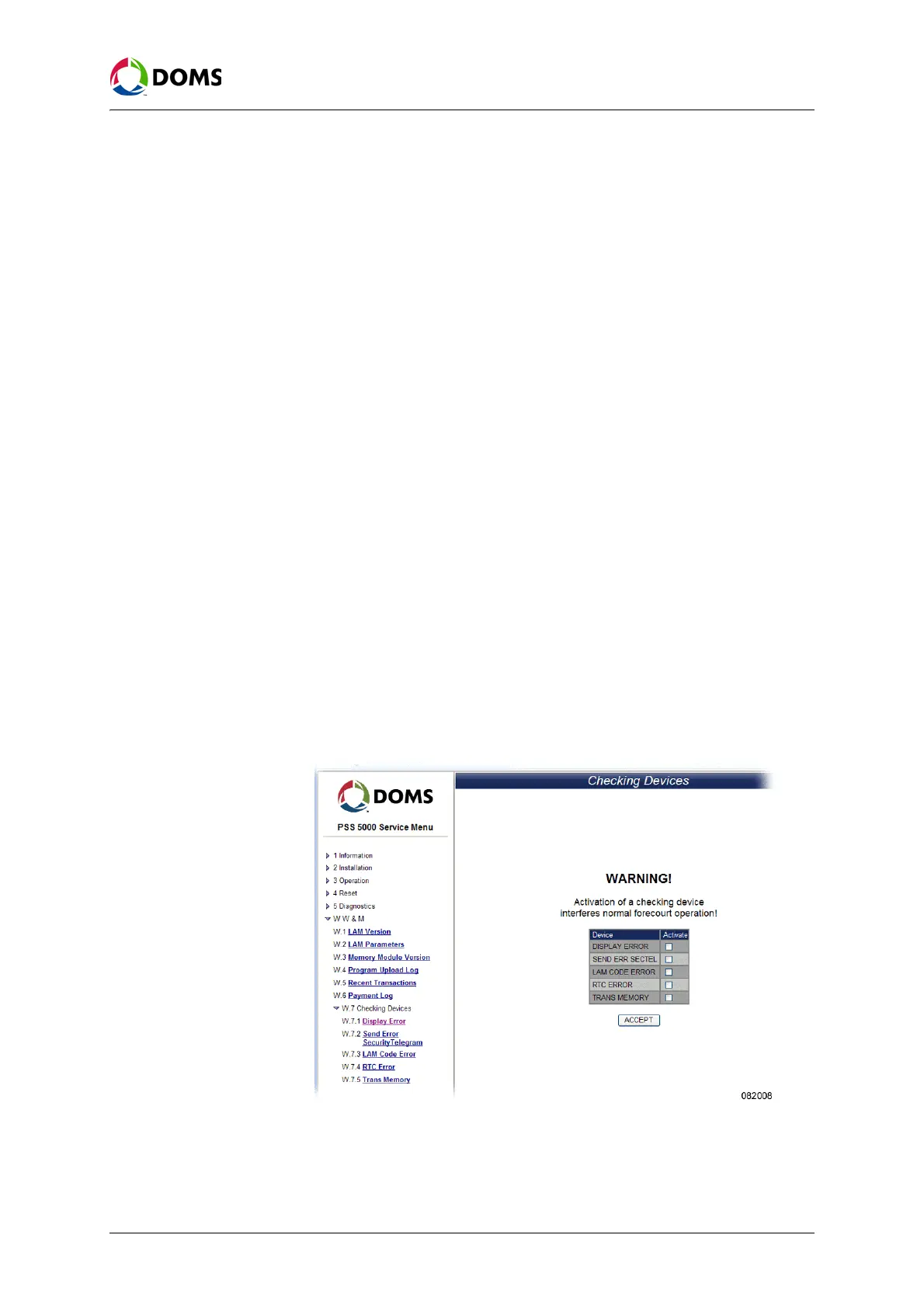

The
Checking Devices window appears.
Note: Although it is possible to select more than one checking device, we recom-
mend that you select only one. Alternatively, start with a single checking
device and then, if necessary, select an additional one.
3. Select the checking device option you want to activate.
