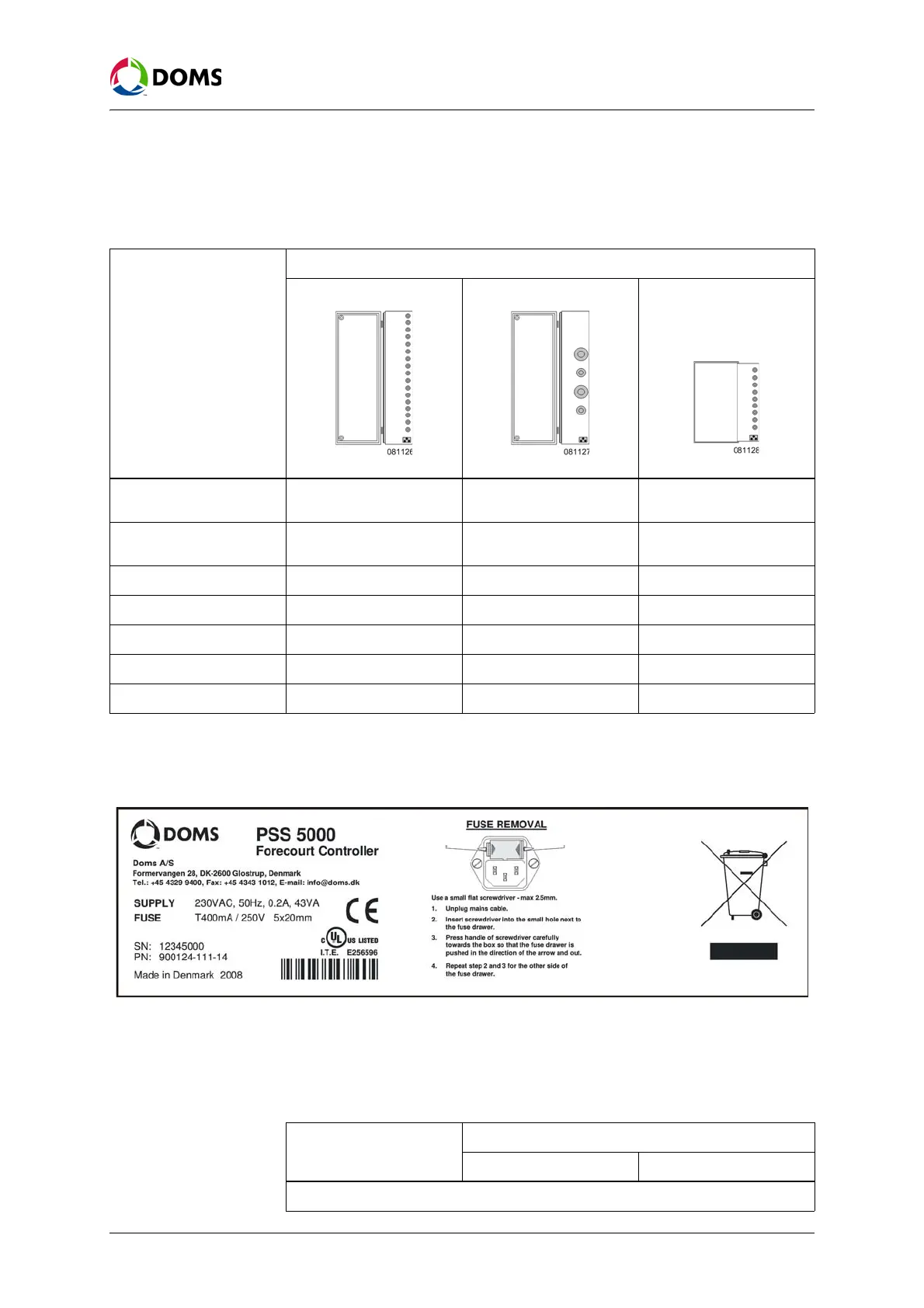

12 of 152 PSS5000/TEMA/803046/05
PSS 5000 – Technical Manual
2 System Description
PSS 5000 cabinet types
and specifications
The product specifications for the PSS 5000 cabinet are presented in the table
below:
Note: The weights given are for the basic cabinet with a power supply and
CPU board (HIMs are not included).
The external label On the outside of the cabinet, located above the power input socket, is a label.
This label provides the serial number of the PSS 5000 and informs you which
power supply voltage the PSS 5000 can use.
2.1.2 PSS 5000 Computer Processor Boards
PSS 5000 CPU Board
specifications
The product specifications for the CPU boards of the PSS 5000 are presented
in the table below:
Cabinet Version
Standard - cable Standard - conduit Compact
Dimensions:
(HxWxD)
600x200x124 mm
(23.5x7.9 x 4.9")
600x200x124 mm
(23.5x7.9 x4.9")
363x200x100 mm
(14.3x7.9 x3.9")
Max. number of single-
width modules:
14 14 6
Material: Metal Metal Metal
Weight: 8kg (17.6 lbs) 8kg (17.6 lbs) 5kg (11 lbs)
CE + UL Approved: Yes Yes Yes
Hinged door: Yes Yes Yes
No. of grommets: 17 (cables) 4 (conduits) 9 (cables)
Parameters
CPU Board Version
CPB505 CPB509
CPU Specs
