PSS 5000 – Technical Manual

1 Architectural Overview

1.2 PSS 5000 With a Network Connection

Illustration of a system

using an Ethernet

network

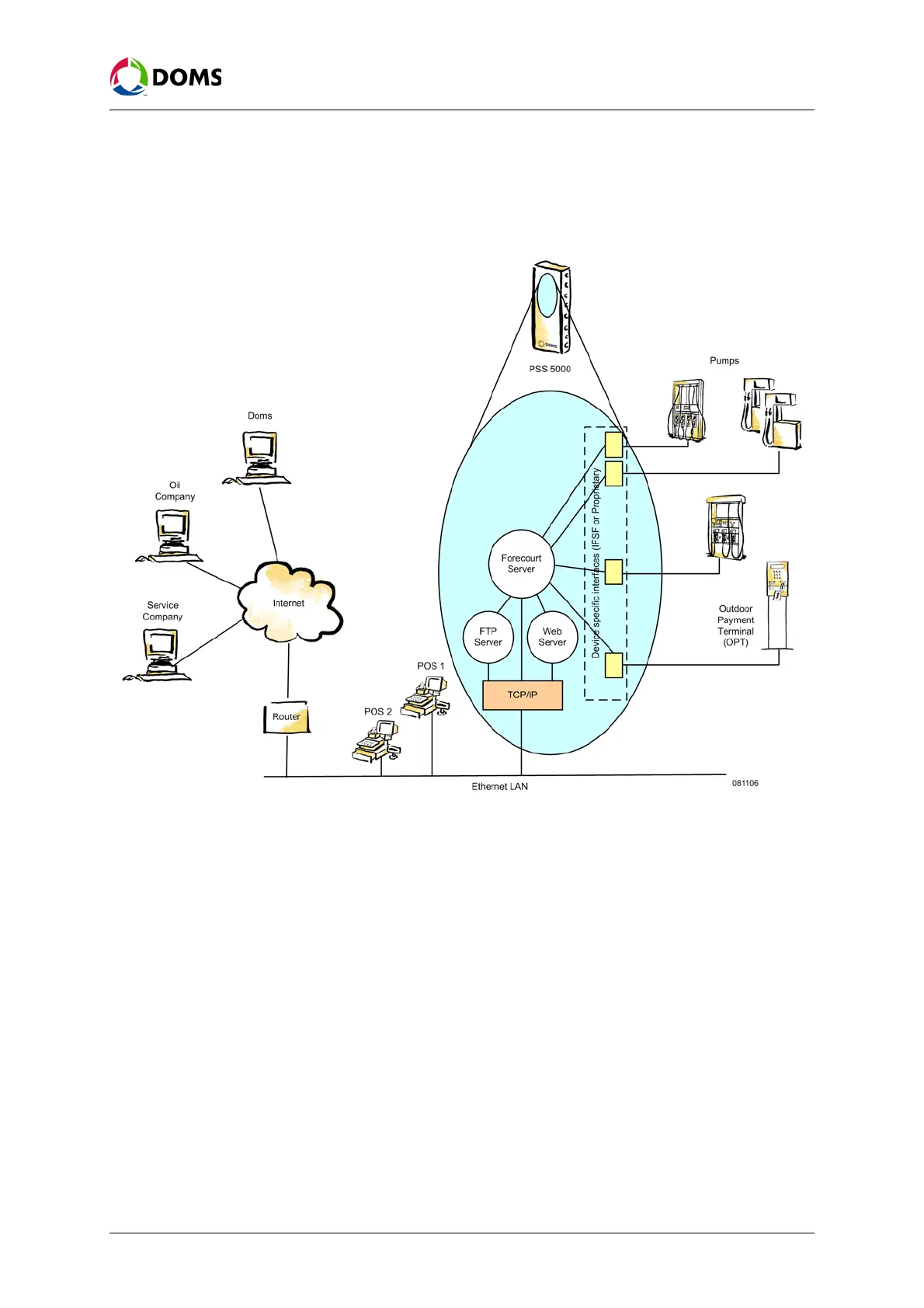

This illustration shows how POS terminals can be used by connecting them to

the PSS 5000 using an Ethernet connection.

Default Chapter2
- Legal Notices2
- About this Documentation2
- Table of Contents3
Part I: Getting to Know the PSS 50007
1 Architectural Overview8
- PSS 5000 Without a Network Connection8
- PSS 5000 with a Network Connection9
- PSS 5000 in a Mixed Configuration10
2 System Description11
- PSS 5000 Hardware11
- PSS 5000 Software14
3 Configuration and Service20
- Configuration and Service Menus Access20
  - Local Service Panel20
  - Web Service23
- Software Changes24
Part II: Using the Service Menus26
4 Information (Menu 1)27
- Program Versions (Menu 1.1)27
- Board Info (Menu 1.2)28
  - Production (Menu 1.2.1)28
  - Sealing Switch (Menu 1.2.2)30
- SW Blocks (Menu 1.3)31
- Protocols (Menu 1.4)31
- LAM (Menu 1.5)32
5 Installation (Menu 2)33
- Protocol to Port Assignment (Menu 2.1)33
  - Limitations35
- Date and Time (Menu 2.2)36
- Communication Setup (Menu 2.3)37
- System Profile (Menu 2.4)46
- Application Setup (Menu 2.5)51
- Software Upload (Menu 2.6)53
- Peripheral Configuration (Menu 2.7)57
  - Memory Module (Menu 2.7.1)58
- Backup (Menu 2.8)59
6 Operation (Menu 3)61
- Enter Fallback Mode (Menu 3.1)61
- Grade Prices (Menu 3.2)62
- FP Transactions (Menu 3.3)64
  - Monitor (Menu 3.3.1)64
  - Log (Menu 3.3.2)64
- Payment Server (Menu 3.4)65
- Operation Mode (Menu 3.5)66
- Menu 3.6 Reserved for Future Use67
- Operational Status (Menu 3.7)67
- Teleterminal (Menu 3.8)68
- Reconciliation Report (Menu 3.9)68
7 Reset (Menu 4)72
- Soft Reset (Menu 4.1)72
- Master Reset (Menu 4.2)73
- Super Master Reset (Menu 4.3)74
8 Diagnostics (Menu 5)76
- Forecourt Devices (Menu 5.1)76
- System Logs (Menu 5.2)87
- Communication (Menu 5.3)94
- Peep (Menu 5.4)97
- Test (Menu 5.5)100
- Peripherals (Menu 5.6)100
1000 M (Menu W)105
- LAM Version (Menu W.1)105
- LAM Parameters (Menu W.2)106
- Memory Module Version (Menu W.3)108
- Program Upload Log (Menu W.4)109
- Recent Transactions (Menu W.5)110
- Payment Log (Menu W.6)110
- Checking Devices (Menu W.7)112
Part III: Reference Information117
A File Formats in the PSS 5000118
- Recent Transactions File Format118
- Transaction Log File Format119
- Upload Log File Format120
B Upload Help Tools122
C Web Service Connections126
- PC and Browser Requirements126
- Ethernet Connections126
- Service Port Connection126
D Virtual File System131
- The Virtual File System131
- System Setup131
- Board Upload Log132
- Load Response133
- Hardware Information134
- Ok2Load File135
- Boot Information135
- LAM (Legal Authority Module) Information136
- Application Information137
- D.10 Board Error Log137
EPSS 5000 Reference Information138
- List of Abbreviations138
- List of Terms139
- Referenced Documents140
FPSS 5000 XML Output141
- Accessing the XML Files141
- Config.xml File142
- Site_Sta.xml File142
- Site_Rep.xml File143
G Revision Information145
Index147
