DMM-0200 Product User Guide
159 Swanson Road  Boxborough, MA 01719  Tel: 508-475-3400  Email: sales@dovermotion.com

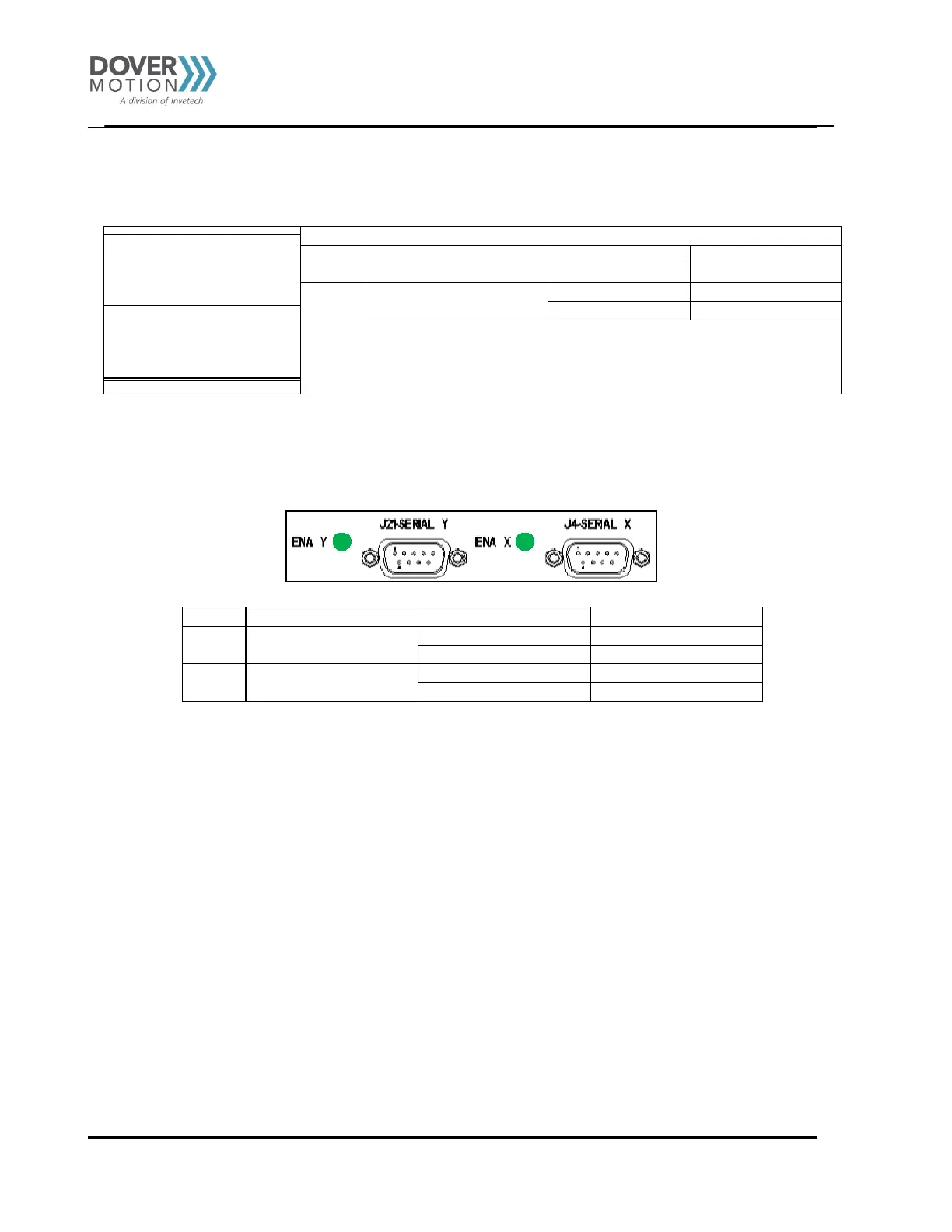

Rear Panel LEDs
Fuse LEDs
LED
Description
Possible States
Fuse X
Indicates that the fuse on X
Not illuminated
Fuse is blown
axis is ok
Illuminated green
No error
Fuse Y
Indicates that the fuse on Y
Not illuminated
Fuse is blown
axis is ok
Illuminated green
No error
Table 16 Fuse LEDs
Enable LEDs
LED
Description
Possible States
ENA X
Indicates that the axis is
enabled
Not illuminated
Axis is not enabled
Illuminated green
Axis is enabled
ENA Y
Indicates that the axis is
enabled
Not illuminated
Axis is not enabled
Illuminated green
Axis is enabled
Table 17 Enable LEDs
