Dover DMM-0200 - Encoder Input Connection; Analog Inputs; Figure 7 Encoder Inputs; Figure 8 Analog Inputs

Page 33 of 112
DMM-0200 Product User Guide
159 Swanson Road  Boxborough, MA 01719  Tel: 508-475-3400  Email: sales@dovermotion.com
Encoder Input Connection
Both single-ended and differential quadrature encoder inputs are accepted.
When using single-ended encoders, use the /A, /B, and /Z inputs.
+5V supply and Ground signals are available to power the encoder. Make sure that the total current usage is less than
200mA for the +5V.
The maximum encoder frequency is 5MHz.

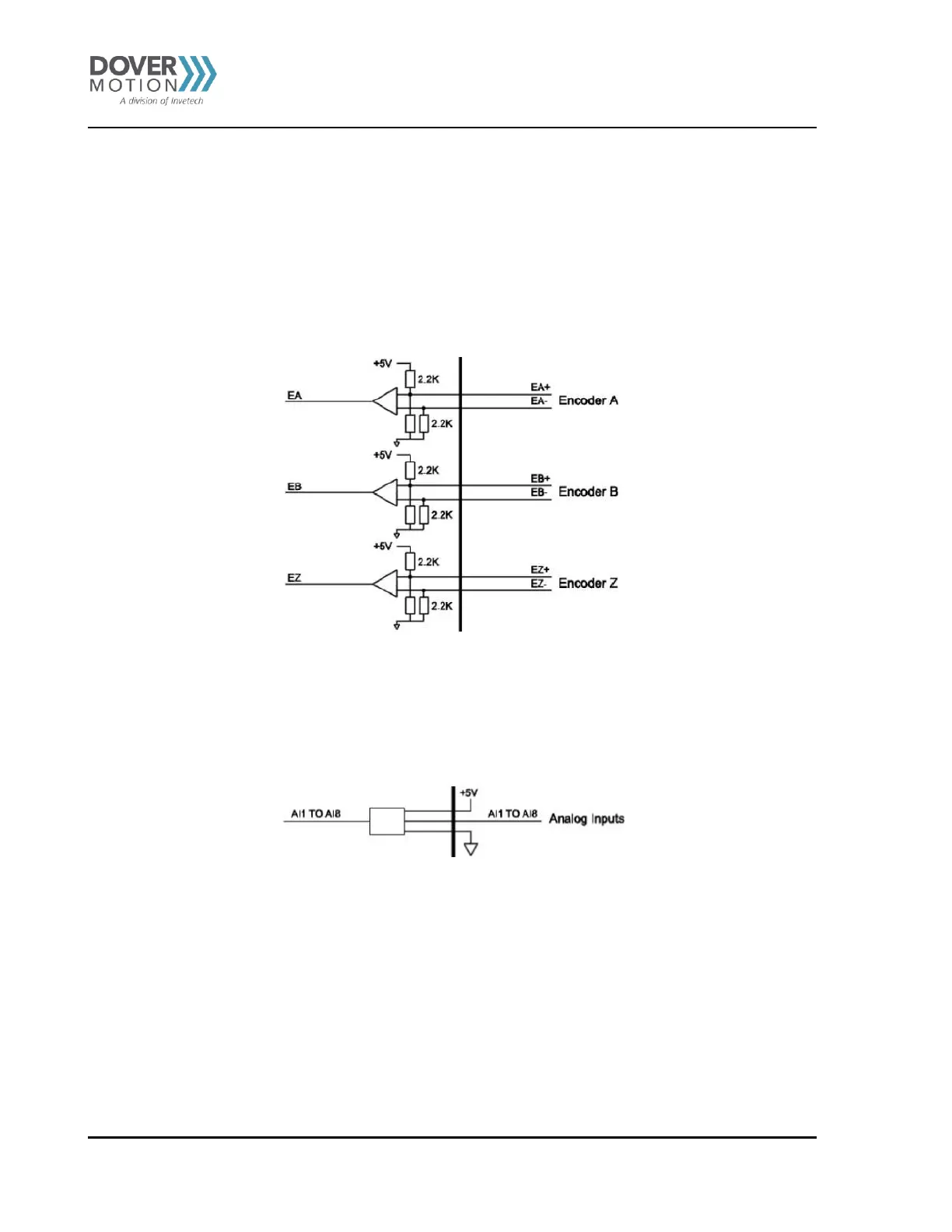

Figure 7 Encoder Inputs
Analog Inputs
8 x 10-bit analog inputs are available on the DMM-0200. Use AI[1-8] command to read the analog input value. Range
is from 0-5000 mV.
Figure 8 Analog Inputs
