What's what

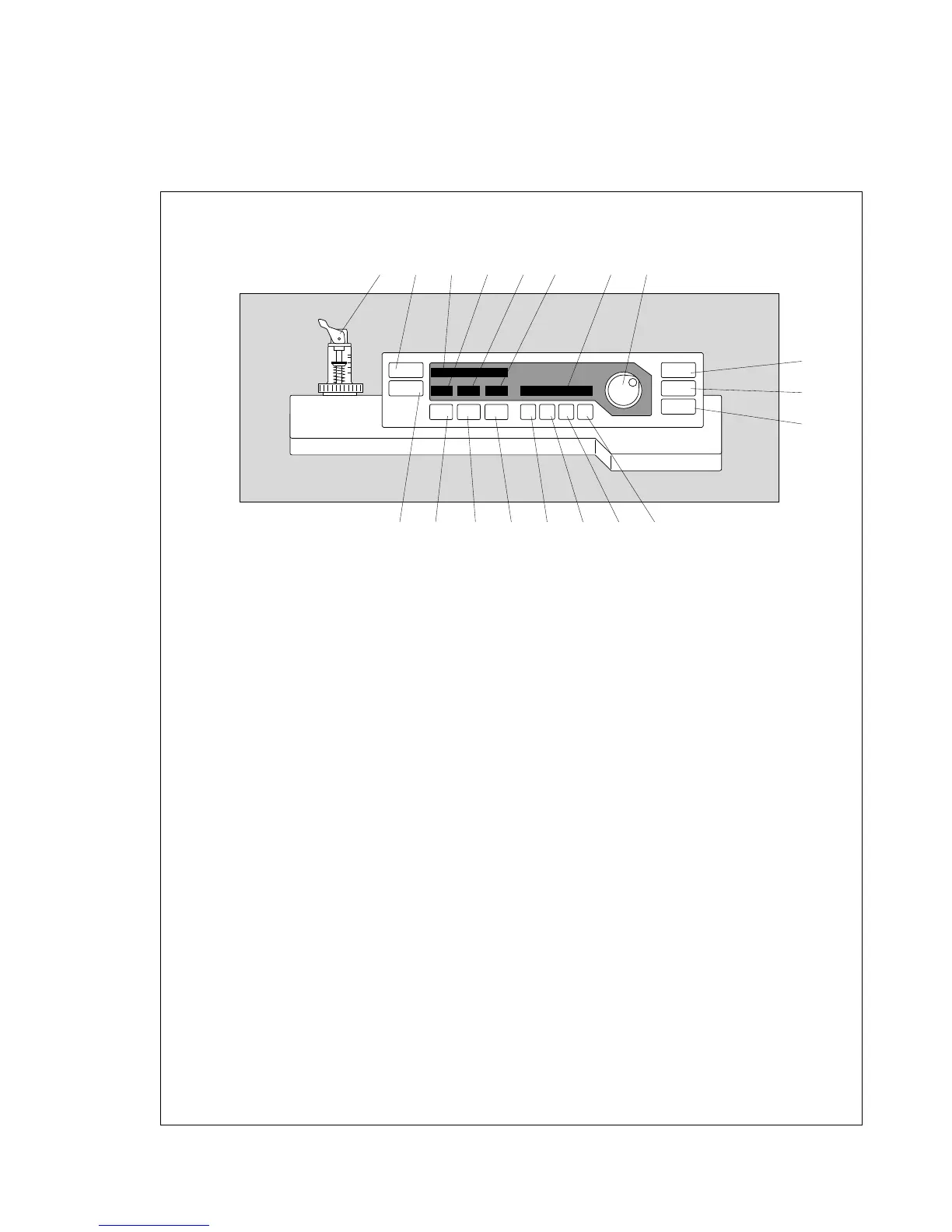

Operating elements and displays on ventilator
1 Pressure limiting valve (APL) with Manual/Spontaneous changeover
2 MAN/SPONT key for manual ventilation/spontaneous breathing
3 Bar graph of relative piston movement [%]
4 Indication of the set maximum pressure (Pmax)
5 Indication of the set tidal volume (VT)
6 Indication of the ventilation frequency (fIPPV)
7 Window for interactive settings and selection
8 Rotary control for settings and selection (confirmation)
9 Key for leakage test and compliance measurement
10 Key for mechanically-aided spontaneous breathing (SIMV)
11 Key for invoking »standby« mode
12 Key for automatic ventilation (IPPV)
13 Key for setting the maximum pressure (Pmax)
14 Key for setting the tidal volume (VT)
15 Key for setting the ventilation frequency (fIPPV)
16 Key for setting the ratio of inspiration time to expiration time (TI:TE)
17 Key for setting the ratio of inspiration pause time to inspiration time (TIP:TI)
18 Key for setting the positive end-expiratory pressure (PEEP). Only possible with IPPV!
19 Key for setting the frequency for mechanically-aided spontaneous breathing (fIMV)
MAN
SPONT
IPPV
TEST
SIMV
O
Pmax VT
fIPPV TI:TE
fIMV
TIP:TI PEEP
1 2
4 5 6
7
8
3
12
9
10
11
13
14
15
16
17
18
19
Operating elements and displays on ventilator
