Dräger Cato - Configuration During Operation

Configuration during operation
The menu displayed during operation shows the functions
required for measuring mode. The functions are selected
as described for other menus. The settings made here only
apply for the present operation.

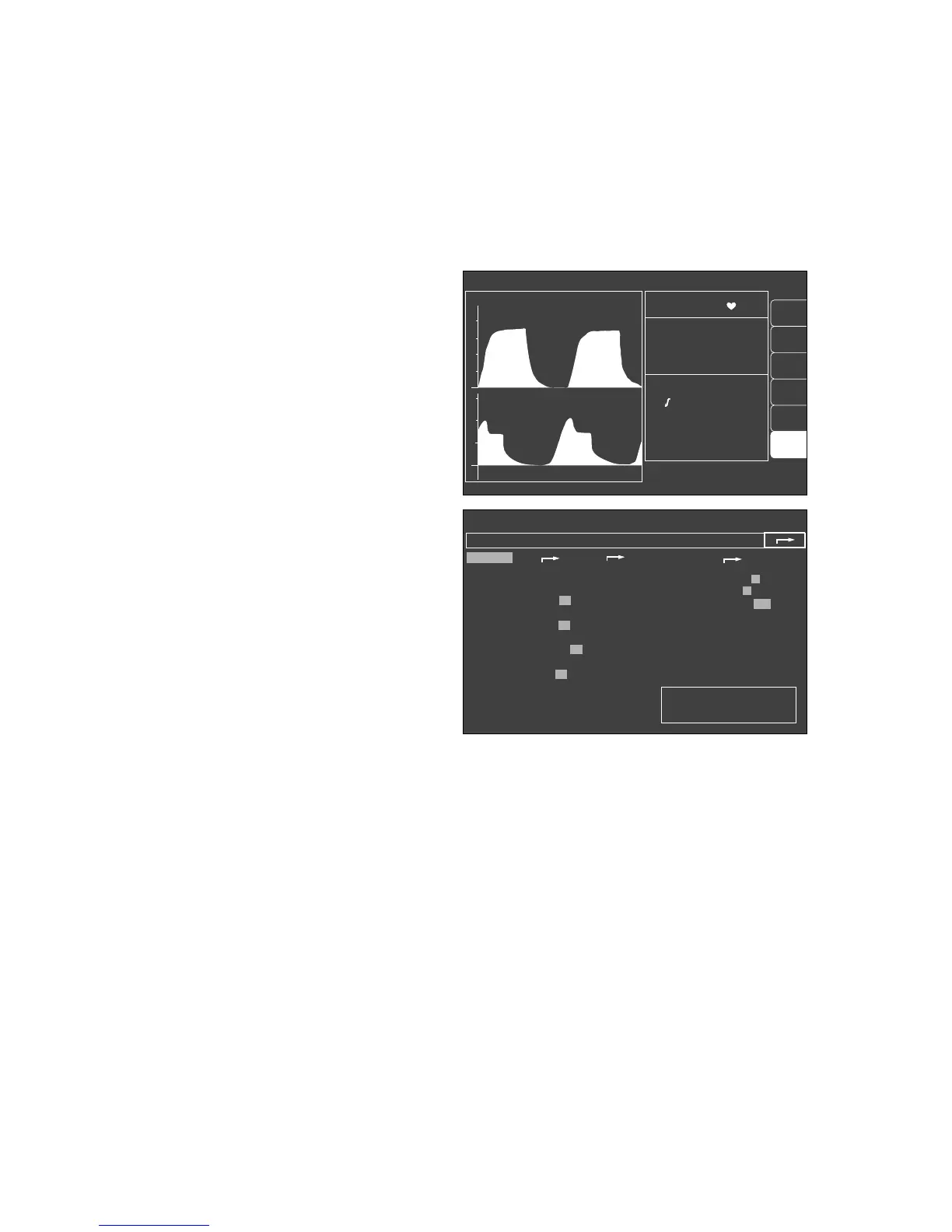

● Press the softkey »config.«
The configuration menu is displayed. The values
shown against a grey background currently apply.
● Turn the rotary control to move the cursor frame as
in the standby configuration menu. Refer to the
description of that menu for further details (page 51
onwards).
set
– pulse tone For setting the volume.
– alarm tone For setting the volume.
– mode Change over between adult and
neonate modes.
– parameters For setting the parameters, see
page 53.
– record For determining which event
triggers an entry in the record list or
printout on the printer, see page 53.
– activate defaults Activates the configured default
settings (see page 51 onwards).
calibrating
– calibration O2 and flow sensor, as well as
others.
warning
– default Activates all default alarm limits
configured in »standby«.
– CO2 Activates/deactivates all CO2
alarms (including »Apnoea«).
– SpO2 Activates/deactivates all SpO2
alarms.
– HLM mode Activates/deactivates the heart/lung
machine monitoring mode. See
page 68.
– Pmax »on« Ventilator pressure limitation
generates a caution message.
»off« Ventilator pressure limitation
generates an advisory message.
The »off« setting is recommended
for ventilation with intentional
pressure limitation.
– anaesth. gas see »Configuring monitor functions
in « standby »« on page 56.
