Curve selection
Only possible in the standard screen!
A second curve for the bottom half of the screen can be
selected from the menu presented here to complement
the CO2 concentration curve (CO2) which is always
displayed.
The following can be selected:
– PAW Airway pressure
– flow Expiratory flow
– Volumeter Display showing the minute ventilation plus
Paw and VT as a bar graph. See below.
– Pleth. Plethysmogram (optional)
– O2 Oxygen concentration of the breathing gas
(optional).

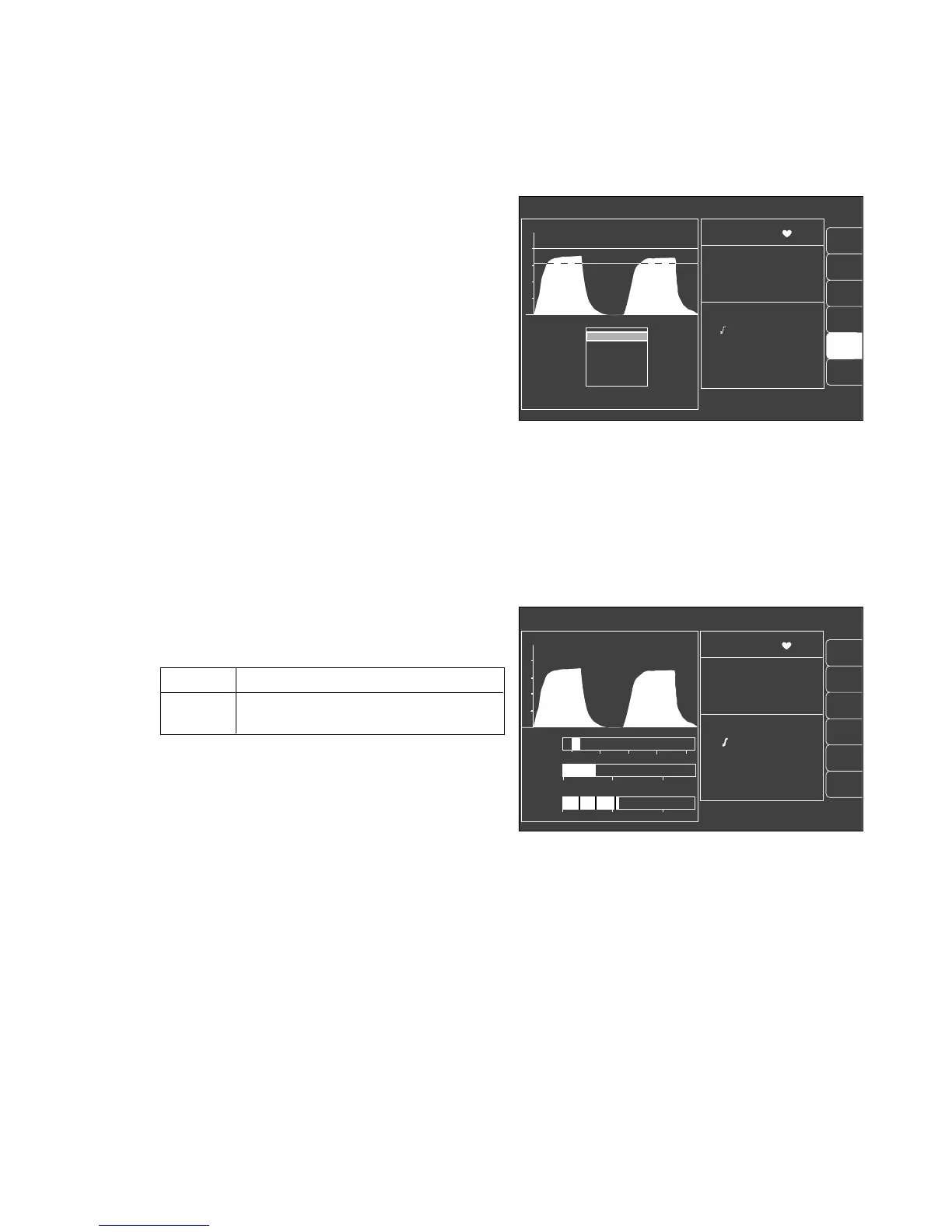

● Press the softkey »curve«.
A selection menu appears. The option with grey
background is currently set.
● Use the rotary control to move the cursor frame to the
designation of the required curve.
● Press rotary control. The selected curve is shown on
the screen.
Volumeter function
Depending on mode, the length of the bar represents a
maximum measured value:
Mode Tidal volume VT Minute ventilation
Neonate 0.2 L 2 L/min
Adult 1.0 L 10 L/min
Pressure indication:
– The airway pressure is shown in the upper bar graph.
Tidal volumeter:
– The expiratory volume of a breath (VT) is indicated
graphically by the middle bar and numerically on the
left.
Minute volumeter:
– The minute volume represented by the bottom bar
runs for 60 seconds, during which the tidal volume is
summed.
The time expired is shown in seconds above the bar,
the total volume appearing on the left. The individual
breaths are separated by segments in the bar graph.
The volumeter automatically stops and outputs an
advisory tone after 60 seconds. The measured values
are displayed for 4 minutes and are then erased.
To start volumeter:
● Press rotary control. If the rotary control is pressed
again during the 60 seconds, the values will be erased
and the volumeter restarted.
