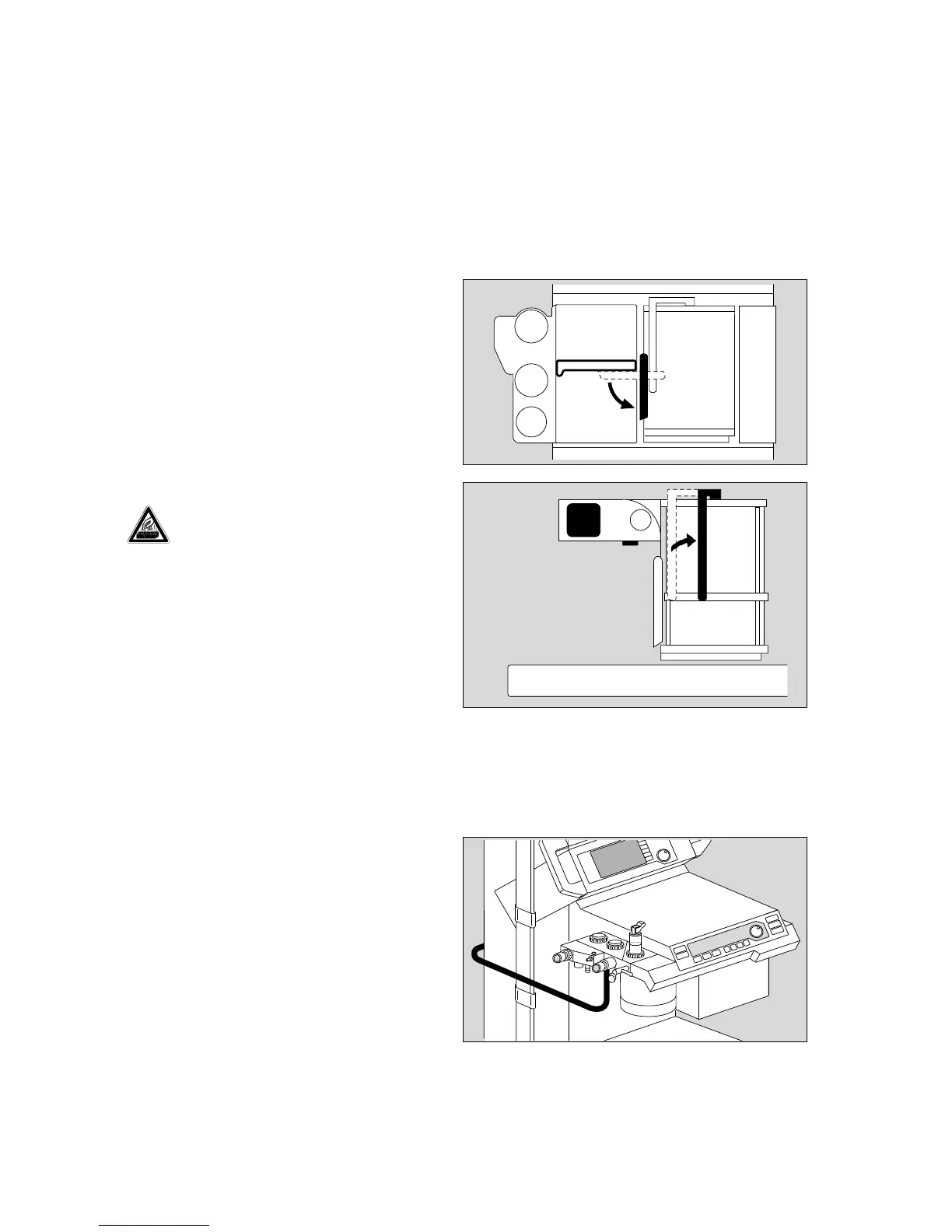

Stripping down machine
Swing up table top to remove piston pump:
(only possible in »standby«)
1 Swing lever as far as possible to unlock.
2 Hold breathing system by handle and lift out.
Do not damage flat seals – avoid contact with sharp
edges. It must be put down so that the sealing
elements are not subject to constant pressure!
3 Caution!
Temperature of hotplate for breathing
system equals approx. 60 °C.
4 Handle pointing up – lift out piston pump
– do not use force –
Do not damage flat seals – avoid contact with sharp
edges. It must be put down so that the sealing
elements are not subject to constant pressure!
1 Swing lever back to original position, otherwise table
top cannot be reclosed.
Remove anaesthetic gas scavenging system
Refer to separate Instructions for Use for anaesthetic gas
scavenging system.
● Unplug anaesthetic gas scavenging hose from
anaesthetic gas scavenging system.
5 Press button to unlock hose connector and pull
downwards. Hose remains on connector.
Care
Stripping down machine
Remove anaesthetic gas scavenging system
80
1
2
3
4
5
D
