Dräger Cato - Operating Elements and Displays on the Gas and Anaesthetic Agent Measuring Tube Bank

111
What's what

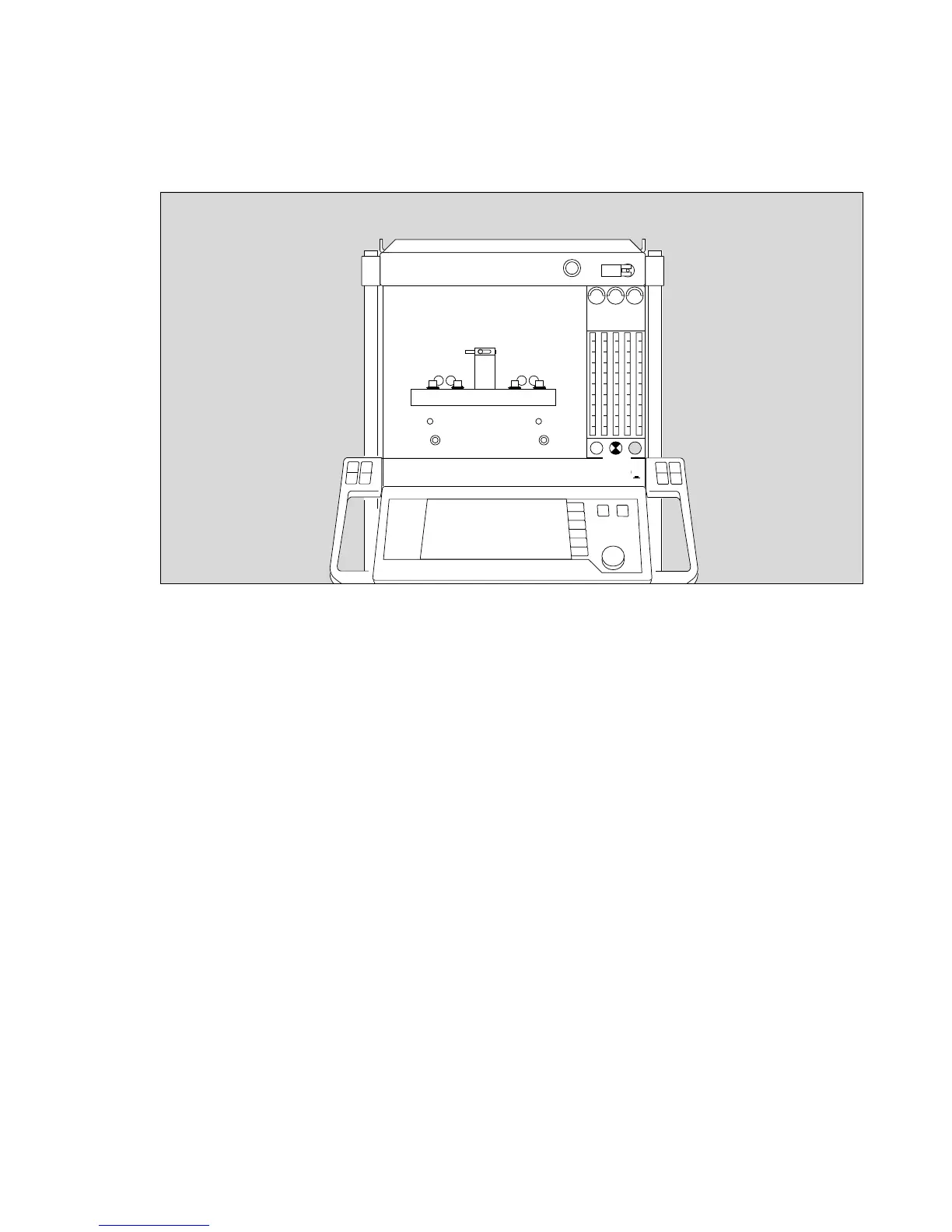

Operating elements and displays on the gas and
anaesthetic agent measuring tube bank
1 Pressure gauge for O2, AIR, N2O
2 Flow measuring tubes for O2, AIR, N2O
3 Delivery valves for O2, AIR, N2O
4 N2O / AIR changeover
5 Key for O2
6 Optical code reader for Vapor recognition
7 Vapor connection
8 Supporting pin
9 Whistle for O2 shortage signal
