Parameters
The settings for the following parameters are defined via
this menu:
– SpO2-measurement on • off
– sidestream
measurement O2 on • off
– sample rate 60 • 200 mL/min
– CO2 units mmHg • kPa • % by volume
Record
This menu is used to define which event triggers an
automatic entry in the record list or printout on the
on-line printer:
– time intervall Entry upon expiry of a fixed time
interval in minutes.
– NiBP started Entry after every NiBP
measurement with new results.
– warning started Entry is made whenever a warning
has been triggered.
– caution started Entry is made whenever a caution
has been triggered.
Interfaces
The interface for data transfer (Dräger MEDIBUS RS 232)
and the printer port are configured here:
– baud rate Transmission rate (can be varied,
see Instructions for Use of the device
to be connected)
– parity Cannot be changed in MEDIBUS and
is merely displayed for information.
– data bits Cannot be changed in MEDIBUS and
is merely displayed for information.
– stop bits Cannot be changed in MEDIBUS and
is merely displayed for information.
– protocol Allows the printer port to be used as
a second MEDIBUS interface.
53

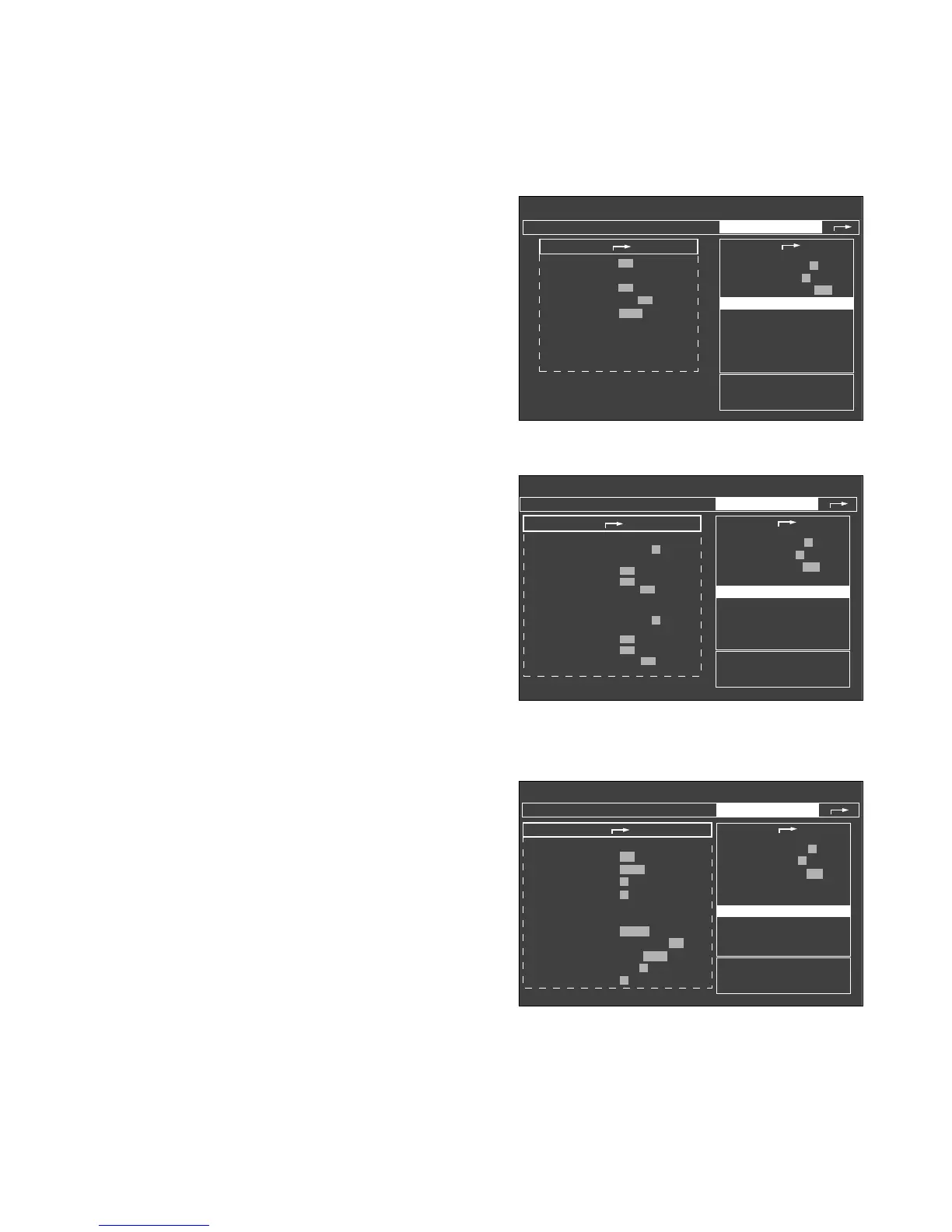

Monitor functions
Configuring monitor functions in »standby«
Parameters, Record, Interfaces
Alarms inactive!
anaesth. gas
warning calibrating
Menu for configuration
of Medibus and printer
ports.
Standby / Configuration
defaults
pulse tone
0 1 2 3 4 5 6 7 8 9
alarm tone 1 2 3 4 5 6 7 8 9
mode adult Neo.
parameters
record
interfaces
alarm limits
curves
basic configuration
RS 232 (Medibus) :
baud rate
1.2 9.6
parity even
data bits 8
stop bits 1
record (printer)
protocol
printer Medibus
baud rate 1.2 2.4 4.8 9.6 19.2
parity odd even none
data bits 7 8
stop bits 1 2
Standby / Configuration
anaesth. gas
warning calibrating
SpO2 - measure. on off
sidestream
measurement O
2 on off
sample rate 60 200 mL/min
CO2 units mmHg kPa Vol%
Menu for configuration
of measurement-parameters.
Alarms inactive!
defaults
pulse to.
0 1 2 3 4 5 6 7 8 9
alarm tone 1 2 3 4 5 6 7 8 9
mode adult Neo.
parameters
record
interfaces
alarm limits
curves
basic configuration
Alarms inactive!
anaesth. gas
warning calibrating
Menu for configuration
of list and print entries.
Standby / Configuration
defaults
pulse tone
0 1 2 3 4 5 6 7 8 9
alarm tone 1 2 3 4 5 6 7 8 9
mode adult Neo.
parameters
record
interfaces
alarm limits
curves
basic configuration
list entry
time
1 2 5 10 off
intervall
NiBP started
on off
warning started on off
caution started on off
printer entry
time
1 2 5 10 off
intervall
NiBP started
on off
warning started on off
caution started on off
