Manual / Spontaneous
Before connecting a patient
● Check workstation with checklist (see page 21
onwards).
– Check that breathing system is complete
(see page 23) and
– perform leakage test (see page 31 onwards).

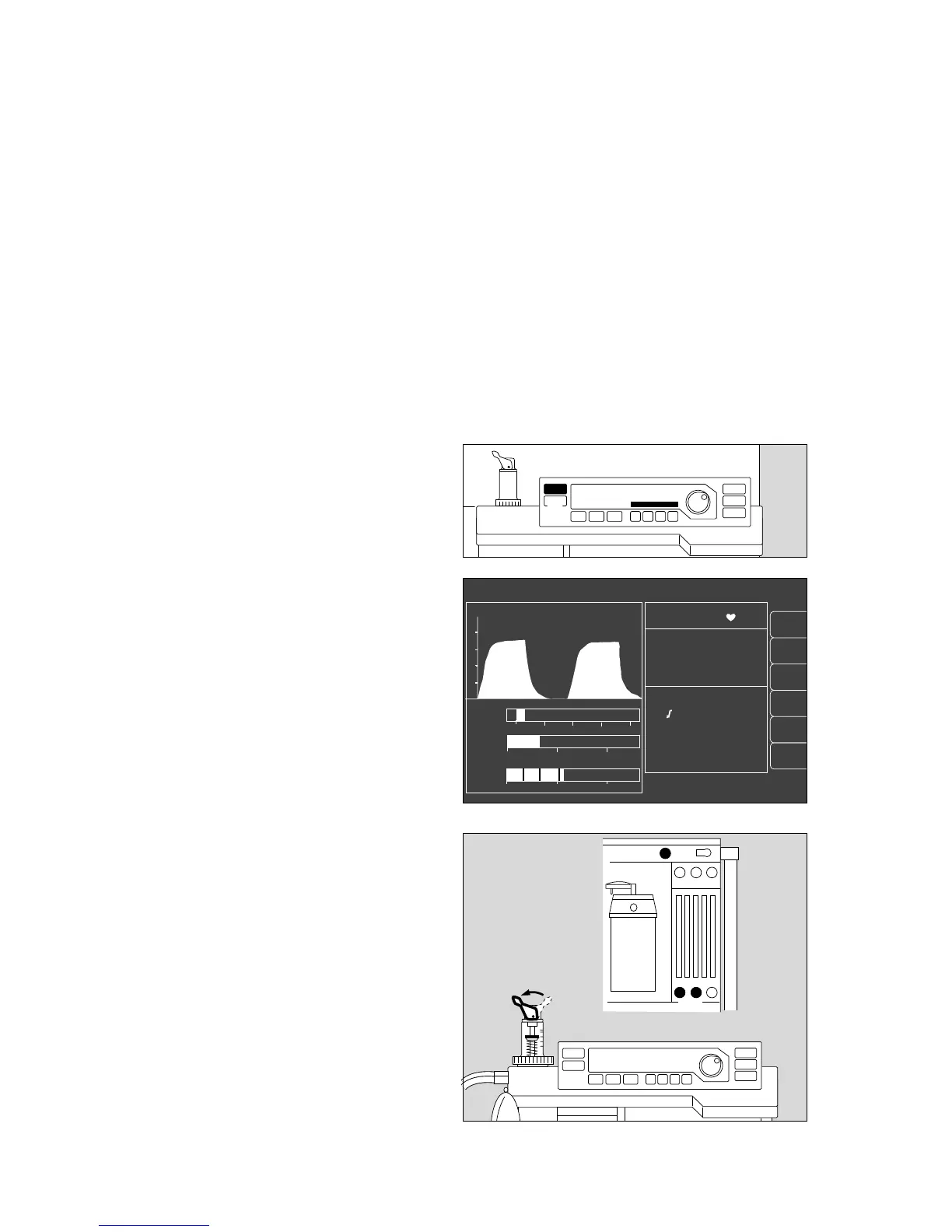

Select Manual / Spontaneous mode
1 Press »MAN SPONT« on ventilator for at least
one second (or press »MAN SPONT« and confirm
with the rotary control. Setting by Dräger Service).
2 Display in dialogue field:
MAN/SPONT
The standard screen appears with the alarm limits for
MAN/SPONT mode.
Spontaneous breathing
»PEEP« and pressure limitation »Pmax« are inactive.
3 Set pressure limiting valve APL to »SPONT«. It is
now open, regardless of the set pressure.
To fill system:
4 Press »O2 +« to inflate the breathing bag rapidly.
5 Set fresh gas –
detailed information on setting the fresh gas flow
can be found in the Annex on page 128.
