Dräger Cato - Connections on the Rear of the Monitor

113
What's what

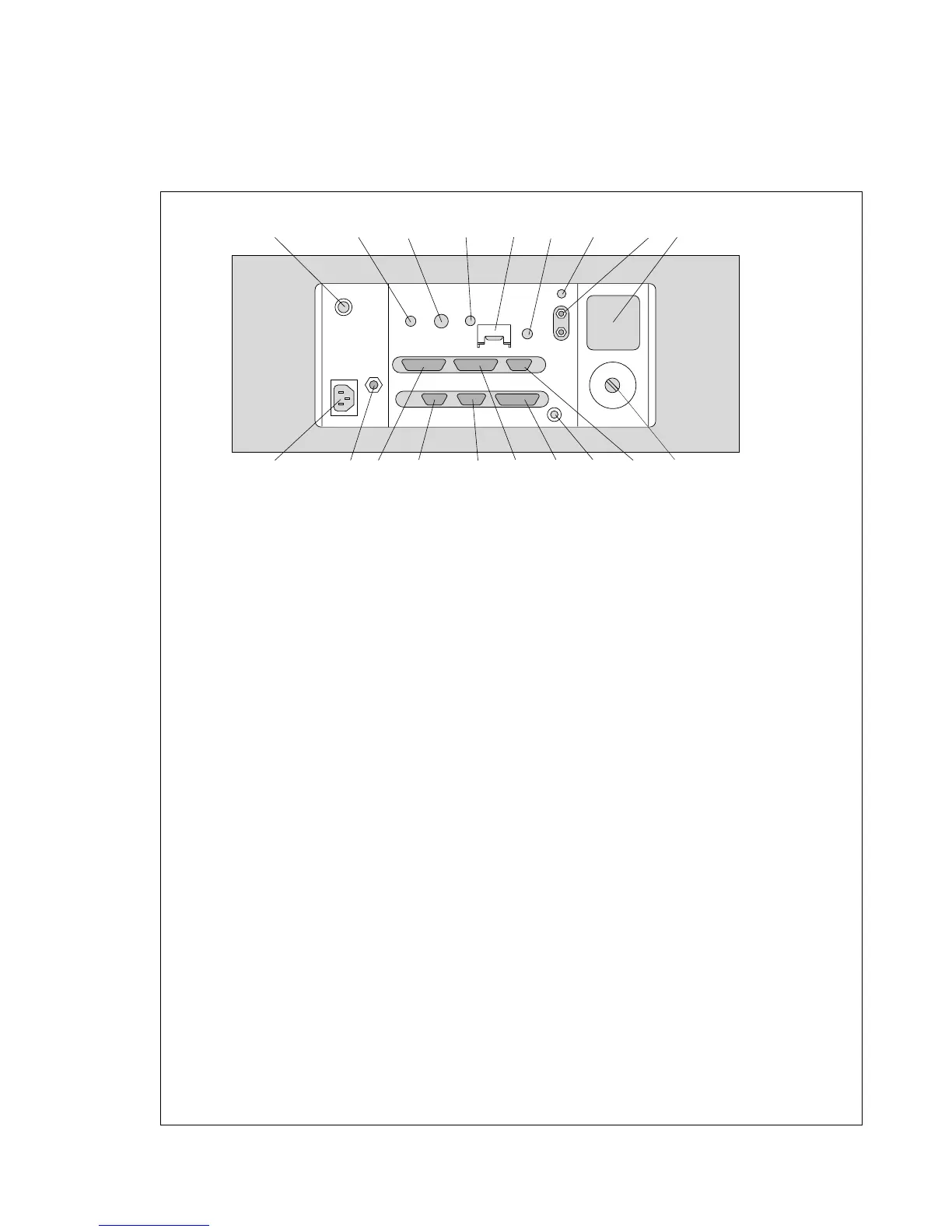

Connections on the rear of the monitor
1 Master switch
2 Connection for O2 sensor
3 Connection for flow sensor
4 Connection for temperature sensor
5 Connection for SpO2 sensor lead
6 Input for ECG/SpO2 synchronization
7 Connection for anaesthetic gas return or scavenging
8 Connection for sidestream CO2 / O2 / anaesthetic gas measurement (leads to water trap on the
left-hand side of the Cato as seen from the front. The sampling line is connected to the water trap.)
9 Cooling air filter
10 Sensor for sidestream O2 measurement
11 Analog output
12 Connection for pressure measuring line
13 Connection for ventilator
14 RS 232 interface (printer); can also be configured as RS 232 C interface (MEDIBUS)
15 Connection for identification of the anaesthetic vaporizer
16 Not used
17 RS 232 C interface (MEDIBUS; only type-tested equipment and cables may be connected
via this interface)
18 Equipotential bonding pin
19 Mains power socket
