Before Preparing a Document
Before Using This Machine
1
By adding barcode which indicates JOB number on each document, the DC-646 automatically sets
up the machine and starts the JOB. An operator can press the START key and leave.
Even if multiple types of JOBs are loaded on the feed tray at one time, the DC-646 recognizes
barcode on documents also with the built-in CCD scanner and automatically switches setup and
fi nishes the JOBs.
To use this function, each document must have barcode printed on it. Please refer to the following
instructions for specifi cations and a position of barcode.
1. Specifi cations
Barcode type: CODE-39
Start and Stop code: Required
Minimum resolving power: 0.254 mm
Thin bar: Thick bar: 1 : 2.5
Bar height: 4
mm or more
CODE-39 barcode must be used.
IMPORTANT
Document feed direction: The whole REG mark should be within 5 to 20 mm from the lead edge.
Document width direction: The whole REG mark should be within 3 to 15 mm from the right edge.
● When
REG mark spec
is set to
Bold
IMPORTANT
When there are scratches or stains in the printing range of the REG mark, the position may
not be corrected. When the read side of the document is rough and glossy, the CCD scanner
may not be able to read REG mark or barcode. (The document may diff usely refl ect light.)
When using specially treated documents ( glossy documents), print a bold REG mark on
them in advance. Then, select
BOLD
of
REG mark spec
.

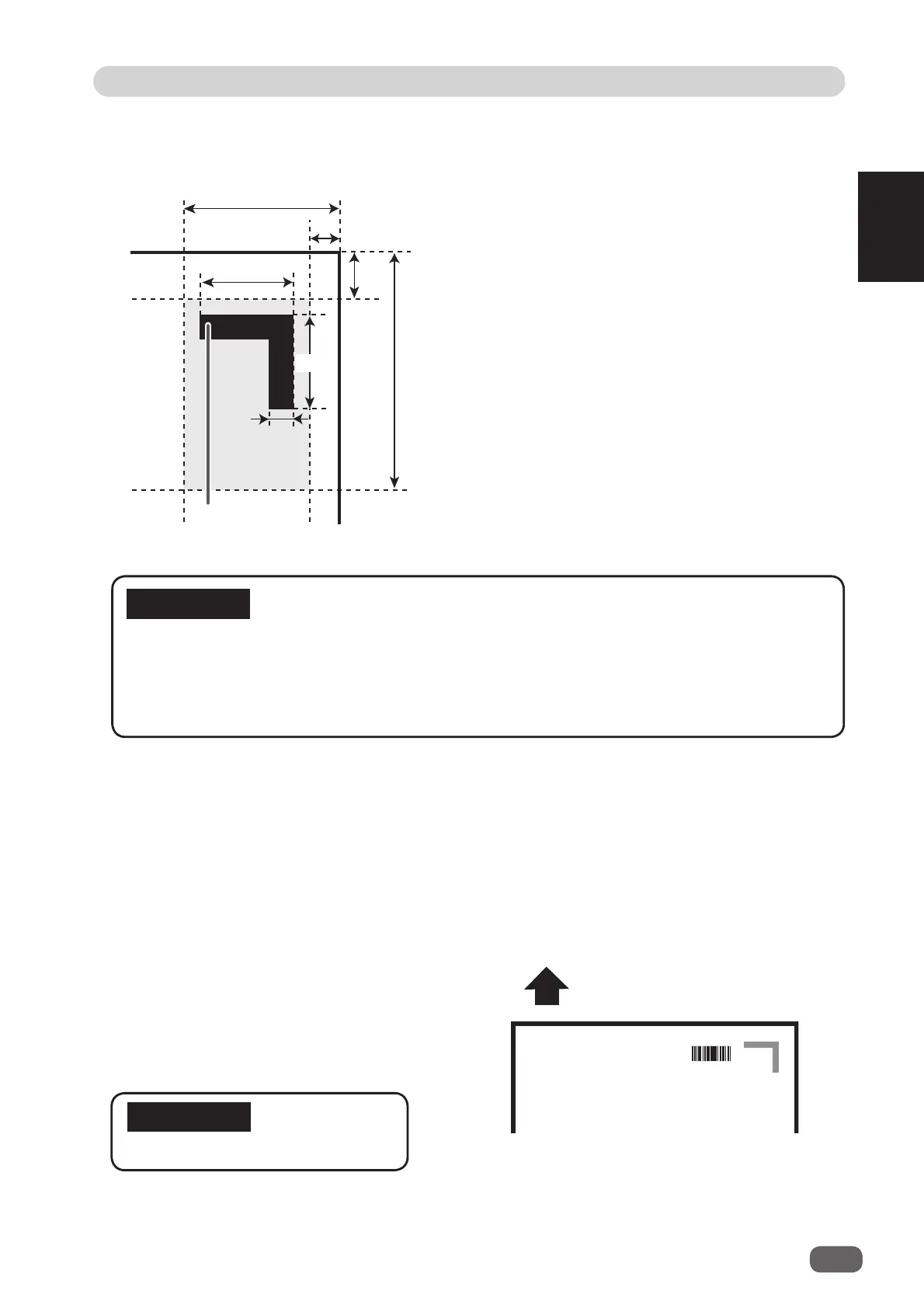

Document feed direction
Barcode (Automatic JOB selection)
15 mm
5 mm
3mm
20 mm
10 mm
10 mm
2 mm
or more
REG mark
position range
REG mark
