Set-up instructions
Operating manual 867 Version 01.0 - 12/2012 103
7.13 Pneumatic connection
7.13.1 Fitting the maintenance unit
The pneumatic connection package is available under order num-
ber 0797 003031. It consists of:
• System connection hose
(length 5 m, diameter 9 mm)
• Hose connectors and hose clamps
• Coupling socket and coupling plug
Correct setting
The system pressure for the pneumatic unit is 8 – 10 bar.

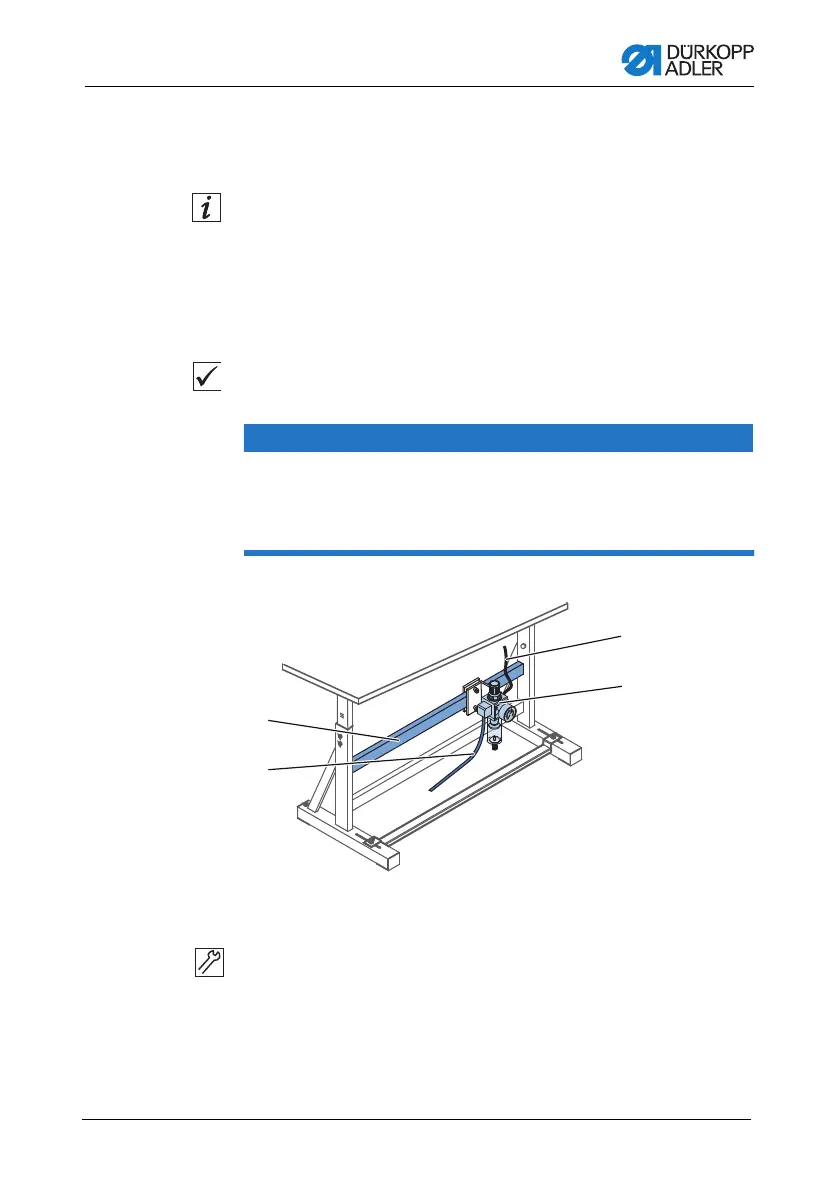

Figure 72: Fitting the pneumatic maintenance unit
1. Attach the maintenance unit (3) to the upper cross bar (1) of
the frame using the bracket, screws and clip.
2. Connect the machine tube (4) coming out of the upper section
to the maintenance unit (3) at the top right.
3. Connect the system connection tube (2) to the pneumatic sys-
tem.
Machine damage possible due to incorrect pressure.
An incorrect pressure can cause damage to the machine.
Make sure that the system pressure is set to 8 – 10 bar before
fitting the pneumatic unit.
ATTENTION
0
2
8
4
6
10
4
3
1
2
(1) - Cross bar
(2) - System connection tube
(3) - Maintenance unit
(4) - Machine tube
