DURKOPP ADLER 867 Operating Manual

Set-up instructions
Operating manual 867 Version 01.0 - 12/2012 87
7.10 Fitting the knee lever
The machine has either a mechanical or electrical knee lever,
depending on the submodel and equipment.
7.10.1 Fitting the mechanical knee lever

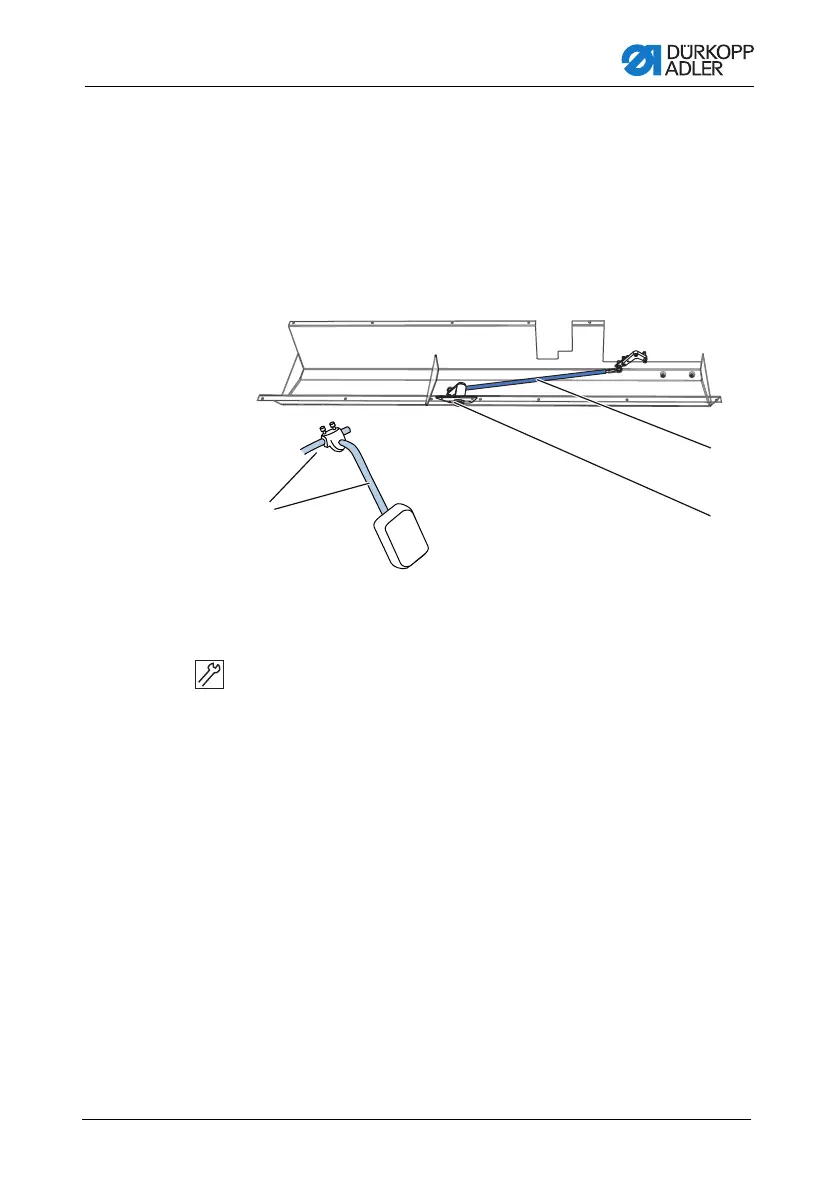

Figure 57: Fitting the mechanical knee lever
1. Fold the machine upper section back.
2. Fit the transmission rod (3) in the oil pan.
3. Screw the knee lever (1) rods together.
4. Guide the rod (1) through the hole in the oil pan (2) and connect
it to the transmission rod (3).
3
2
1
(1) - Knee lever rod (2) - Hole in the oil pan
(3) - Transmission rod

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
